1-01 WDW Electronic Universal Testing Machine

Product Features: Designed for mechanical tests up to 50 kN, including tension, compression, bending, shear, peeling, and tearing. Different test fixtures can be used to test the mechanical properties of both metallic and non-metallic materials.

Classification :

Electronic Universal Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Function:

For mechanical tests such as tensile, compressive, bending, shear, peeling, and tearing tests with a maximum force below 50kN. By selecting different test fixtures, it can complete the mechanical property testing of metallic and non-metallic materials.

Standards Compliance:

GB/T 16491 Electronic Universal Testing Machine
GB/T 2611 General Technical Requirements for Testing Machines
JJG 139 Tensile, Compressive and Universal Testing Machines
JJG 475 Electronic Universal Testing Machines
GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
GB/T 232 Metallic Materials - Bending Test Method
GB/T 7314 Metallic Materials - Compression Testing at Room Temperature
GB/T 1040 Determination of Tensile Properties of Plastics
GB/T 1041 Determination of Compressive Properties of Plastics
GB/T 9341 Determination of Flexural Properties of Plastics
GB/T 529 Vulcanized or Thermoplastic Rubbers - Determination of Tear Strength (Crescent, Angle and Test Pieces)
GB/T 528 Vulcanized or Thermoplastic Rubbers - Determination of Tensile Stress-Strain Properties

Product Features:

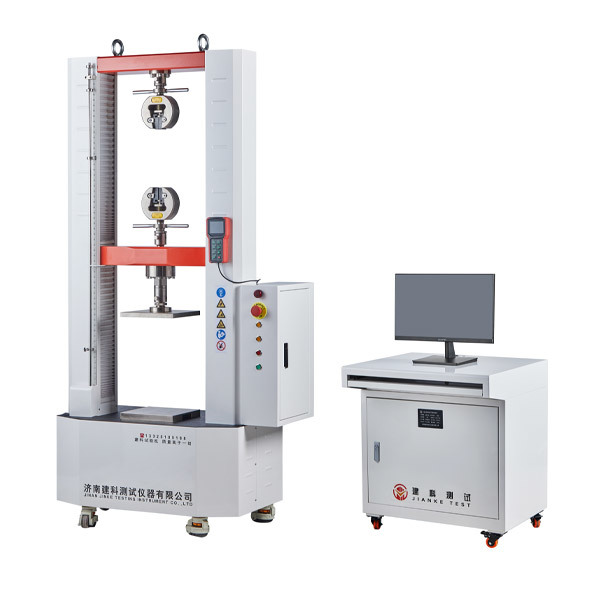

High-strength optical axis fixes the upper crossbeam and worktable, forming a high-rigidity gantry-type frame main machine.
Transmission structure consisting of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw, realizing the up and down movement of the crossbeam, and the test process is controlled by measurement and control software.
High-precision spoke-type/S-type load cell with a force measurement accuracy of 0.5 class.
A variety of complete test fixtures, connected by bolts + simple nut locking, easy to operate.
Equipped with extensometer, displacement meter, and large deformation measuring instrument to accurately measure material deformation data.
Powerful full-digital closed-loop, multi-channel measurement and control system, with various testing method standards built-in, enabling automatic control of the test process, data can be saved and exported, and can be networked with multiple companies.
The bottom of the main machine is designed with Fuma wheels/adjustable feet for easy equipment positioning and later adjustment.
Modular electrical control box for easy troubleshooting.
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light for operation status prompt, voice operation prompt, and emergency stop switch designed.

Product Parameters:

No.	Parameter	Specification
1	Maximum test force	50kN (any option below 50kN)
2	Testing machine class	0.5 class
3	Load measurement range	0.4%～100%FS
4	Relative error of indication	±0.5%
5	Test force resolution	1/±500000FS (constant resolution throughout the range)
6	Deformation measurement range	0.2%～100%
7	Force control rate adjustment range	0.005%～5%FS/S
8	Force control rate accuracy	Within ±1% of the set value when the rate < 0.05%FS; within ±0.5% of the set value when the rate ≥ 0.05%FS
9	Deformation rate adjustment range	0.005～5%FS/s
10	Deformation rate control accuracy	Within ±1% of the set value when the rate < 0.05%FS/s; within ±0.5% of the set value when the rate ≥ 0.05%FS/s
11	Maximum displacement rate	600mm/min
12	Displacement rate control accuracy	Within ±0.2% of the set value
13	Control range for constant force, constant deformation, constant displacement	0.5%～100%FS
14	Control accuracy for constant force, constant deformation, constant displacement	Within ±0.5% of the set value when the set value ≥ 10%FS; within ±1% of the set value when the set value < 10%FS
15	Maximum distance between columns	450mm
16	Maximum moving distance of crossbeam	800mm (customizable)
17	Power supply voltage	～220V±10% 50Hz (must be reliably grounded)
18	Machine power	750W
19	Main machine dimensions (LWH)	≈760x450x1800mm
20	Measurement and control cabinet dimensions (LWH)	≈700x600x750mm
21	Main machine weight	≈320kg
22	Control cabinet weight	≈30kg

Product Configuration (Subject to the final order):

Name	Content	Remarks
Load frame	High rigidity (4 columns + 2 lead screws), double space, gantry-type load frame	1 set
Drive system	AC servo motor and driver	1 set
Measurement and control system	Full-digital closed-loop, multi-channel, multi-functional, easy to operate	1 set
Load cell	50KN, spoke-type	1 piece
Handheld controller	Wired, LCD display	1 piece
Tensile fixture body	Single handle/double handle (optional), nickel-plated surface, heat-treated	1 set
Jaw	Heat-treated, blackened	1 set
Pressure plate	220*220mm, heat-treated, nickel-plated surface	1 set
Measurement and control cabinet	Upper and lower layers (can place computer host, fixtures, etc. inside)	1 set
Computer	Branded	1 set
Technical data	Instruction manual, packing list, certificate of conformity	1 set
Testing machine software	Chinese/English version (optional)	1 set

PHOTOS OF FIXTURES (SELECT AS NEEDED) :

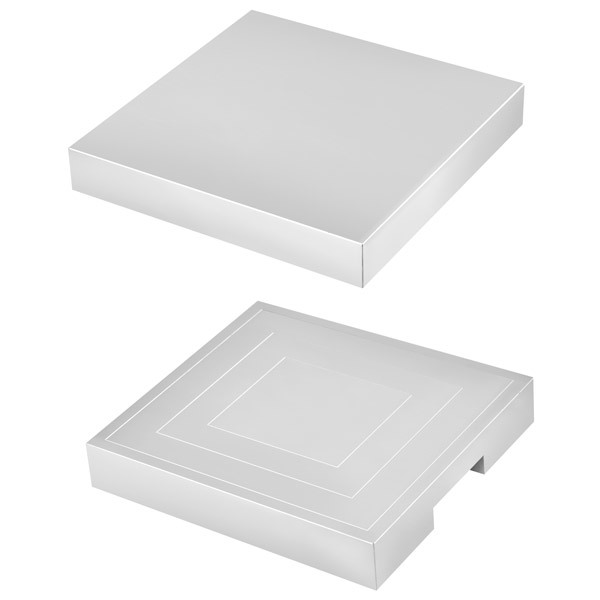

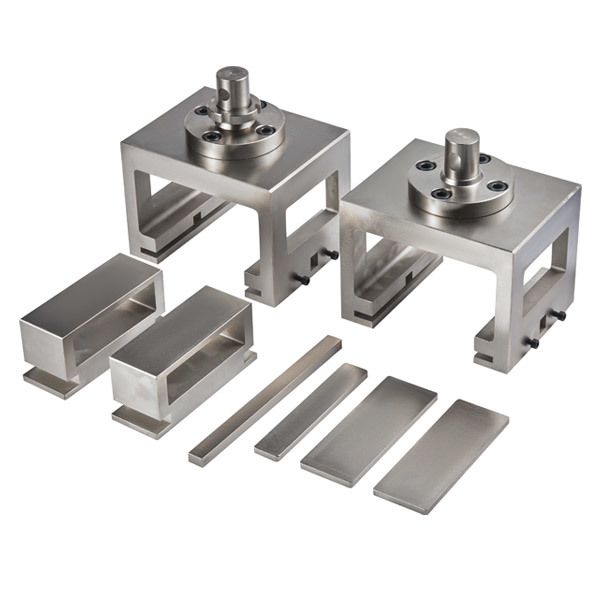

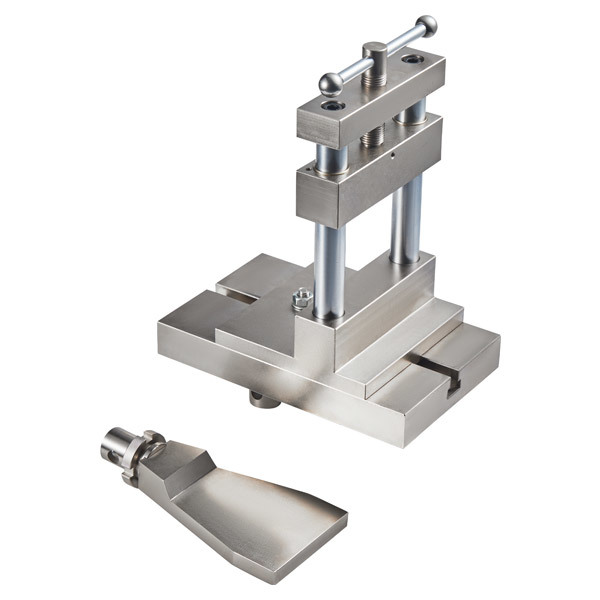

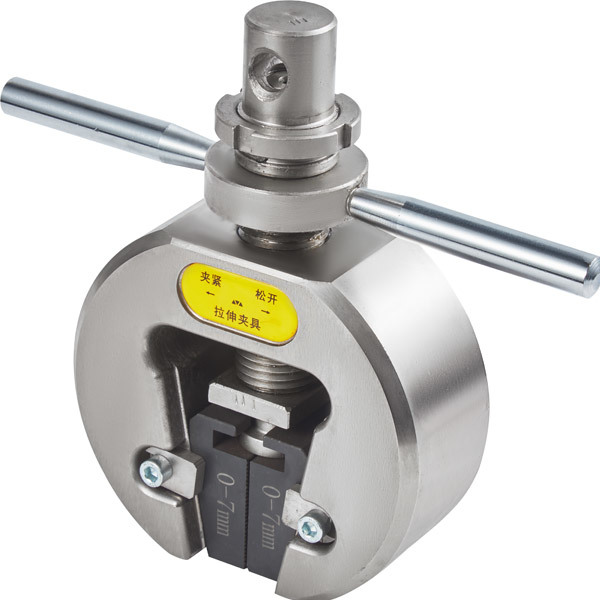

Wedge-type Tensile Grip	Lateral Extension of Insulation Profiles	Longitudinal Shear of Insulation Profiles	Compression Platen (for specimen compression strength or equipment calibration)

Design and R&D

The overall design of the universal testing machine includes systematic designs such as the mechanical framework, sensor selection, control system architecture, electrical system, software functions, and the overall appearance of the machine.

Host:

The core components of the mainframe, such as the force-bearing frame and the tooling fixtures, are precisely processed through procedures like machining centers, milling, planing, and grinding. Special parts undergo quenching and tempering treatment to ensure that the structural performance of each mainframe meets the design requirements.

Component Heat Treatment

Sheet Metal Processing:

Sheet metal processing: The sheet metal parts for the testing machine are processed through laser cutting, bending, stamping, welding, grinding, and powder coating procedures.

Quality inspection of processed parts:

The quality of each component directly affects the performance of the entire machine. Before use, each component undergoes a series of quality inspection procedures. Usually, its size, tolerance, hardness, surface treatment, etc. are inspected.

Workshop assembly:

The mainframe components, drive motor, transmission mechanism, sensors, tooling fixtures, sheet metal, etc. are strictly assembled in accordance with the company's assembly procedures, and the corresponding data are archived for easy future reference.

Debugging Phase:

Conduct various standard tests, including load accuracy, displacement accuracy, force stability, control precision, and other related calibrations.

Machine inspection and file archiving:

Overall equipment inspection: Cleanliness inspection, impact inspection, rust prevention inspection, safety label inspection, completeness of configuration, etc.

File archiving: After the overall equipment inspection is completed, record the equipment number, configuration information of tooling and fixtures, sensor configuration information, equipment parameter settings information, etc. Both paper and electronic versions are archived for easy future reference.

Factory inspection procedures
serial number	item	explain	"√" or "/"
1	Fixture appearance	The surface is clean, free of bumps and scratches.
2	Appearance of the mainframe	The entire surface of the machine is clean, the paint finish is free of scratches, and the crossbeam has peeling paint.
3	Equipment label	According to the order (strictly prohibiting any contamination during the pasting process)
4	Host company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
5	Computer monitoring and control cabinet company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
6	Workbench rubber pad	Placed on the mainframe
7	Computer control cabinet rubber pad	Placed inside the control and measurement cabinet
8	Data cable label	Motor wires, encoder wires, power wires, sensor wires, board card wires, etc.
9	Data cable winding	The board card cables are tangled with the RS232 cables, and the motor cables are tangled with the encoder cables.
10	Force sensor connector	Each S-type sensor is equipped with a connector.
11	Pin specification and quantity	20KN model: φ12, 3 pieces; with S-type sensor: φ12, 4 pieces
12	Overall inspection of the box panel fastening screws
13	Overall inspection of the fastening screws of the distribution box
14	Cleaning inside of the distribution cabinet and computer cabinet	Strictly prohibit any remaining connection terminals or similar items.
15	Computer and Accessories Configuration	Computer, monitor, keyboard, mouse, mouse pad
16	Appearance of computer accessories
17	Packing list verification
18	Attached is the packaging.	Pack properly and protect from surface scratches
19	Computer packaging	Clean and undamaged
20	Mainframe packaging	Safety Loading and Unloading Sign
Inspector (Signature):
Date：
Form filling instructions: Mark "√" for "Pass Inspection", mark "√" for "Pass Inspection of Accessories" on the packing list, leave blank if no such item exists, and submit it to the warehouse for filing after self-inspection is completed.

Packaging And Delivery

Product Application

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.

Q: Can we get the some samples? Any charges?

A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost

Electronic Universal Testing Machine
