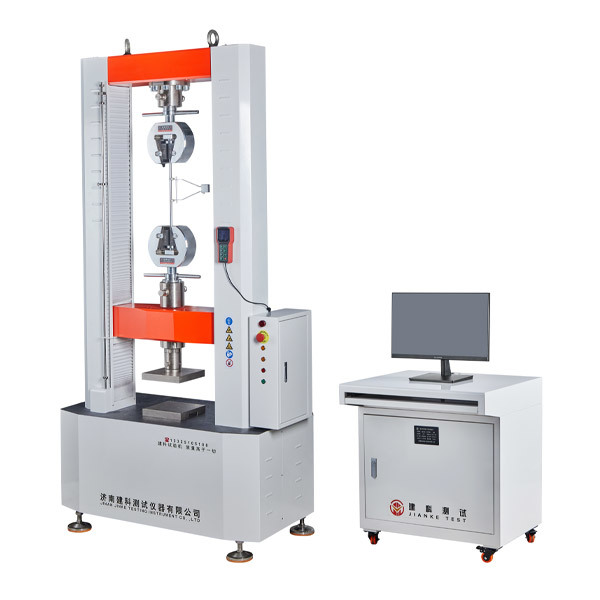

1-02 WDW Electronic Universal Testing Machine

It is used for mechanical tests such as tension, compression, bending, shearing, peeling, and tearing with a maximum force of less than 300kN. Different test fixtures can be used to complete mechanical property tests of metal and non-metallic materials.

Classification :

Electronic Universal Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Function:

For mechanical tests such as tensile, compressive, bending, shear, peeling, and tearing tests with a maximum force below 300kN. By selecting different test fixtures, it can complete the mechanical property testing of metallic and non-metallic materials.

Standards Compliance:

GB/T 16491 Electronic Universal Testing Machine
GB/T 2611 General Technical Requirements for Testing Machines
JJG 139 Tensile, Compressive and Universal Testing Machines
JJG 475 Electronic Universal Testing Machines
GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
GB/T 232 Metallic Materials - Bending Test Method
GB/T 7314 Metallic Materials - Compression Testing at Room Temperature
GB/T 1040 Determination of Tensile Properties of Plastics
GB/T 1041 Determination of Compressive Properties of Plastics
GB/T 9341 Determination of Flexural Properties of Plastics
GB/T 529 Vulcanized or Thermoplastic Rubbers - Determination of Tear Strength (Crescent, Angle and 裤形 Test Pieces)
GB/T 528 Vulcanized or Thermoplastic Rubbers - Determination of Tensile Stress-Strain Properties

Product Features:

High-strength optical axis fixes the upper crossbeam and worktable, forming a high-rigidity gantry-type frame main machine.
Transmission structure consisting of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw, realizing the up and down movement of the crossbeam, and the test process is controlled by measurement and control software.
High-precision spoke-type/S-type load cell with a force measurement accuracy of 0.5 class.
A variety of complete test fixtures, connected by bolts + simple nut locking, easy to operate.
Equipped with extensometer and displacement meter to accurately measure material deformation data.
Powerful full-digital closed-loop, multi-channel measurement and control system, with various testing method standards built-in, enabling automatic control of the test process, data can be saved and exported, and can be networked with multiple companies.
The bottom of the main machine is designed with Fuma wheels/adjustable feet for easy equipment positioning and later adjustment.
Modular electrical control box for easy troubleshooting.
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light for operation status prompt, voice operation prompt, and emergency stop switch designed.

Product Parameters:

1	Maximum Test Force	100KN	200KN	300KN
2	Testing Machine Class	Class 0.5
3	Load Measurement Range	0.4%～100%FS
4	Relative Indication Error	±0.5%
5	Test Force Resolution	1/500000 FS (Constant resolution throughout the range)
6	Deformation Measurement Range	0.2%～100%
7	Force Control Rate Adjustment Range	0.005%～5%FS/S
8	Force Control Rate Accuracy	When rate < 0.05%FS: within ±1% of set value; When rate ≥ 0.05%FS: within ±0.5% of set value;
9	Deformation Rate Adjustment Range	0.005～5%FS/s;
10	Deformation Rate Accuracy	When rate < 0.05%FS/s: within ±1% of set value; When rate ≥ 0.05%FS/s: within ±0.5% of set value;
11	Maximum Displacement Rate	500mm/min
12	Displacement Rate Accuracy	Within ±0.2% of set value;
13	Constant Force/Deformation/Displacement Control Range	0.5%～100%FS
14	Constant Force/Deformation/Displacement Control Accuracy	When set value ≥ 10%FS: within ±0.5% of set value When set value < 10%FS: within ±1% of set value
15	Maximum Column Spacing	550mm	600mm	600mm
16	Maximum Crossbeam Travel Distance	800mm (Customizable)
17	Power Supply Voltage	～220V±10% 50Hz (Must be reliably grounded)
18	Machine Power	2200W
19	Main Machine Dimensions (LWH)	≈10205702200mm	≈11506002300mm	≈11506002300mm
20	Measurement and Control Cabinet Dimensions (LWH)	≈700x600x750mm
21	Main Machine Weight	≈1200kg	≈1500kg	≈1500kg
22	Control Cabinet Weight	Approx. 30kg

Product Configuration (Subject to the final order):

Name	Content	Remarks
Load frame	High rigidity, double space, gantry-type load frame	1 set
Drive system	AC servo motor and driver	1 set
Measurement and control system	Full-digital closed-loop, multi-channel, multi-functional, easy to operate	1 set
Load cell	100KN/200KN/300KN, spoke-type	1 piece
Handheld controller	Wired, LCD display	1 piece
Fixture body	Single handle/double handle (optional), nickel-plated surface, heat-treated	1 set
Jaw	Heat-treated, blackened	1 set
Electronic extensometer	100/25	1 piece
Pressure plate	Precision machined, nickel-plated surface, heat-treated	1 set
Measurement and control cabinet	Upper and lower layers (can place computer host, fixtures, etc. inside)	1 set
Computer	Branded	1 set
Technical data	Instruction manual, packing list, certificate of conformity	1 set
Testing machine software	Chinese/English version (optional)	1 set

Photos of Fixtures (Select as Needed):

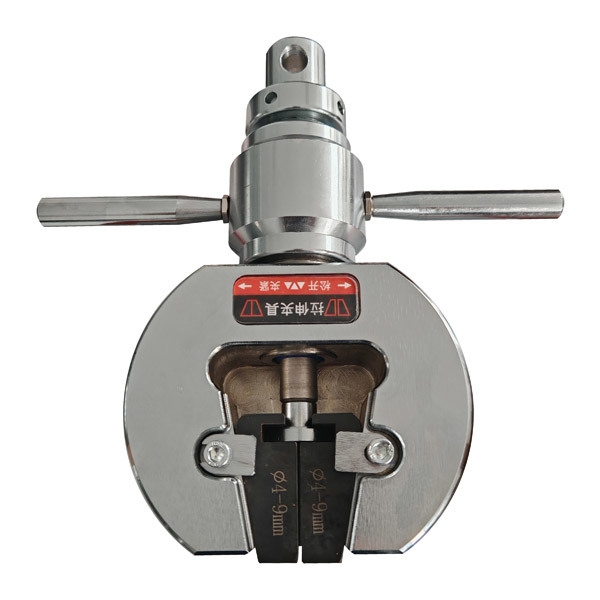

Wedge-Type Tensile Grip	Electronic Extensometer (Bound Type)	Electronic Extensometer (Self-Clamping Type)	Compression Platen (Specimen Compression Strength or Equipment Calibration)

Design and R&D

The overall design of the universal testing machine includes systematic designs such as the mechanical framework, sensor selection, control system architecture, electrical system, software functions, and the overall appearance of the machine.

Host:

The core components of the mainframe, such as the force-bearing frame and the tooling fixtures, are precisely processed through procedures like machining centers, milling, planing, and grinding. Special parts undergo quenching and tempering treatment to ensure that the structural performance of each mainframe meets the design requirements.

Component Heat Treatment

Sheet Metal Processing:

Sheet metal processing: The sheet metal parts for the testing machine are processed through laser cutting, bending, stamping, welding, grinding, and powder coating procedures.

Quality inspection of processed parts:

The quality of each component directly affects the performance of the entire machine. Before use, each component undergoes a series of quality inspection procedures. Usually, its size, tolerance, hardness, surface treatment, etc. are inspected.

Workshop assembly:

The mainframe components, drive motor, transmission mechanism, sensors, tooling fixtures, sheet metal, etc. are strictly assembled in accordance with the company's assembly procedures, and the corresponding data are archived for easy future reference.

Debugging Phase:

Conduct various standard tests, including load accuracy, displacement accuracy, force stability, control precision, and other related calibrations.

Machine inspection and file archiving:

Overall equipment inspection: Cleanliness inspection, impact inspection, rust prevention inspection, safety label inspection, completeness of configuration, etc.

File archiving: After the overall equipment inspection is completed, record the equipment number, configuration information of tooling and fixtures, sensor configuration information, equipment parameter settings information, etc. Both paper and electronic versions are archived for easy future reference.

Factory inspection procedures
serial number	item	explain	"√" or "/"
1	Fixture appearance	The surface is clean, free of bumps and scratches.
2	Appearance of the mainframe	The entire surface of the machine is clean, the paint finish is free of scratches, and the crossbeam has peeling paint.
3	Equipment label	According to the order (strictly prohibiting any contamination during the pasting process)
4	Host company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
5	Computer monitoring and control cabinet company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
6	Workbench rubber pad	Placed on the mainframe
7	Computer control cabinet rubber pad	Placed inside the control and measurement cabinet
8	Data cable label	Motor wires, encoder wires, power wires, sensor wires, board card wires, etc.
9	Data cable winding	The board card cables are tangled with the RS232 cables, and the motor cables are tangled with the encoder cables.
10	Force sensor connector	Each S-type sensor is equipped with a connector.
11	Pin specification and quantity	20KN model: φ12, 3 pieces; with S-type sensor: φ12, 4 pieces
12	Overall inspection of the box panel fastening screws
13	Overall inspection of the fastening screws of the distribution box
14	Cleaning inside of the distribution cabinet and computer cabinet	Strictly prohibit any remaining connection terminals or similar items.
15	Computer and Accessories Configuration	Computer, monitor, keyboard, mouse, mouse pad
16	Appearance of computer accessories
17	Packing list verification
18	Attached is the packaging.	Pack properly and protect from surface scratches
19	Computer packaging	Clean and undamaged
20	Mainframe packaging	Safety Loading and Unloading Sign
Inspector (Signature):
Date：
Form filling instructions: Mark "√" for "Pass Inspection", mark "√" for "Pass Inspection of Accessories" on the packing list, leave blank if no such item exists, and submit it to the warehouse for filing after self-inspection is completed.

Packaging And Delivery

Product Application

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine
