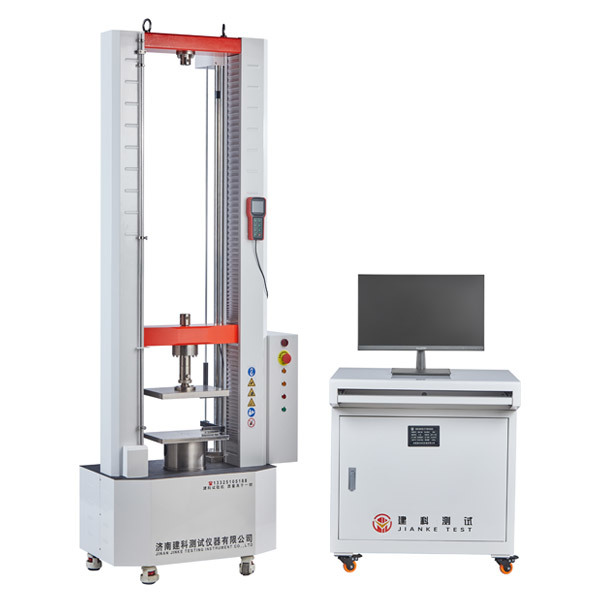

1-15 WDW Ring Stiffness and Flexibility Testing Machine

Used for testing and researching mechanical performance indicators such as ring stiffness test, ring flexibility test, flattening test, uniform load test, creep ratio test, continuous test (1000h/42d), and deflection level of various metal, non-metal, composite and special-shaped pipes with a nominal diameter of DN < 315mm.

Classification :

Electronic Universal Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Based on standards:

Standards ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.

Product Features:

High-intensity light

Axis Secures the upper crossbeam and work surface, creating a highly rigid portal frame.

A variety of comprehensive test fixtures, with pin connections and simple nut tightening for easy operation

Add

Equipped with extensometers, displacement gauges, and large deformation measuring instruments for precise material deformation measurement. Powerful, fully digital, closed-loop, multi-channel measurement and control system, including various built-in test method standards and automated control of the test process. Data can be saved and exported, and can be connected to multiple networked companies; The bottom of the main unit is designed with wheel-type wheels and adjustable leveling feet for easy setup. Preparation and subsequent adjustments;

Modular electrical control box for easy troubleshooting;

Test force overload protection

Overvoltage protection, indicator lights, voice prompts, and an emergency stop switch; Product Specifications:

1	Maximum test force	50kN (select one below 50kN)
2	Testing machine level	Level 0.5
3	Load measurement range	0.4% to 100% FS
4	Relative error of indication	±0.5%
5	Test force resolution	1/±500,000 FS (resolution remains constant throughout the entire range)
6	Deformation Measurement Range	0.2% to 100% FS
7	Force-Controlled Rate Adjustment Range	0.005% to 5% FS/S
8	Force-Controlled Rate Control Accuracy	Within ±1% of the set value when the rate is <0.05% FS; within ±0.5% of the set value when the rate is >0.05% FS
9	Deformation Rate Adjustment Range	0.005-5% FS/s;
10	Deformation Rate Control Accuracy	When the rate is less than 0.05% FS/s, it is within ±1% of the set value; When the rate is greater than 0.05% FS/s, it is within ±0.5% of the set value;
11	Displacement Rate Adjustment Range	0.01-600 mm/min;
12	Displacement Rate Control Accuracy	Within ±0.2% of the set value;
13	Constant force, constant deformation, and constant displacement control range	0.5% to 100% FS
14	Constant force, constant deformation, and constant displacement control accuracy	When the set value is ±10% FS, within ±0.5% of the set value. When the set value is <10%FS, within ±1% of the set value.
15	Maximum column spacing	450mm
16	Maximum crossbeam travel distance	1100mm
17	Internal deformation measurement device measurement range	45-1000mm
18	Power supply voltage	~220V ±10% 50Hz (reliable grounding required)
19	Machine Power	750W
20	Main Unit Dimensions (LWH)	760x450x1800mm
21	Measurement and Control Cabinet Dimensions (LWH)	Approximately 700x600x750mm
22	Main Unit Weight	350kg
23	Control Cabinet Weight	30kg

Product Configuration (Subject to final order):

Name	Content	Remarks
Load Frame	Large span, high rigidity, high stability, dual-space, streamlined portal type	1 unit
Drive System	AC servo speed control motor and driver	1 set
Measurement and Control System	Fully digital closed-loop, multi-channel, multi-functional, easy to operate	1 set
Load Cell	50KN, spoke-type load	1 unit
Handheld controller	Wired, LCD display	1 unit
Ring stiffness inner diameter deformation measuring device	Precision type	1 set
Ring stiffness rigid pressure plate	200x320mm heat-treated, nickel-plated surface	1 set
Computer	Mainstream brand	1 unit
Technical information	Instruction Manual, Packing List, Certificate of Conformity	1 set
Ring Stiffness Test Software	Chinese/English Version (Optional)	1 set

Design and R&D

The overall design of the universal testing machine includes systematic designs such as the mechanical framework, sensor selection, control system architecture, electrical system, software functions, and the overall appearance of the machine.

Host:

The core components of the mainframe, such as the force-bearing frame and the tooling fixtures, are precisely processed through procedures like machining centers, milling, planing, and grinding. Special parts undergo quenching and tempering treatment to ensure that the structural performance of each mainframe meets the design requirements.

Component Heat Treatment

Sheet Metal Processing:

Sheet metal processing: The sheet metal parts for the testing machine are processed through laser cutting, bending, stamping, welding, grinding, and powder coating procedures.

Quality inspection of processed parts:

The quality of each component directly affects the performance of the entire machine. Before use, each component undergoes a series of quality inspection procedures. Usually, its size, tolerance, hardness, surface treatment, etc. are inspected.

Workshop assembly:

The mainframe components, drive motor, transmission mechanism, sensors, tooling fixtures, sheet metal, etc. are strictly assembled in accordance with the company's assembly procedures, and the corresponding data are archived for easy future reference.

Debugging Phase:

Conduct various standard tests, including load accuracy, displacement accuracy, force stability, control precision, and other related calibrations.

Machine inspection and file archiving:

Overall equipment inspection: Cleanliness inspection, impact inspection, rust prevention inspection, safety label inspection, completeness of configuration, etc.

File archiving: After the overall equipment inspection is completed, record the equipment number, configuration information of tooling and fixtures, sensor configuration information, equipment parameter settings information, etc. Both paper and electronic versions are archived for easy future reference.

Factory inspection procedures
serial number	item	explain	"√" or "/"
1	Fixture appearance	The surface is clean, free of bumps and scratches.
2	Appearance of the mainframe	The entire surface of the machine is clean, the paint finish is free of scratches, and the crossbeam has peeling paint.
3	Equipment label	According to the order (strictly prohibiting any contamination during the pasting process)
4	Host company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
5	Computer monitoring and control cabinet company logo sticker	According to the order (strictly prohibiting any contamination during the pasting process)
6	Workbench rubber pad	Placed on the mainframe
7	Computer control cabinet rubber pad	Placed inside the control and measurement cabinet
8	Data cable label	Motor wires, encoder wires, power wires, sensor wires, board card wires, etc.
9	Data cable winding	The board card cables are tangled with the RS232 cables, and the motor cables are tangled with the encoder cables.
10	Force sensor connector	Each S-type sensor is equipped with a connector.
11	Pin specification and quantity	20KN model: φ12, 3 pieces; with S-type sensor: φ12, 4 pieces
12	Overall inspection of the box panel fastening screws
13	Overall inspection of the fastening screws of the distribution box
14	Cleaning inside of the distribution cabinet and computer cabinet	Strictly prohibit any remaining connection terminals or similar items.
15	Computer and Accessories Configuration	Computer, monitor, keyboard, mouse, mouse pad
16	Appearance of computer accessories
17	Packing list verification
18	Attached is the packaging.	Pack properly and protect from surface scratches
19	Computer packaging	Clean and undamaged
20	Mainframe packaging	Safety Loading and Unloading Sign
Inspector (Signature):
Date：
Form filling instructions: Mark "√" for "Pass Inspection", mark "√" for "Pass Inspection of Accessories" on the packing list, leave blank if no such item exists, and submit it to the warehouse for filing after self-inspection is completed.

Packaging And Delivery

Product Application

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine
