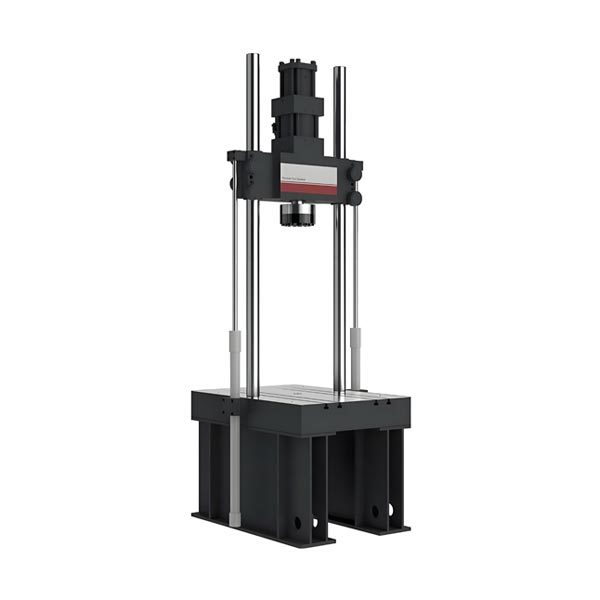

100kn-250kn Electro-Hydraulic Servo Fatigue Testing Machine
Classification :
PRODUCT DETAILS
Product Functions:
Mainly used to test the static and dynamic mechanical properties of metallic and non-metallic materials. It can perform mechanical tests such as tension, compression, tension-tension, compression-compression, and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack propagation, and fracture toughness tests. It can output various waveforms such as sine waves, triangular waves, and square waves.
Product Features:
Adopts a closed-frame structure with an actuator mounted at the bottom, featuring high frame rigidity, no reverse clearance, and good stability;
The actuator uses a bidirectional-acting oil cylinder, with a reasonable space design and convenient operation;
The lifting, locking of the moving crossbeam, and sample clamping are all operated by buttons, which are flexible and convenient.
The centering device can facilitate quick and high-precision alignment adjustment of the material testing system. A major advantage of this fixture design is that it allows angle and concentricity adjustments to be performed when the load is fully pre-tightened, thereby eliminating inaccuracies caused by minor changes that may occur during pre-tightening. In addition, since the fixture remains pre-tightened at all times, previous alignment adjustments will not be lost when minor improvements to alignment are needed.
The T-slot worktable is used for installing and testing from small materials to large subassemblies. The testing system has multiple actuator position options and a second load drive train installation position, which can be configured for a variety of applications and is very suitable for testing components and subassemblies.
Specifications and Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | Dynamic and Static Universal Material Testing Machine |
| Maximum test force (kN) | 100kN～250kN |
| Load frame | Two columns |
| Effective column width | 555mm |
| Column diameter | φ75mm |
| Test space (mm) | 1155 (excluding fixture body), 775 (including fixture body) |
| Effective measurement range | 1%-100% FS (no 档位 division throughout the range) |
| Displacement | ±75mm |
| Static test force indication accuracy | ±0.5% |
| Dynamic test force indication accuracy | Less than ±1% |
| Test frequency | 50Hz |
| Dynamic and static displacement measurement indication accuracy | ±0.5% FS |
| Resolution | 0.001mm |
| Control modes | Three modes: displacement, load, deformation |
| Force coaxiality | ≤10% |
| Host dimensions (L×W×H) (mm) | 1108×670×2950 |
| Host weight (KG) | 1100 |
| Hydraulic station dimensions (L×W×H) (mm) | 1583mm×900mm×1324mm |
| Hydraulic station weight (KG) | 900KG |
