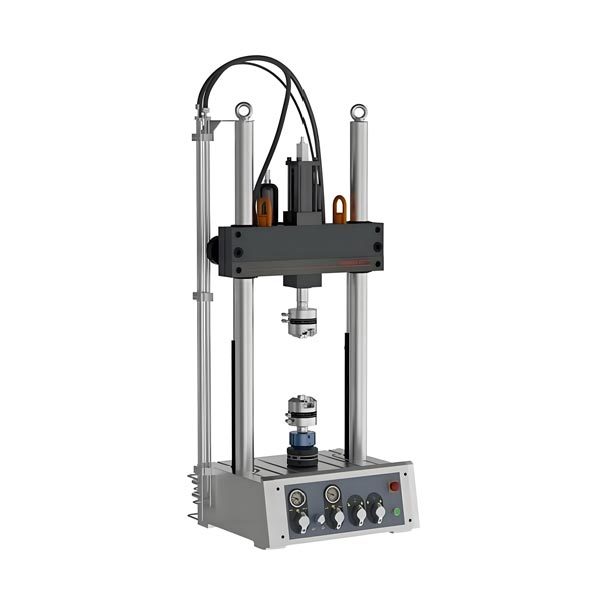

10kn-25kn Electro-Hydraulic Servo Fatigue Testing Machine

Maximum test force (kN) 10kN 25kN
Test frequency (Hz) 0.01-50 0.01-50
Effective column width (mm) 405 510

Classification :

Fatigue Testing Machine

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Parameter

Maximum test force (kN)	10kN	25kN
Test frequency (Hz)	0.01-50	0.01-50
Effective column width (mm)	405	510
Test space (mm)	600	600
Test force measurement range	1%～100% FS (dynamic)	1%～100% FS (dynamic)
Force accuracy and fluctuation	Better than 1% of indicated value; Amplitude fluctuation not exceeding ±1% F.S for each range	Better than 1% of indicated value; Amplitude fluctuation not exceeding ±1% F.S for each range
Test force resolution	1/500000 code	1/500000 code
Test force indication accuracy	±1% (dynamic); 0.5% (static)	±1% (dynamic); 0.5% (static)
Displacement measurement range	±75mm (total stroke 150mm)	±75mm (total stroke 150mm)
Displacement measurement resolution	0.001mm	0.001mm
Displacement indication accuracy	Within ±0.5% FS starting from 1% indication accuracy	Within ±0.5% FS starting from 1% indication accuracy
Deformation	Within ±0.5% starting from 2% indication accuracy	Within ±0.5% starting from 2% indication accuracy
Controller sampling frequency	≥10kHz	≥10kHz

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Computer Software Copyright Registration Certificate Electro-hydraulic Servo Universal Testing Machine Measurement and Control System V1.0

Computer Software Copyright Registration Certificate Electronic Universal Testing Machine Embedded System V1.0

Computer Software Copyright Registration Certificate Constant Temperature and Humidity System Control Software V1.0

Computer Software Copyright Registration Certificate for Interactive Universal Testing Machine Measurement and Control System V1.0

Computer software copyright registration certificate Pressure testing machine embedded system V1.0

Invention Patent Certificate Building Material Density Testing Machine

Utility Model Patent Certificate A deformation measuring device

Utility Model Patent Certificate A Glass Optical Inspection Equipment

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.

Q:Can you send samples?

A: Of course, we can provide customers with free samples and express delivery services to all over the world.
