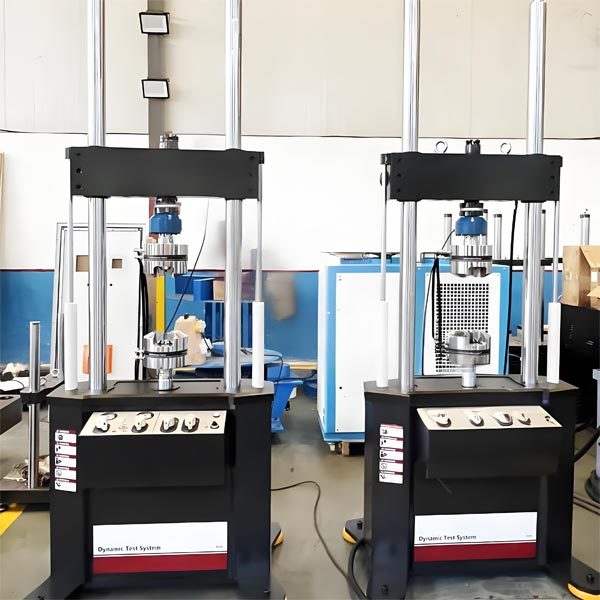

1t-25t Electro-Hydraulic Servo Fatigue Testing Machine

Mainly used to test the static and dynamic mechanical properties of metallic and non-metallic materials. It can perform mechanical tests such as tension, compression, tension-tension, compression-compression, and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack propagation, and fracture tension tests. It can output various waveforms such as sine waves, triangular waves, and square waves.

Classification :

Fatigue Testing Machine

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Functions:

Product Features:

Adopts a lower-mounted closed-frame structure with high dynamic stiffness, no reverse clearance, and good stability;

The working arm uses an elbow-acting oil cylinder, with a reasonable space design and convenient operation;

The lifting, locking of the moving crossbeam, and sample clamping are all operated by buttons, which are flexible and convenient.

The centering device can facilitate quick and pre-alignment adjustment of the material testing system. A major advantage of this fixture design is that it allows angle and concentricity adjustments to be performed when the load is fully pre-tightened, thereby eliminating inaccuracies caused by minor changes that may occur during pre-tightening. In addition, since the fixture remains pre-tightened at all times, previous alignment adjustments will not be lost when minor improvements to alignment are needed.

Specifications and Technical Parameters

Parameter
Maximum test force (kN)	50	100	250
Test frequency (Hz)	0.01-50	0.01-50	0.01-50
Effective column width (mm)	545	545	635
Test space (mm)	600	600	600
Test force measurement range	1%～100% FS (dynamic)	1%～100% FS (dynamic)	1%～100% FS (dynamic)
Force accuracy and rotation	Width indication 1%; Amplitude fluctuation not exceeding ±1% FS for each range	Width indication 1%; Amplitude fluctuation not exceeding ±1% FS for each range	Width indication 1%; Amplitude fluctuation not exceeding ±1% FS for each range
Test force resolution	1/500000 code	1/500000 code	1/500000 code
Test force indication accuracy	±1% (dynamic); 0.5% (static)	±1% (dynamic); 0.5% (static)	±1% (dynamic); 0.5% (static)
Geometric measurement range	±75mm (total stroke 150mm)	±75mm (total stroke 150mm)	±75mm (total stroke 150mm)
Geometric measurement resolution	0.001mm	0.001mm	0.001mm
Pulse indication accuracy	Within ±0.5% FS starting from 1% indication accuracy	Within ±0.5% FS starting from 1% indication accuracy	Within ±0.5% FS starting from 1% indication accuracy
Deformation	Within ±0.5% starting from 2% indication accuracy	Within ±0.5% starting from 2% indication accuracy	Within ±0.5% starting from 2% indication accuracy
Controller sampling frequency	≥10kHz	≥10kHz	≥10kHz

Usage Example:

This testing equipment can be applied in material laboratories to conduct tensile fatigue tests on aluminum alloy samples. By setting the test force to 50kN, the frequency to 10Hz, and selecting a sine wave output, it can simulate the dynamic load environment of aluminum alloys in actual service and accurately measure their fatigue life and deformation characteristics.
