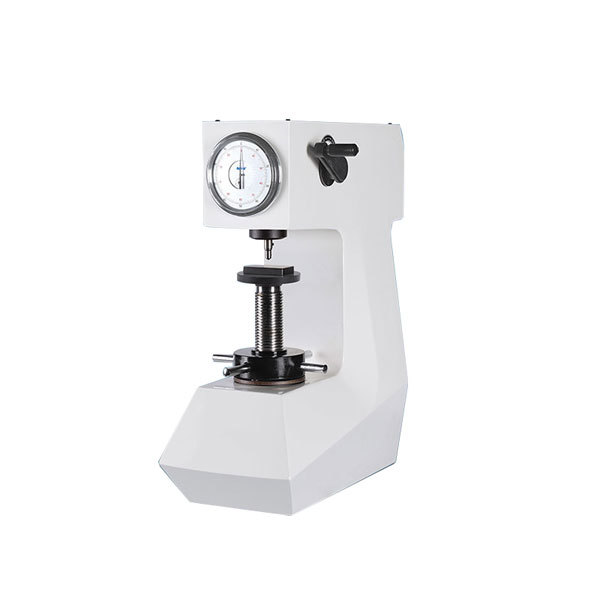

210HR-150 Rockwell hardness tester

Manual Rockwell hardness tester, reliable, durable, and with high testing efficiency; Optimized mechanical structure, small in size, and with an elegant appearance design; Direct reading on the dial, supporting HRA, HRBW, and HRC scales;

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Main Features:

Manual Rockwell hardness tester, reliable, durable, and with high testing efficiency;
Optimized mechanical structure, small in size, and with an elegant appearance design;
Direct reading on the dial, supporting HRA, HRBW, and HRC scales;
Other Rockwell scales can be optionally configured;
Precision hydraulic buffer ensures stable loading with adjustable speed;
Mechanical manual testing process, no electrical control required;
Accuracy complies with GB/T230.2, ISO6508-2, and ASTM E18 standards.

Application Range:

Determination of Rockwell hardness for ferrous metals, non-ferrous metals, and other soft metal materials;
Determination of Rockwell hardness for carbide and other high-hardness alloy materials;
Determination of Rockwell hardness for quenched, tempered, and other heat-treated materials;
Determination of Rockwell hardness for plastics, bakelite, and other non-metallic materials.

Technical Parameters:

Measuring range: 20-95HRA, 10-100HRBW, 10-70HRC
Test force: 588.4, 980.7, 1471 (N); 60, 100, 150 (kgf)
Hardness resolution: 0.5HR
Maximum allowable height of specimen: 100mm
Distance from indenter center to machine wall: 105mm
Overall dimensions: 480x270x560 (mm)
Weight: approx. 50kg

Product Configuration (subject to final order):

Serial Number	Name	Origin	Quantity
1	Small flat test table, V-type test table	-	1 each
2	Diamond cone indenter	-	1
3	1.588mm tungsten carbide alloy ball indenter	-	1
4	Standard Rockwell hardness blocks	-	3
5	Equipment files (Instruction manual, certificate of conformity, packing list)	-	1 set
