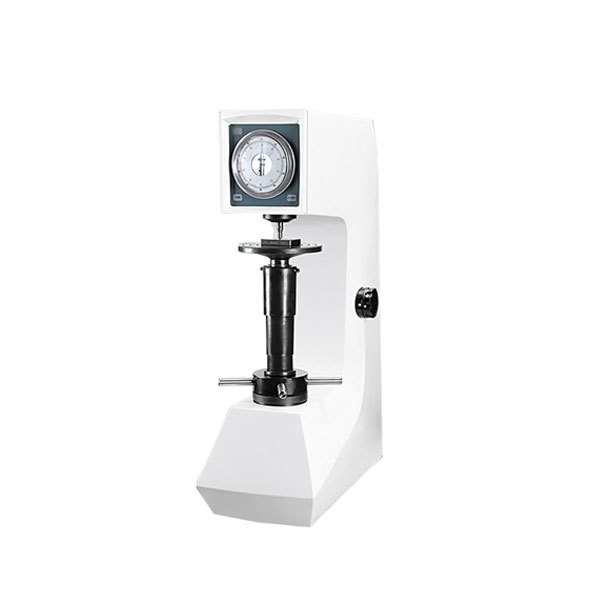

200HRD-150 Electric Rockwell hardness tester

Optimized mechanical structure with a diamond-shaped appearance design; Sturdy structure, good rigidity, reliable, durable, and high testing efficiency; Automated testing process, free from manual operation errors;

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Main Features:

Optimized mechanical structure with a diamond-shaped appearance design;
Sturdy structure, good rigidity, reliable, durable, and high testing efficiency;
Automated testing process, free from manual operation errors;
Possesses 2 national patents;
Direct reading on the dial, supporting HRA, HRBW, and HRC scales;
Other Rockwell scales can be optionally configured;
Accuracy complies with GB/T230.2, ISO 6508-2, and ASTM E18 (USA).

Application Range:

Determination of Rockwell hardness for ferrous metals, non-ferrous metals, and other soft metal materials;
Determination of Rockwell hardness for carbide and other high-hardness alloy materials;
Determination of Rockwell hardness for quenched, tempered, and other heat-treated materials;
Determination of Rockwell hardness for plastics, bakelite, and other non-metallic materials.

Technical Parameters:

Measuring range: 20-95HRA, 10-100HRBW, 10-70HRC
Test force: 588.4, 980.7, 1471 (N); 60, 100, 150 (kgf)
Maximum allowable height of specimen: 210mm
Distance from indenter center to machine wall: 165mm
Resolution: 0.5HR
Overall dimensions: 522x225x729 (mm)
Weight: approx. 98kg

Product Configuration (subject to final order):

Serial Number	Name	Origin	Quantity
1	Large flat test table	-	1
2	Small flat test table	-	1
3	V-type test table	-	1
4	Diamond cone indenter	-	1
5	1.588mm tungsten carbide alloy ball indenter	-	1
6	Standard Rockwell hardness blocks	-	5
7	Equipment files (instruction manual, certificate of conformity, packing list)	-	1 set
