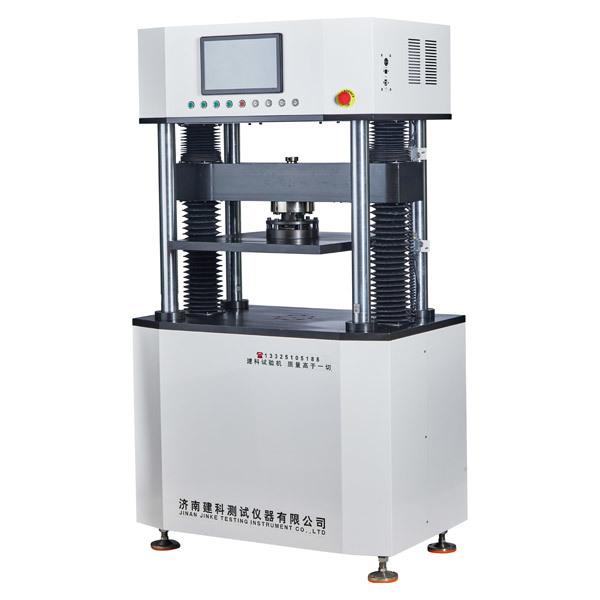

CP-600-A Fully Automatic Waterproof Material Prototyping Machine

Suitable for cutting and sampling of various waterproof rolls, rubber, coatings, plastics, films, and other materials using a cutter. It is also applicable for testing mechanical properties such as compression, bending, and flexural resistance of building materials.

Classification :

Special Testing Machine Series

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 528 Vulcanized Rubber or Thermoplastic Rubber - Determination of Tensile Stress-Strain Properties;

GB/T 529 Vulcanized Rubber or Thermoplastic Rubber - Determination of Tear Strength (Crescent, Right Angle and裤形 Test Pieces);

Main Features:

Maximum cutting force up to 10 tons, capable of cutting multiple samples at one time with high work efficiency;

Automatic return after cutting, easy to operate;

Transmission structure: servo motor + synchronous belt + pulley + precision gapless ball screw;

High-strength optical axis fixes the upper beam and worktable, forming a high-rigidity gantry frame main machine;

High-precision spoke-type sensor with 0.5-level force measurement accuracy;

Corresponding cutting force can be set according to different materials to extend the service life of the cutter;

The cutter is precision-processed with high manganese steel material, with a height error of ±0.1mm, ensuring the success rate of cutting multiple samples at one time;

Adjustable feet are designed at the bottom of the main machine for easy equipment positioning and later adjustment;

Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light for operation status prompt, voice operation prompt, and emergency stop switch designed;

Product Parameters:

Serial Number	Item	Parameters
1	Maximum test force	100KN
2	Testing machine level	0.5 level
3	Net size of worktable	600×600mm
4	Maximum space of pressure plate	300mm
5	Power supply and motor power	220V, 1.5KW
6	Main machine dimensions (length×width×height)	1000×600×1800mm
7	Main machine weight	Approximately 800kg

Product Configuration (Subject to final order):

Name	Content	Remarks
Load frame	High rigidity (120KN non-deformable), gantry type load frame	1 set
Drive system	AC servo motor and driver	1 set
Measurement and control system	Full digital closed-loop, multi-channel, multi-functional, easy to operate	1 set
Force sensor	100KN spoke type	1 piece
Cutter	Dumbbell type I, high manganese steel material, 115×6mm	5 pieces
Computer	Brand	1 set
Technical data	Instruction manual, packing list, certificate of conformity	1 set
Testing machine software	Chinese/English version (optional)	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
