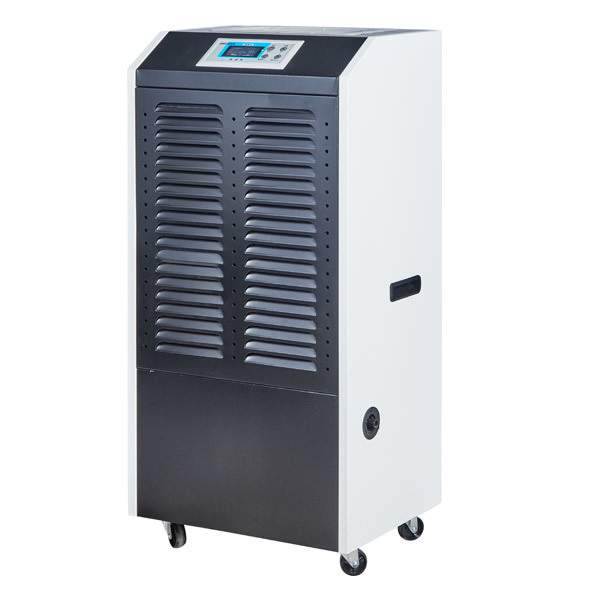

DH-8138B Dehumidifier

Constant temperature and humidity control system is used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Classification :

Test Environment Temperature and Humidity

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Constant temperature and humidity control system is used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Product Features:

Display mode: LCD displays humidity RH10-95% randomly.

Humidity control: Microcomputer control with 1% humidity freely set and controlled (the computer board has a power-off memory function).

Defrosting function: Microcomputer intelligent control with automatic defrosting, suitable for low-temperature environments.

Compressor: Adopts international brand rotary compressor with low noise, reliable operation and high energy efficiency ratio.

Safety protection: Equipped with compressor three-minute delay protection, sensor failure indication with error codes and other devices.

Refrigeration system: Uses high-efficiency copper sleeve aluminum fin heat exchanger, which has a compact structure, good pressure resistance and high heat exchange efficiency.

Fan design: Adopts special centrifugal fan system for air conditioners, featuring large air volume, low friction, low noise and long service life.

Drainage method: Continuous drainage, with a matching hose of inner diameter Φ15mm.

Movement method: Equipped with universal casters at the bottom.

Product Parameters:

Serial Number	Item	Parameters
1	Maximum dehumidification capacity	138 liters/day
2	Circulating air volume	1000 m³/h
3	Dehumidification area	100-200 square meters (with a floor height of 3 meters)
4	Refrigerant	R22
5	Air filtration	Primary efficiency nylon filter
6	Drain outlet	Continuous drainage (equipped with Φ15mm inner diameter hose)
7	Overall dimensions	480×440×870 (mm)
8	Operating environment temperature	5～38℃
9	Power supply	AC220V/50Hz
10	Power	1600W
11	Net weight	≈50KG

Product Configuration:

Serial Number	Accessory Name	Brand	Quantity
1	Main unit	Jianke	1 set
2	Drain pipe		1 piece
3	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
