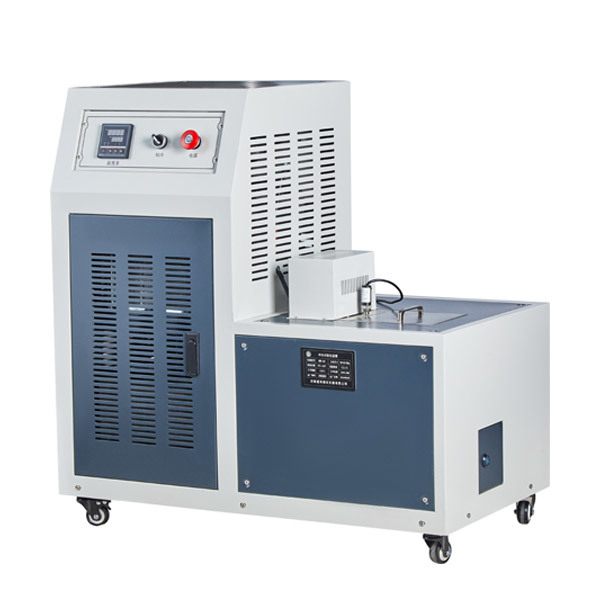

DWC-60 Impact Test Low Temperature Chamber

Used to provide a cooling environment for V-type and U-type metal impact specimens, ensuring that low-temperature impact specimens of metallic materials reach the specified temperature.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used to provide a cooling environment for V-type and U-type metal impact specimens, ensuring that low-temperature impact specimens of metallic materials reach the specified temperature.

Standards Compliance:

GB/T 229 Metallic Materials - Charpy Notch Impact Test Method

Product Features:

Adopts imported cascade refrigeration compressor technology with cyclic stirring, featuring fast cooling speed and uniform temperature;

Equipped with a digital display instrument, enabling automatic temperature control, automatic timing, automatic alarm, and has a large capacity;

Product Parameters:

Serial Number	Item	Technical Indicators
1	Temperature control range	0℃～-60℃ (ambient temperature ≤25℃)
2	Constant temperature accuracy	<±0.5℃
3	Cooling rate (＋30℃～0℃)	Approximately 1.5℃/min (ambient temperature ≤25℃)
4	Cooling rate (0℃～-20℃)	Approximately 1.2℃/min (ambient temperature ≤25℃)
5	Cooling rate (-20℃～-30℃)	Approximately 1℃/min (ambient temperature ≤25℃)
6	Cooling rate (-30℃～-40℃)	Approximately 0.8℃/min (ambient temperature ≤25℃)
7	Cooling rate (-40℃～-60℃)	Approximately 0.7℃/min (ambient temperature ≤25℃)
8	Capacity of specimens	>60 (impact specimen size: 10×10×55mm)
9	Timing range and resolution	1 second～99 minutes, resolution 1 second
10	Cooling medium	Ethanol or other antifreeze (provided by user)
11	Overall dimensions	900×505×800mm
12	Effective working space	200×140×100mm
13	Power supply and power	220V, 50Hz, 2kW
14	Weight	≈100kg

Product Configuration (Subject to final order):

Serial Number	Item	Model	Quantity
1	Main machine		1 piece
2	Sensor		1 piece
3	Specimen basket		1 piece
4	Specimen clamp		1 piece
5	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
