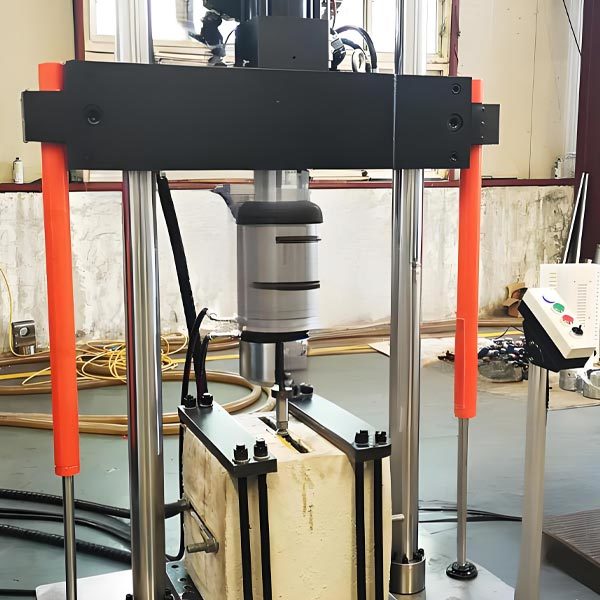

Embedded Channel Fatigue Testing Machine

The embedded channel fatigue testing machine is mainly applicable to tests on static mechanical properties, dynamic mechanical properties, and various conventional fracture mechanical properties of metallic and non-metallic materials. By replacing fixtures, it can complete experimental research on tension, compression, high-cycle fatigue, low-cycle fatigue, fatigue cracks, etc., for materials and components.

Classification :

Fatigue Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Functions:

Specifications and Technical Parameters:

Parameter	Specification
Model	Embedded Channel Fatigue Testing Machine
Maximum test force (kN)	100
Test force measurement range (kN)	2%～100% FS (no range division throughout the entire process)
Test force indication accuracy	Static: <1%, Dynamic: <2%
Deformation measurement resolution (mm)	0.001
Maximum piston stroke (mm)	600
Maximum tensile test space (mm) (including piston stroke)	1000
Maximum working pressure (MPa)	28
Deformation measurement accuracy	Within 0.5% of indicated value
Fixture configuration	Wedge-type fixture
Round sample clamping range (mm)	Φ0-φ20
Number of columns	4
Effective distance between columns (mm)	580mm
Clamping method	Hydraulic wedge clamping
Host overall dimensions (mm)	Approximately 1070×815×2300 (length×width×height)
Total power (kW)	15
Host weight (kg)	Approximately 1925KG
Hydraulic power unit weight (kg)	1177KG

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.

Q: Can we get the some samples? Any charges?

A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost
