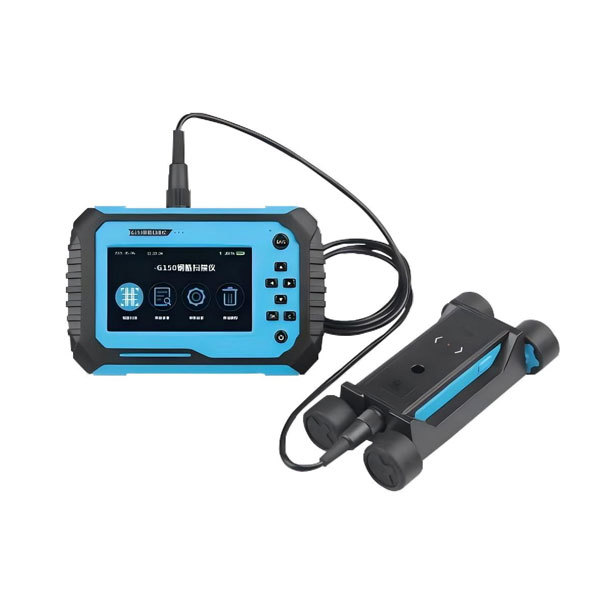

G150 Concrete steel bar detector

JGJ/T 152-2019 Technical Specification for Detection of Steel Bars in Concrete JF 1224-2009 Metrological Calibration Specification for Steel Bar Cover Thickness Gauges and Floor Slab Thickness Gauges GB 50010-2010 Code for Design of Concrete Structures

Classification :

Cement Mortar Concrete

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Standards Complied With:

JGJ/T 152-2019 Technical Specification for Detection of Steel Bars in Concrete

JF 1224-2009 Metrological Calibration Specification for Steel Bar Cover Thickness Gauges and Floor Slab Thickness Gauges

GB 50010-2010 Code for Design of Concrete Structures

GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering

GB/T 50344-2019 Standard for Inspection Technology of Building Structures

DB11/T 365-2016 Technical Specification for Detection of Steel Bar Cover Thickness and Steel Bar Diameter by Electromagnetic Induction Method

Application Fields:

It is used for detecting the position, distribution and orientation of steel bars, as well as the cover thickness and diameter of steel bars in concrete structures; it can also detect the orientation and distribution of ferromagnetic substances and conductors in non-ferromagnetic media.

Technical Parameters:

Name	Technical Indicators
Applicable range of steel bar diameter (mm)	φ6-φ50
Maximum measuring range (mm)	First range: 6~90
	Second range: 6~190
Maximum allowable error of cover thickness	±1mm: 6~80
	±2mm: 81~120
	±3mm: 121~140
	±4mm: 141~190
Applicable range for diameter estimation (mm)	φ6-φ50
Maximum error of diameter estimation	±1 specification
Display accuracy of diameter estimation (mm)	0.1
Power supply mode	Rechargeable lithium battery

Product Configuration (subject to final order):

Serial No.	Name	Origin	Quantity
1	Main unit of steel bar scanner	-	1 piece
2	Probe	-	1 piece
3	Signal cable	-	1 piece
4	Tape measure	-	1 piece
5	Communication data cable and power adapter	-	1 set
6	Hand-tear crayon	-	-
7	Instrument carrying case	-	1 piece
8	Equipment files (instruction manual, certificate of conformity, packing list)	-	1 set
