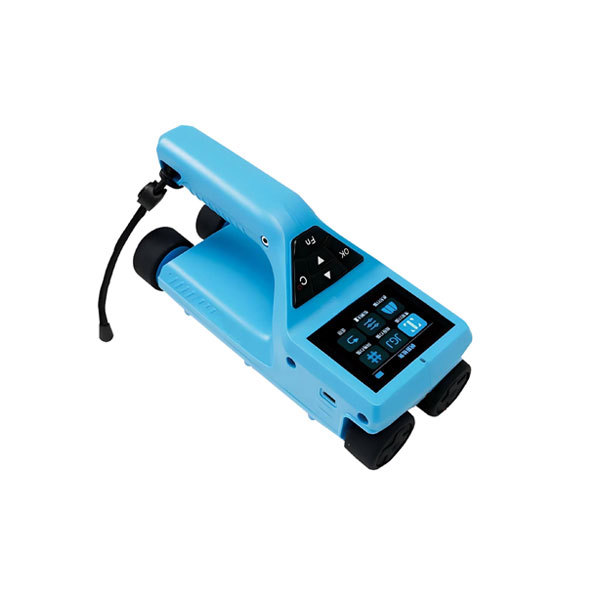

G200M Concrete Rebar Detector

JGJ/T 152-2019 Technical Specification for Detection of Steel Bars in Concrete JF 1224-2009 Metrological Calibration Specification for Steel Bar Cover Thickness Gauges and Floor Slab Thickness Gauges GB 50010-2010 Code for Design of Concrete Structures GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering

Classification :

Cement Mortar Concrete

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Standards Complied With:

JGJ/T 152-2019 Technical Specification for Detection of Steel Bars in Concrete

JF 1224-2009 Metrological Calibration Specification for Steel Bar Cover Thickness Gauges and Floor Slab Thickness Gauges

GB 50010-2010 Code for Design of Concrete Structures

GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering

GB/T 50344-2019 Standard for Inspection Technology of Building Structures

DB11/T 365-2016 Technical Specification for Detection of Steel Bar Cover Thickness and Steel Bar Diameter by Electromagnetic Induction Method

Application Fields:

It is used for structural detection of reinforced concrete. It can accurately detect the cover thickness and diameter of steel bars on the surface of reinforced concrete, and can accurately analyze the distribution of steel bars.

Technical Parameters:

Name	Technical Indicators
Applicable range of steel bar diameter (mm)	φ6-φ50
Maximum measuring range (mm)	First range: 1~105
	Second range: 2~205
Maximum allowable error of cover thickness	±1mm: 1~80
	±2mm: 81~120
	±3mm: 121~160
	±4mm: 161~205
Applicable range for diameter estimation (mm)	φ6-φ50
Maximum error of diameter estimation	±1 specification
Display accuracy of diameter estimation (mm)	0.1

Product Configuration (subject to final order):

Serial No.	Name	Origin	Quantity
1	Demonstration test block	-	1 piece
2	Cloth bag for main unit	-	1 piece
3	Power adapter	-	1 piece
4	TYPE-C data cable	-	1 piece
5	Instrument case	-	1 piece
6	Equipment files (instruction manual, certificate of conformity, packing list)	-	1 set
