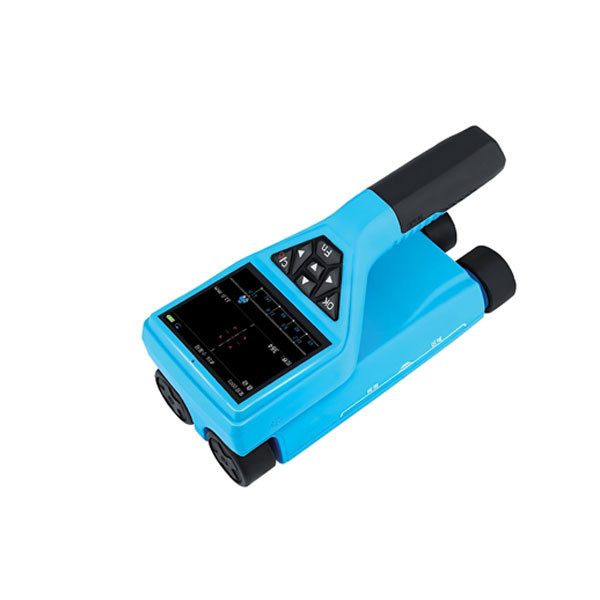

G300 Concrete Rebar Detector
Classification :
PRODUCT DETAILS
Standards Complied With:
JGJ/T 152-2019 Technical Specification for Detection of Contaminants in Concrete
JF 1224-2009 Metrological Control Specification for Stainless Steel Cover Thickness Gauges and Floor Slab Thickness Gauges
GB 50010-2010 Code for Design of Concrete Structures
GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering
GB/T 50344-2019 Standard for Inspection Technology of Building Structures
DB11/T 365-2016 Technical Specification for Detection of Stainless Steel Cover Thickness and Stainless Steel Diameter by Electromagnetic Induction Method
Application Fields:
It is used for detecting corrosion locations, corrosion distribution and orientation, cover thickness, and corrosion diameter in concrete structures; it is also suitable for detecting magnetic substances and conductors in non-magnetic and non-conductive media.
Technical Parameters:
| Name | Technical Indicators | ||||
|---|---|---|---|---|---|
| Applicable range of tensile diameter (mm) | φ6-φ50 | ||||
| Maximum stroke (mm) | First range: 1~120 | ||||
| Second range: 1~210 | |||||
| Maximum allowable error for cover thickness | ±1mm: 1~80 | ||||
| ±2mm: 81~120 | |||||
| ±3mm: 121~160 | |||||
| ±4mm: 161~210 | |||||
| Applicable range for diameter measurement evaluation (mm) | φ6-φ50 | ||||
| Maximum size for diameter measurement | ±1 specification | ||||
| Display accuracy of diameter measurement (mm) | 0.1 | ||||
| Functional indicators of the instrument | |||||
| Data transmission mode | Power supply mode | Main unit dimensions | Main unit weight | Screen size | Screen resolution |
| Bluetooth or USB | Rechargeable lithium battery (removable) | 21095120 (mm) | 650g | 3.5 inches | 640*480 |
Product Configuration (subject to final order):
| Serial No. | Name | Origin | Quantity |
|---|---|---|---|
| 1 | Extension rod | - | 1 set |
| 2 | Cloth bag for extension rod | - | 1 piece |
| 3 | Demonstration test block | - | 1 set |
| 4 | Soft case for instrument | - | 1 piece |
| 5 | Spare battery | - | 1 piece |
| 6 | Communication data cable and power bracket | - | 1 set |
| 7 | USB flash drive | - | 1 piece |
| 8 | Instrument notebook case | - | 1 piece |
| 9 | Equipment files (instruction manual, certificate of conformity, packing list) | - | 1 set |
