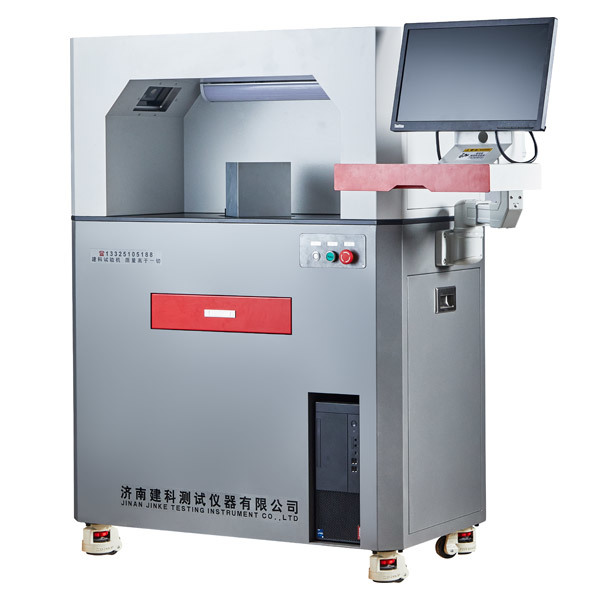

GD-M-100/150 Concrete Specimen Geometric Deviation Measuring Instrument

Mainly used to measure indicators such as length, width, height dimensions of concrete standard test blocks, angle between adjacent surfaces, and flatness of compressive bearing surfaces.

Classification :

Special Testing Machine Series

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Mainly used to measure indicators such as length, width, height dimensions of concrete standard test blocks, angle between adjacent surfaces, and flatness of compressive bearing surfaces.

Standards Compliance:

GB/T 50081 Standard for Test Methods of Physical and Mechanical Properties of Concrete;

Product Features:

Applicable test pieces: 150³mm, 100³mm, with strong versatility;

Measurement principle: Two sets of 3D high-precision measuring cameras perform opposite measurements, completing the measurement of length, width, height, angle between adjacent surfaces, and flatness of bearing surfaces within 10 seconds;

Raw data: Measured data can be saved and exported, eliminating the need for manual recording of original records and improving detection efficiency;

Data upload: Measurement data can be connected to the detection management system for automatic upload, realizing digital management;

Sample information: Supports scanning of sample barcodes with a scanner to improve detection efficiency;

Product Parameters:

Serial Number	Item	Parameters
1	Length resolution	0.01mm
2	Length measurement accuracy	≤±0.05mm
3	Adjacent surface angle resolution	0.02°
4	Adjacent surface angle measurement accuracy	≤±0.1°
5	Flatness resolution	0.01mm
6	Flatness accuracy	≤±0.0005 side length
7	Single-sided scanning speed	0.5s
8	Detection light source	Blue LED light source
9	Camera pixels	500W
10	Dimensions	1200×500×1400mm
11	Power supply	220V
12	Weight	≈100kg

Product Configuration:

Serial Number	Name	Content	Quantity
1	Main machine		1 set
2	3D measuring camera	High precision	2 sets
3	Test block positioning device		1 set
4	Calibration test block	100/150	1 piece each
5	Brand computer		1 set
6	Measurement and control software	Chinese/English version (optional)	1 set
