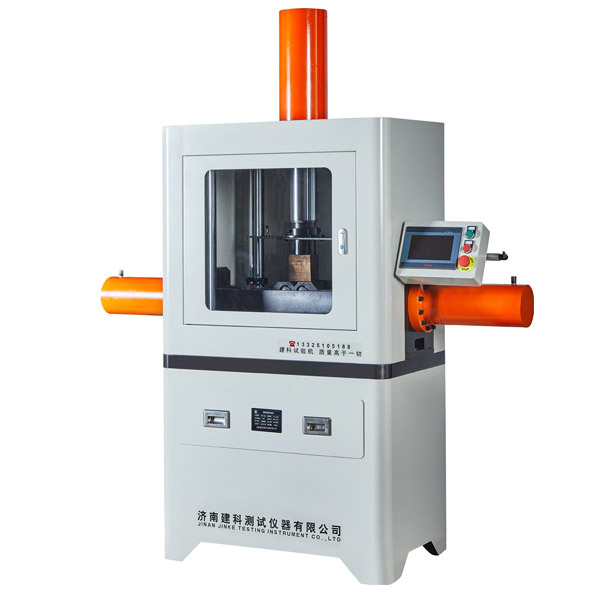

GW-160A Steel Bar Bending Testing Machine

Perform forward and plane reverse reverse bending tests on various types of steel bars, and can also be used for bending tests of metal plates.

Classification :

Bending Torsion Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Perform forward and plane reverse reverse bending tests on various types of steel bars, and can also be used for bending tests of metal plates.

Standards Compliance:

GB/T 1499.1 Steel for Reinforced Concrete - Part 1: Hot-rolled Plain Bars

GB/T 1499.2 Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Bars

GB/T 28900 Test Methods for Steel Products for Reinforced Concrete

YB/T 5126 Methods for Bending and Reverse Bending Tests of Steel Bars for Reinforced Concrete

GB/T 21839 Test Methods for Steel Products for Prestressed Concrete

GB/T 33365 Test Methods for Welded Steel Fabric for Reinforcement

GB/T 232 Bending Test Methods for Metallic Materials

Product Features

Main machine structure: Four-column structure, with main cylinder loading vertically up and down, and left-right lateral auxiliary cylinders loading horizontally;

Loading method: Hydraulic loading, equipped with hydraulic pump station;

Control mode: Automatic control or manual control, optional;

Automatic control: Touch screen operation, select test program, set steel bar diameter, automatically adjust bending span, automatically complete bending test, and cylinder automatically returns after bending;

Manual control: Bending loading speed adjustable, inching, linkage, program control, real-time display of bending angle;

Bending angle: Forward and reverse bending angles can be set arbitrarily;

Work efficiency: Some samples can complete 3 pieces at a time, with high work efficiency;

Safety protection: Safety shield as standard;

Product Parameters:

Serial Number	Item	Parameter
1	Diameter range of bending steel bars	φ6-φ40mm
2	Forward bending angle	Arbitrarily set within 0～180°
3	Reverse bending angle	Arbitrarily set within 0～180°
4	Bending span	365mm
5	Cylinder rated pressure	300KN
6	Piston stroke	300mm
7	Hydraulic station working pressure	0-25MPa
8	Machine dimensions (mm)	12007302100mm
9	Machine weight	≈900Kg
10	Motor power	2.2kW
11	Power supply	380V

Product Configuration (Subject to final order):

Serial Number	Name	Model	Quantity
1	Main machine		1 set
2	Oil source	Hydraulic oil to be prepared	1 set
3	Hexagon socket wrench	6#	1 piece
4	Connector		2 pieces
5	Bending mandrel pressure head seat		1 piece each
6	Bending mandrels (HRB400)	Ф30, Ф40, Ф50, Ф60, Ф70, Ф80, Ф90, Ф100, Ф110, Ф125, Ф168, Ф192, Ф216, Ф240	1 set
7	Equipment files	Instruction manual, certificate of conformity, packing list	1 copy
