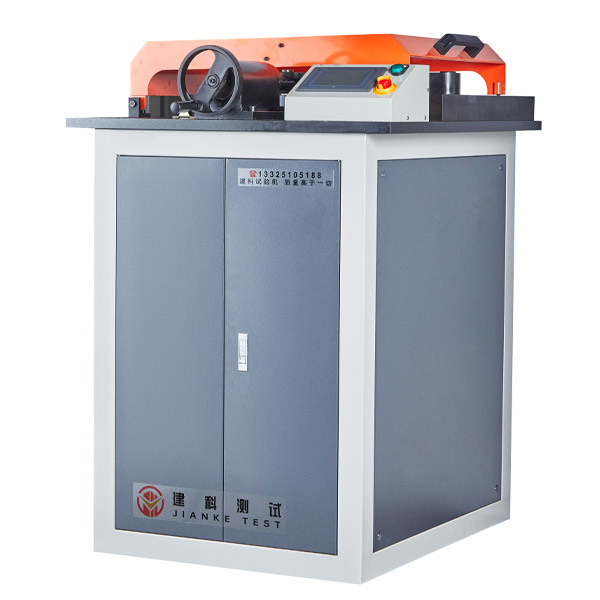

GW-40B Steel Bar Bending Testing Machine

Perform forward and plane reverse bending tests on various types of steel bars, and can also be used for bending tests of metal plates.

Classification :

Bending Torsion Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Perform forward and plane reverse bending tests on various types of steel bars, and can also be used for bending tests of metal plates.

Standards Compliance:

GB/T 1499.1 Steel for Reinforced Concrete - Part 1: Hot-rolled Plain Bars

GB/T 1499.2 Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Bars

GB/T 28900 Test Methods for Steel Products for Reinforced Concrete

YB/T 5126 Methods for Bending and Reverse Bending Tests of Steel Bars for Reinforced Concrete

GB/T 21839 Test Methods for Steel Products for Prestressed Concrete

GB/T 33365 Test Methods for Welded Steel Fabric for Reinforcement

GB/T 232 Bending Test Methods for Metallic Materials

Product Features

Equipment structure: All-in-one machine with compact structure and small footprint;

Control mode: Fully automatic with Chinese touch screen, easy to operate;

Bending form: Bending tests are realized through forward and reverse rotation of the motor;

Bending angle: Forward and reverse bending angles can be set arbitrarily;

Safety protection: Safety shield as standard;

Product Parameters:

Serial Number	Item	Parameter
1	Diameter range of bending steel bars	φ6-φ40mm
2	Forward bending angle	Arbitrarily set within 0～180°
3	Reverse bending angle	Arbitrarily set within 0～180°
4	Working disc rotation speed	≤20°/second
5	Machine dimensions (mm)	960×830×1230
6	Machine weight	700Kg
7	Motor power	1.5kW
8	Power supply	380V

Product Configuration (Subject to final order):

Serial Number	Name	Model	Quantity
1	Main machine		1 set
2	Working shaft	Ф25	1 piece
3	Working shaft	Ф42, installed on the main machine	3 pieces
4	Reverse bending pressing device	Installed on the main machine	1 set
5	Long and short lead screws	Long lead screw installed on the main machine	1 each
6	Bending mandrels (HRB400)	Ф30, Ф40, Ф50, Ф60, Ф70, Ф80, Ф90, Ф100, Ф110, Ф125, Ф168, Ф192, Ф216, Ф240	1 set
7	Equipment files	Instruction manual, certificate of conformity, packing list	1 copy
