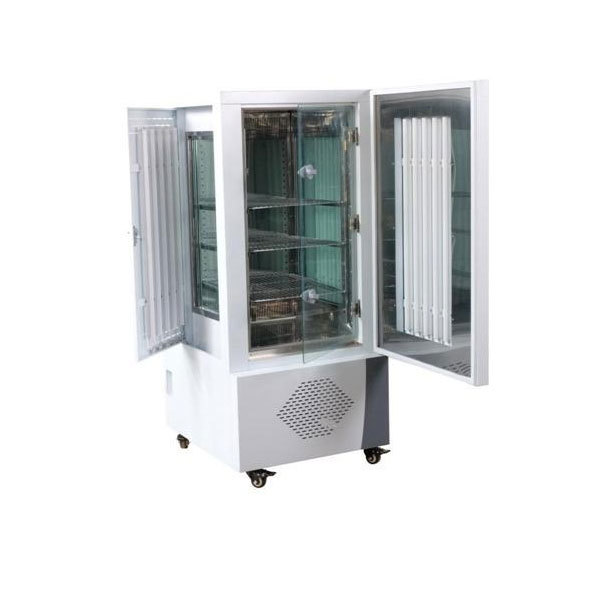

GZX-IV Illumination Incubator

It is suitable for seed germination, seedling raising of plants, cultivation and preservation of bacteria/microorganisms, and rearing of small animals/insects. It is an ideal experimental equipment for production and scientific research departments in biology, medicine, agriculture and animal husbandry, forestry, environmental science, etc.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Application

Product Features

Adopts LED tubes from well-known domestic brands, featuring stable high luminous flux light source and three-sided illumination to ensure light source stability.
5.6-inch large LCD screen with acrylic panel, displaying numbers clearly. It supports setting cycles (0-99) and up to 30 segments, with each segment’s time range: 0-9999 hours/minutes.
Uses high-quality temperature sensors; the Pt100 sensor ensures precise temperature control.
Six-level adjustable illuminance to simulate day and night environments.
Unique air flow design with gentle wind speed, ensuring temperature uniformity and precision.
The inner liner is made of high-quality stainless steel, featuring corrosion resistance, acid resistance, and easy cleaning.

Main Technical Parameters

Parameter Category	Specific Item	GZX250IV	GZX350IV
Model	-	GZX250IV	GZX350IV
Air Supply Method	-	Both models: Forced convection	Both models: Forced convection
Performance	Temperature Range (No Illumination)	Both models: 5-60℃	Both models: 5-60℃
	Temperature Range (With Illumination)	Both models: 10-60℃	Both models: 10-60℃
	Temperature Resolution	Both models: 0.1℃	Both models: 0.1℃
	Temperature Fluctuation	Both models: ±1℃	Both models: ±1℃
	Temperature Uniformity	Both models: ±1.5℃	Both models: ±1.5℃
	Illuminance	0-15000 Lx	0-20000 Lx
Structure	Inner Liner Material	Both models: Stainless steel	Both models: Stainless steel
	Outer Shell Material	Both models: Cold-rolled steel plate with electrostatic spraying	Both models: Cold-rolled steel plate with electrostatic spraying
	Insulation Material	Both models: Polyurethane	Both models: Polyurethane
	Heater	Both models: Stainless steel heating tube	Both models: Stainless steel heating tube
	Rated Power	1100 W	1400 W
	Compressor	Both models: Air-cooled hermetic compressor	Both models: Air-cooled hermetic compressor
Controller	Refrigerant	Both models: R134A	Both models: R134A
	Defrost Structure	Both models: Automatic	Both models: Automatic
	Temperature Control Mode	Both models: 30-segment LCD program	Both models: 30-segment LCD program
	Temperature Setting Method	Both models: Touch key setting	Both models: Touch key setting
	Temperature Display Method	Both models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	Both models: Measured temperature (upper LCD display); Set temperature (lower LCD display)
	Timer	Both models: 0-9999 minutes	Both models: 0-9999 minutes
	Operation Functions	Both models: Constant-value operation, timed operation, automatic stop, program operation	Both models: Constant-value operation, timed operation, automatic stop, program operation
	Program Mode	Both models: Standard configuration	Both models: Standard configuration
	Additional Functions	Both models: Deviation correction, menu key lock, power-off compensation, power-off memory, intelligent defrosting	Both models: Deviation correction, menu key lock, power-off compensation, power-off memory, intelligent defrosting
	Sensor	Both models: Pt100	Both models: Pt100
Specification	Internal Dimensions (D×W×H, mm)	520×500×980	580×600×1000
	External Dimensions (D×W×H, mm)	720×750×1640	800×830×1680
	Internal Volume	250 L	350 L
	Shelf Load Capacity	Both models: 15 Kg	Both models: 15 Kg
	Number of Shelves	Both models: 3 pieces	Both models: 3 pieces
	Number of Shelf Brackets	Both models: 6 pieces	Both models: 6 pieces
Power Supply	-	Both models: 220V 50Hz	Both models: 220V 50Hz
Optional Configurations	-	Both models: Shelves, RS-485 interface, printer, remote control, timed printing, wireless SMS alarm, external communication	Both models: Shelves, RS-485 interface, printer, remote control, timed printing, wireless SMS alarm, external communication
