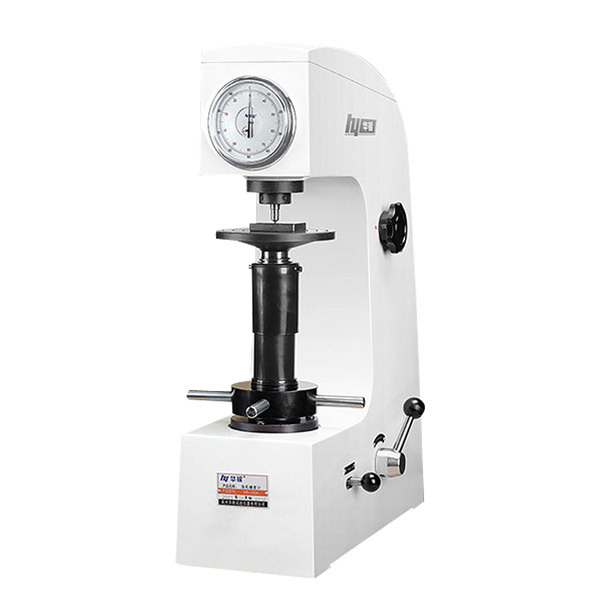

HR-150A Rockwell Hardness Tester

Used to measure the Rockwell hardness of ferrous metals, non-ferrous metals, hard high-hardness alloy materials, quenched and tempered heat-treated materials, plastics, bakelite, and some other non-metallic materials.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 230.2 Metallic Materials - Rockwell Hardness Test - Part 2: Verification and Calibration of Hardness Testers and Indenters

Product Features:

Manual Rockwell hardness tester, reliable, durable, and with high testing efficiency;

Direct reading from the dial, with HRA, HRBW, and HRC scales;

Other Rockwell scales can be optionally equipped;

Precision hydraulic buffer with adjustable loading speed;

Product Parameters:

Serial Number	Item	Technical Indicators
1	Measurement range	20-95HRA, 10-100HRBW, 10-70HRC
2	Test force	588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (50 kgf)
3	Maximum allowable height of specimen	170mm
4	Distance from indenter center to machine wall	135mm
5	Hardness resolution	0.5HR
6	Overall dimensions	466x238x630mm
7	Weight	≈65kg

Product Configuration (Subject to final order):

Serial Number	Item	Model	Quantity
1	Main machine		1 set
2	Large platform		1 piece
3	Small flat test bench		1 piece
4	V-type test bench		1 piece
5	Diamond cone indenter		1 piece
6	Tungsten carbide alloy ball indenter	1.588mm	1 piece
7	Standard Rockwell hardness blocks		5 pieces
8	Equipment files	Instruction manual, certificate of conformity, packing list	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Computer Software Copyright Registration Certificate Electro-hydraulic Servo Universal Testing Machine Measurement and Control System V1.0

Computer Software Copyright Registration Certificate Electronic Universal Testing Machine Embedded System V1.0

Computer Software Copyright Registration Certificate Constant Temperature and Humidity System Control Software V1.0

Computer Software Copyright Registration Certificate for Interactive Universal Testing Machine Measurement and Control System V1.0

Computer software copyright registration certificate Pressure testing machine embedded system V1.0

Invention Patent Certificate Building Material Density Testing Machine

Utility Model Patent Certificate A deformation measuring device

Utility Model Patent Certificate A Glass Optical Inspection Equipment
