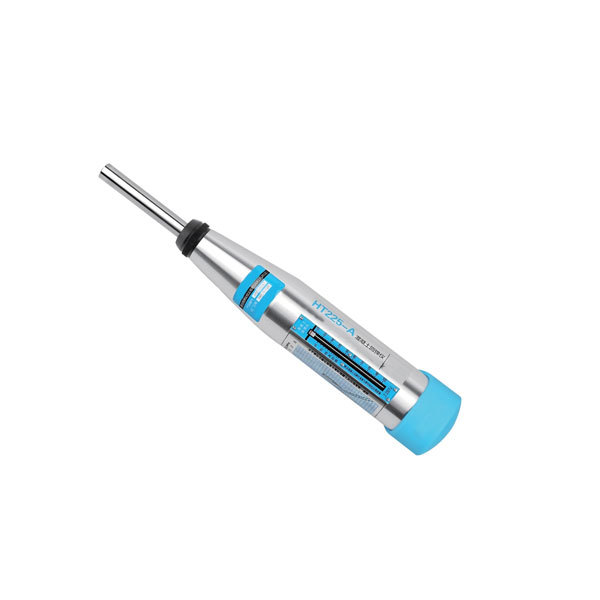

HT225-A Concrete Rebound Test Hammer

National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015 National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011 Industry Standard of the People's Republic of China Technical Specification for Detection of Concrete Compressive Strength by Rebound Method JGJ/T 23-2011

Classification :

Cement Mortar Concrete

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Complied With:

National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015

National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011

Industry Standard of the People's Republic of China Technical Specification for Detection of Concrete Compressive Strength by Rebound Method JGJ/T 23-2011

Application Fields:

According to national industry standards, it can be used for the detection of compressive strength of ordinary concrete within the range of 10~60MPa.

According to relevant local standards, it can be used for the detection of compressive strength of ordinary concrete within the range of 10~80MPa.

Technical Parameters:

Name	Technical Indicators
Impact kinetic energy	2.207 J
Pointer length	20.0±0.2 mm
Pointer friction force	0.65±0.15 N
Spherical radius of the impact rod end	25.0±1.0 mm
Stiffness of the impact tension spring	785.0±30 N/m
Release position of the impact hammer	At the "100" mark on the scale ±0.2 mm
Working length of the impact tension spring	61.5±0.3 mm
Stretching length of the impact tension spring	75±0.3 mm
of the impact hammer	At the "0~1" mark on the scale
Rated value of the steel anvil	80±2

Product Configuration (subject to final order):

Serial No.	Name	Origin	Quantity
1	Main unit of the detector	-	1 piece
2	Rebound hammer maintenance kit	-	1 set
3	Pointer assembly buffer spring	-	1 piece
4	Soft rubber hand rest for protection	-	1 piece
5	Grinding stone	-	1 piece
6	Impact tension spring assembly	-	1 piece
7	Screwdriver	-	-
8	Sealing felt ring, maintenance oil and dust-free cloth	-	1 set
9	Instrument carrying case	-	1 piece
10	Equipment files (instruction manual, certificate of conformity, packing list)	-	1 set
