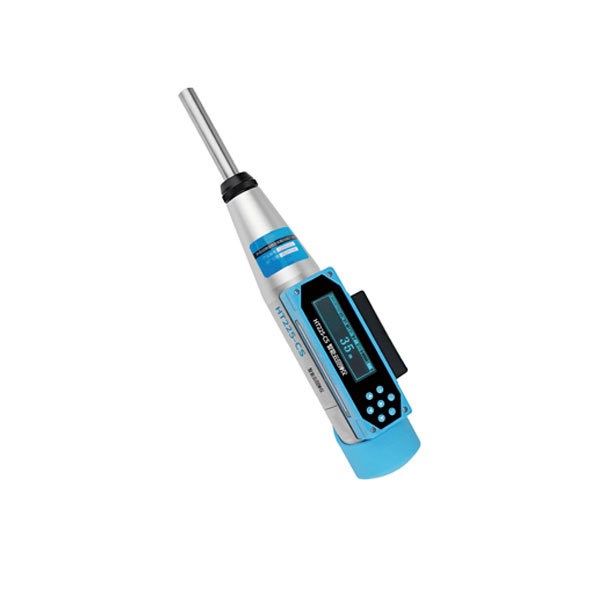

HT225-CS Digital Concrete Test Hammer
Classification :
PRODUCT DETAILS
Standards Complied With:
National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015
National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011
Industry Standard of the People's Republic of China Technical Specification for Detection of Concrete Compressive Strength by Rebound Method JGJ/T 23-2011
Application Fields:
According to national industry standards, it can be used for the detection of compressive strength of ordinary concrete within the range of 10~60MPa.
According to relevant local standards, it can be used for the detection of compressive strength of ordinary concrete within the range of 10~80MPa.
Technical Parameters:
| Name | Technical Indicators |
|---|---|
| Basis for detection data processing | Built-in national unified strength testing curve, local strength testing curves of provinces, municipalities and autonomous regions, and special strength testing curves |
| Strength testing curves | Factory preset with national unified curve and local strength testing curves of various provinces and cities |
| Data storage | 1000 components, with a maximum of 100 measuring areas per component |
| Impact kinetic energy | 2.207 J |
| Stiffness of the impact tension spring | 785±30.0 N/m |
| Stretching length of the impact tension spring | 75.0±0.3 mm |
| Working length of the impact tension spring | 61.5±0.3 mm |
| Rated value of the steel anvil | 80±2 |
| Indication consistency | ＜±0.5 |
| Display screen | 2.8-inch high-brightness LCD screen |
| Power supply mode | 3200 mAh 3.7V lithium-ion battery |
| Custom model | HT225-CD |
Product Configuration (subject to final order):
| Serial No. | Name | Origin | Quantity |
|---|---|---|---|
| 1 | Main unit of the detector | - | 1 piece |
| 2 | Rebound hammer maintenance kit | - | 1 set |
| 3 | Pointer assembly buffer spring | - | 1 piece |
| 4 | Soft rubber hand rest for protection | - | 1 piece |
| 5 | Grinding stone | - | 1 piece |
| 6 | Communication data cable and power adapter | - | 1 set |
| 7 | Impact tension spring assembly | - | 1 piece |
| 8 | Screwdriver | - | - |
| 9 | Sealing felt ring, maintenance oil and dust-free cloth | - | 1 set |
| 10 | Instrument carrying case | - | 1 piece |
| 11 | Equipment files (instruction manual, certificate of conformity, packing list) | - | 1 set |
