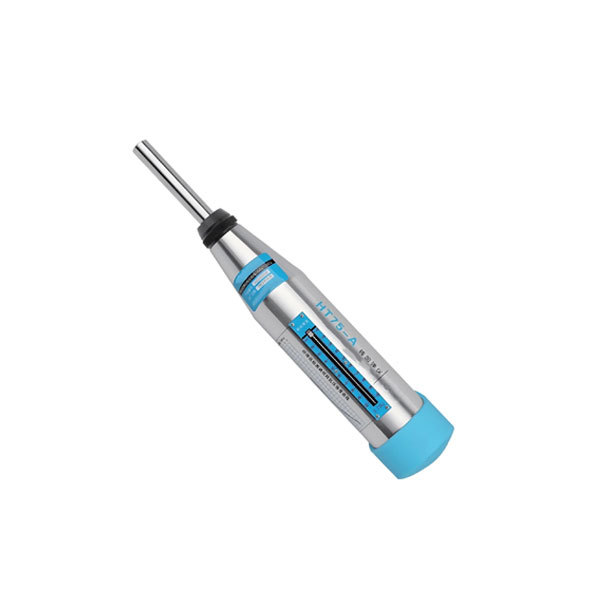

HT75-A Brick Rebound Test Hammer

National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015 National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011 National Standard of the People's Republic of China Standard for In-situ Testing Technology of Masonry Engineering GB/T 50315-2011

Classification :

Cement Mortar Concrete

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Complied With:

National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015

National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011

National Standard of the People's Republic of China Standard for In-situ Testing Technology of Masonry Engineering GB/T 50315-2011

Application Fields:

Used to test the compressive strength of bricks in masonry structures made of fired common bricks or fired perforated bricks.

Technical Parameters:

Name	Technical Indicators
Measurement range	6~30 MPa
Impact kinetic energy	0.735 J
Stretching length of the impact tension spring	75±0.3 mm
Pointer friction force	0.5±0.1 N
Working length of the impact tension spring	61.5±0.3 mm
Rated value of the steel anvil	74±2

Product Configuration (subject to final order):

Serial No.	Name	Origin	Quantity
1	Main unit of the detector	-	1 piece
2	Rebound hammer maintenance kit	-	1 set
3	Pointer assembly	-	1 piece
4	Soft rubber hand rest for protection	-	1 piece
5	Grinding stone	-	1 piece
6	Screwdriver	-	-
7	Sealing felt ring, maintenance oil and dust-free cloth	-	1 set
8	Instrument carrying case	-	1 piece
9	Equipment files (instruction manual, certificate of conformity, packing list)	-	1 set
