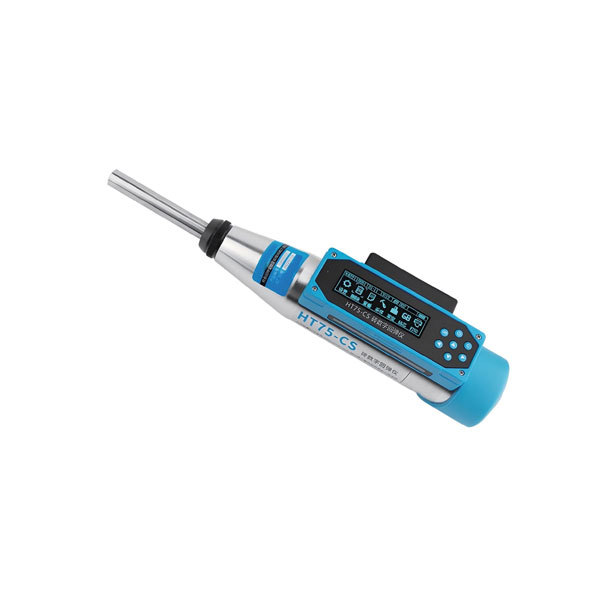

HT75-CS Digital Brick Rebound Test Hammer
Classification :
PRODUCT DETAILS
Standards Complied With:
National Standard of the People's Republic of China Rebound Hammer GB/T 9138-2015
National Metrological Verification Regulation of the People's Republic of China Rebound Hammer JG 817-2011
National Standard of the People's Republic of China Standard for In-situ Testing Technology of Masonry Engineering GB/T 50315-2011
Application Fields:
Used to test the compressive strength of bricks in masonry structures made of fired common bricks or fired perforated bricks.
Technical Parameters:
| Name | Technical Indicators |
|---|---|
| Measurement range | 6~30 MPa |
| Impact kinetic energy | 0.735 J |
| Stretching length of the impact tension spring | 75.0±0.3 mm |
| Pointer friction force | 0.5±0.1 N |
| Working length of the impact tension spring | 61.5±0.3 mm |
| Rated value of the steel anvil | 74±2 |
| Data storage | 1000 components |
| LCD screen | 2.8" OLED screen |
| Power supply mode | 3200 mAh 3.7V lithium battery |
| Indication consistency | ＜±0.5 |
Product Configuration (subject to final order):
| Serial No. | Name | Origin | Quantity |
|---|---|---|---|
| 1 | Main unit of the detector | - | 1 piece |
| 2 | Rebound hammer maintenance kit | - | 1 set |
| 3 | Pointer assembly | - | 1 piece |
| 4 | Soft rubber hand rest for protection | - | 1 piece |
| 5 | Grinding stone | - | 1 piece |
| 6 | Communication data cable and power adapter | - | 1 set |
| 7 | Screwdriver | - | - |
| 8 | Sealing felt ring, maintenance oil and dust-free cloth | - | 1 set |
| 9 | Instrument carrying case | - | 1 piece |
| 10 | Equipment files (instruction manual, certificate of conformity, packing list) | - | 1 set |
