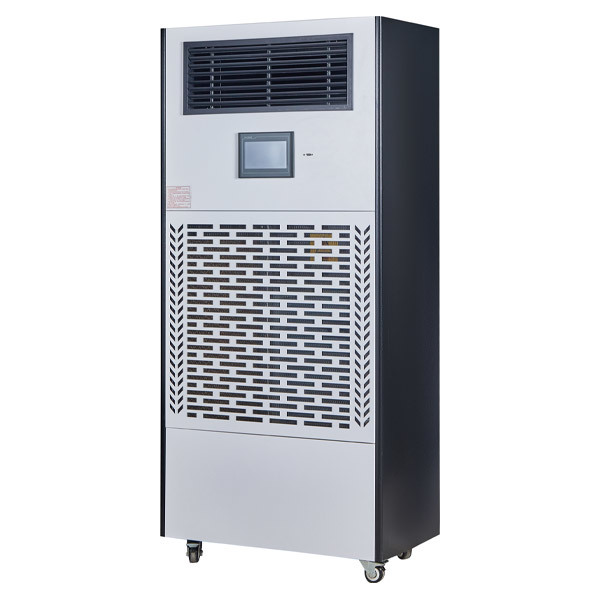

HWHS-50/HWHS-100 Constant Temperature and Humidity Control System

Constant temperature and humidity control system is used for temperature and humidity control in inspection and testing laboratories (such as: concrete laboratories, concrete mechanics mechanics laboratories, cement laboratories, waterproof membrane laboratories, coating laboratories, thermal insulation material laboratories, etc.). It can also be used for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc., with advantages of high control precision and good uniformity.

Classification :

Test Environment Temperature and Humidity

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Features:

Humidity control: 7-inch true color touch screen controller for automatic control, with free setting and control (the computer board has a power failure memory function).

Temperature control: 7-inch true color touch screen controller wirelessly connects to the existing air conditioner in the laboratory to realize automatic control.

Defrosting function: Microcomputer intelligent control, automatic defrosting, suitable for low temperature.

Compressor: Adopts Hitachi brand rotary compressor with low noise, reliable operation and high energy efficiency ratio.

Power supply: Uses 220V power supply, with compressor three-minute delay protection, sensor failure indication error code and other devices.

Water filling method: Dual-purpose of manual water filling and connecting to tap water pipe.

Humidification method: Adopts high-efficiency wet curtain for better humidification effect.

Humidification water tank: Made of stainless steel with a capacity of 20 liters.

Refrigeration system: Uses high-efficiency copper sleeve aluminum fin heat exchanger, which has compact structure, good pressure resistance and high heat exchange efficiency.

Fan design: Adopts air-conditioning special centrifugal fan system, which is characterized by large air volume, small friction, low noise and long service life.

Water inlet/outlet method: Automatic water inlet/continuous drainage.

Communication method: 485 communication, and provides communication protocol.

Mobile method: Equipped with universal wheels at the bottom.

Product Parameters:

Serial Number	Item	HWHS-50	HWHS-100
1	Maximum dehumidification capacity	20 liters/day	50 liters/day
2	Maximum humidification capacity	1.5kg/hour	3kg/hour
3	Humidification method	Wet membrane humidification
4	Humidification water tank capacity	20L	30L
5	Maximum control area	≤40m² (slightly floating according to on-site working conditions)	≤80m² (slightly floating according to on-site working conditions)
6	Water inlet method	Manual water filling (water tank manual filling, automatic) + automatic water inlet (connected to tap water, 4-point external thread)
7	Drain outlet	4-point external thread
8	Air inlet and outlet method	Front air inlet, top air outlet	Front air inlet, top air outlet
9	Circulating air volume	300 m³/h	600 m³/h
10	Maximum power	1100W
11	Refrigerant model	R22
12	Overall dimensions	5805361615mm	8054501655mm
13	Operating environment temperature	5～38℃
14	Power supply	AC220V/50Hz
15	Net weight	≈50KG	≈70KG

Product Configuration:

Serial Number	Accessory Name	Brand	Quantity
1	Main machine	Jianke	1 set
2	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
