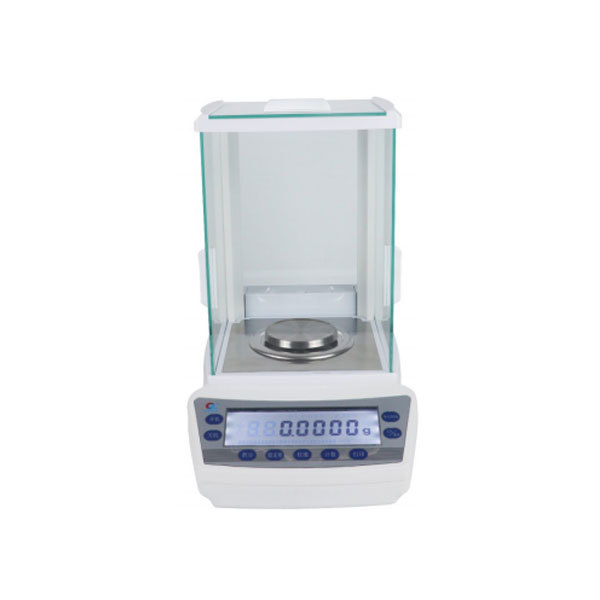

JA203 Electronic Analytical Balance

High precision and fast response speed External weight calibration function Counting percentage function

Classification :

General Electrochemical Instruments

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Features

High precision and fast response speed
External weight calibration function
Counting percentage function
Extra-large LCD display screen
Stainless steel weighing pan
Overload alarm function: Users can set upper and lower weight limits according to their own requirements
USB data transmission function: Can connect to computers and printers for fast data collection

Technical Parameters

Parameter	Specification
Model	JA203
Accuracy Class	Class Ⅱ
Weighing Range (g)	0~200
Actual Division Value (mg)	1
Maximum Permissible Error (e)	0≤m≤5×10³
	5×10³ (for m > 5×10³)
	2×10⁵ (for m > 2×10⁵)
Stabilization Time (s)	≤ 6
Weighing Pan Diameter (mm)	Φ80
Overall Dimensions (mm)	360×220×355 / 375×217×356
Net Weight (kg)	6.0
Power Supply	Input: AC 220V/50Hz, Output: 15VDC 1000mA / Input: AC 220V/50Hz, Output: DC 5V 2.5A
Power (V·A)	15
External Calibration Weight (g)	200
Warm-up Time After Startup (s)	180
