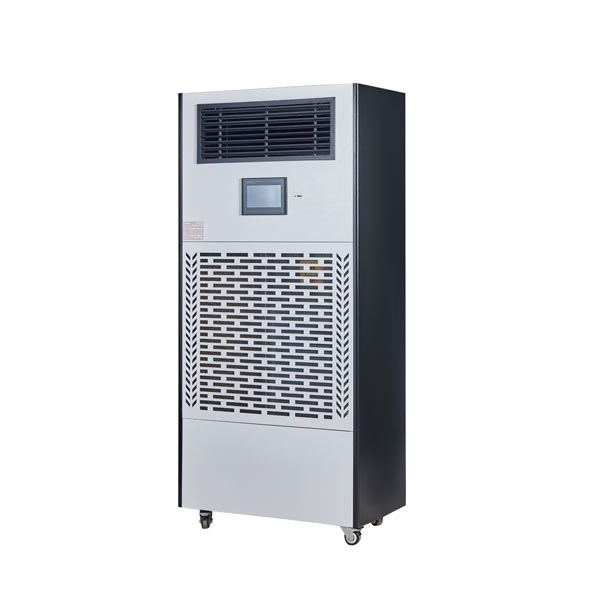

HWHS-50/HWHS-100 Constant Temperature and Humidity Control System
Constant Temperature and Humidity Control System: Used for temperature and humidity control in testing laboratories (e.g., concrete laboratories, concrete mechanics laboratories, cement laboratories, waterproof membrane laboratories, coating laboratories, thermal insulation material laboratories, etc.). It can also be used for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc., with advantages of high control accuracy and good uniformity.
Classification :
PRODUCT DETAILS
Product Functions
- Constant Temperature and Humidity Control System: Used for temperature and humidity control in testing laboratories (e.g., concrete laboratories, concrete mechanics laboratories, cement laboratories, waterproof membrane laboratories, coating laboratories, thermal insulation material laboratories, etc.). It can also be used for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc., with advantages of high control accuracy and good uniformity.
Product Features
- Humidity Control: Automatically controlled by a 7-inch true-color touchscreen controller, with free setting and control (the circuit board has a power-off memory function).
- Temperature Control: The 7-inch true-color touchscreen controller connects wirelessly to the existing air conditioners in the laboratory to achieve automatic control.
- Defrosting Function: Microcomputer intelligent control, automatic defrosting, suitable for low-temperature environments.
- Compressor: Adopts Hitachi rotary compressor, featuring low noise, reliable operation, and high energy efficiency ratio.
- Power Supply: Uses 220V power supply, equipped with 3-minute delay protection for the compressor and sensor fault indication with error codes.
- Water Filling Method: Dual-purpose of manual water filling and tap water pipe connection.
- Humidification Method: Adopts high-efficiency wet curtain for better humidification effect.
- Humidification Water Tank: Made of stainless steel, with a capacity of 20 liters.
- Refrigeration System: Uses high-efficiency copper-sheathed aluminum fin heat exchanger, which has a compact structure, good pressure resistance, and high heat exchange efficiency.
- Fan Design: Adopts air-conditioning-specific centrifugal fan system, featuring large air volume, low friction, low noise, and long service life.
- Water Inlet/Outlet Method: Automatic water inlet / continuous water drainage.
- Communication Method: 485 communication, with communication protocol provided.
- Movement Method: Equipped with universal wheels at the bottom.
Product Parameters
| Serial No. | Item | HWHS-50 | HWHS-100 |
|---|---|---|---|
| 1 | Maximum Dehumidification Capacity | 20 L/day | 50 L/day |
| 2 | Maximum Humidification Capacity | 1.5 kg/h | 3 kg/h |
| 3 | Humidification Method | Both models: Wet membrane humidification | Both models: Wet membrane humidification |
| 4 | Humidification Water Tank Capacity | 20 L | 30 L |
| 5 | Maximum Control Area | ≤ 40 m² (varies slightly according to on-site working conditions) | ≤ 80 m² (varies slightly according to on-site working conditions) |
| 6 | Water Inlet Method | Both models: Manual water filling (manual filling for water tank, automatic) + automatic water inlet (connected to tap water, G1/2 external thread) | Both models: Manual water filling (manual filling for water tank, automatic) + automatic water inlet (connected to tap water, G1/2 external thread) |
| 7 | Water Drain Outlet | Both models: G1/2 external thread | Both models: G1/2 external thread |
| 8 | Air Inlet/Outlet Method | Front air inlet, top air outlet | Front air inlet, top air outlet |
| 9 | Circulating Air Volume | 300 m³/h | 600 m³/h |
| 10 | Maximum Power | Both models: 1100 W | Both models: 1100 W |
| 11 | Refrigerant Type | Both models: R22 | Both models: R22 |
| 12 | Overall Dimensions | 580×536×1615 mm | 805×450×1655 mm |
| 13 | Operating Ambient Temperature | Both models: 5～38℃ | Both models: 5～38℃ |
| 14 | Power Supply | Both models: AC 220V/50Hz | Both models: AC 220V/50Hz |
| 15 | Net Weight | ≈ 50 kg | ≈ 70 kg |
Product Configuration
| Serial No. | Accessory Name | Brand/Description | Quantity |
|---|---|---|---|
| 1 | Main Unit | Jianke | 1 unit |
| 2 | Equipment Documents | Instruction manual, certificate of qualification, packing list | 1 set |
APPLICATION FIELD
Aerospace
Automobile Manufacturing
Mechanical Manufacturing
Electronic Components
Textile Industry
Wires and Cables
CERTIFICATES
Software Registration No.11208041
Pressure Testing Machine Embedded System V1.0
Soft Registration No.11208039
Constant Temperature and HumiditySystem Control Software V1.0
A Kind of Door andWindow Performance Testing Equipment
A Concrete lmpermeability Test Device
A Temperature and Humidity Control Device
A Hydraulic Universal Testing Machine
FAQ
Q:Does the product have quality inspection before loading?
A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.
Q:Can l go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory
Q:How many countries you already exported to?
A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.
Q:How long does your delivery time take?
A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.
Q:What product information do l need to provide?
A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.
Q: Can we get the some samples? Any charges?
A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost
