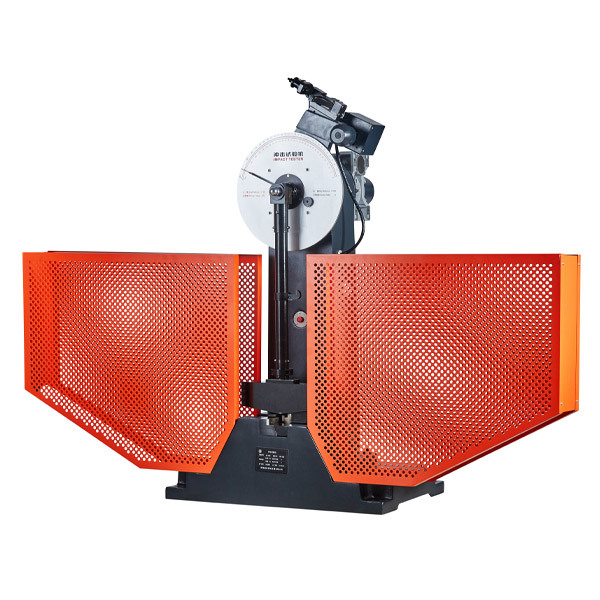

JB-300B Impact Testing Machine

Used for testing the impact resistance performance of metallic materials under dynamic load in Charpy impact tests (for V-notch and U-notch specimens).

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used for testing the impact resistance performance of metallic materials under dynamic load in Charpy impact tests (for V-notch and U-notch specimens).

Standards Compliance:

GB/T 3808 Verification of Pendulum Impact Testing Machines

JG 145 Pendulum Impact Testing Machines

GB/T 229 Metallic Materials - Charpy Notch Impact Test Method

Product Features:

Semi-automatic control, with control buttons enabling automatic lifting, automatic hanging, and automatic impact of the pendulum;

Capable of continuous impact tests and batch impact tests, featuring fast speed, high accuracy, and high efficiency;

Product Parameters:

Serial Number	Item	Technical Indicators
1	Impact energy	300J, 150J
2	Dial scale range and division value (0～150J)	1J
3	Dial scale range and division value (0～300J)	2J
4	Pendulum moment (0～150J)	80.3848 N·m
5	Pendulum moment (0～300J)	160.7695 N·m
6	Pendulum pre-lift angle	150°
7	Distance from spindle center to impact point (specimen center)	750mm
8	Impact velocity	5.24m/s
9	Specimen support span	40mm
10	Radius of specimen support end arc	1～1.5mm
11	Inclination angle of specimen support surface	11°
12	Radius of impact edge arc	2～2.5mm
13	Angle of impact edge	30°±1°
14	Thickness of impact edge	16mm
15	Specimen size	10×10×55mm
16	Main machine weight	≈450kg
17	Overall dimensions	2124×600×1340mm
18	Power supply	Three-phase four-wire system 50Hz 380V 250W (main motor)

Product Configuration (Subject to final order):

Serial Number	Item	Model	Quantity
1	Main machine		1 set
2	Pendulum	Large, small	1 each
3	Span template	L=40	1 piece
4	Specimen centering block	L=40 (V, U type)	1 piece
5	Remover		1 piece
6	Open-end wrench	S=30	1 piece
7	Hexagon socket wrench	S=12	1 piece
8	Anchor bolt	M16×200	4 pieces
9	Jaw (including jaw seat)	R10+0.5	1 pair
10	Protection net		1 set
11	Hand control box		1 set
12	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
