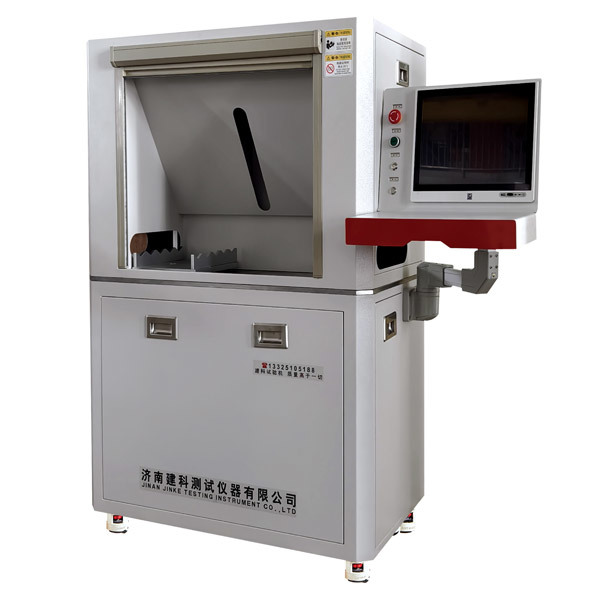

JK-ZC-5 Fully Automatic Steel Bar Weighing and Marking Instrument

The automatic automaticSteel bar weight deviation marking machine (Automatic Rebar Weight Deviation and Marking Integrated Machine) is an independently developed device by our company that can complete weighing and length measurement for a group (five pieces) of rebars at one time, and perform real-time result determination. This equipment can simultaneously complete the original gauge length marking and weight deviation testing on rebars.

Classification :

Special Testing Machine Series

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 1499.1 Steel for Reinforced Concrete - Part 1: Hot-rolled Plain Bars;

GB/T 1499.2 Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Bars;

GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Ambient Temperature;

GB/T 4338 Metallic Materials - Tensile Testing at Elevated Temperatures and other relevant test standards;

Product Features:

Weight measurement: Uses high-precision load sensors to measure the total weight of rebars;

Length measurement: Uses laser through-beam length measuring sensors and grating displacement sensors to measure the length of each specimen;

Specimen marking: Uses a high-power laser emitting device to mark lines on the sample surface, with adjustable power and clear marking lines;

Specimen gauge length: Uses grating displacement sensors to control the marking gauge length, which can be set arbitrarily;

Raw data: Measured data can be saved and exported, eliminating the need for manual recording of original records and improving detection efficiency;

Data upload: Measurement data can be connected to the detection management system for automatic upload, realizing digital management;

Sample information: Supports scanning of sample barcodes with a scanner to improve detection efficiency;

Product Parameters:

Serial Number	Item	Parameters
1	Maximum number of specimens	5 pieces
2	Weight measurement range	0.5-100kg
3	Diameter range	Φ6-φ55mm
4	Length range	400-700mm
5	Relative error of weight indication	±0.5%
6	Displacement sensor accuracy	0.01mm
7	Optional gauge length	5mm/10mm/custom setting
8	Laser power	70W
9	Safety protection method	Through-beam safety light curtain, laser visual protection film
10	Voltage	220V
11	Dimensions	Approximately 1360×700×1600mm
12	Weight	≈390kg

Product Configuration:

Serial Number	Name	Content	Quantity
1	Main machine frame	JK-ZC-5	1 set
2	High-precision load sensor	100kg	1 piece
3	Laser generating module	70W	1 set
4	Platform linear movement module		1 set
5	Grating displacement sensor	800mm	1 set
6	Laser through-beam optical fiber		5 groups
7	Through-beam safety light curtain	Left-right through-beam at the door	1 set
8	Laser visual protection film	Installed with upper and lower roller shutters	1 set
9	Industrial computer		1 set
10	Measurement and control software	Chinese/English version (optional)	1 set
11	Instruction manual and certificate of conformity		1 set
