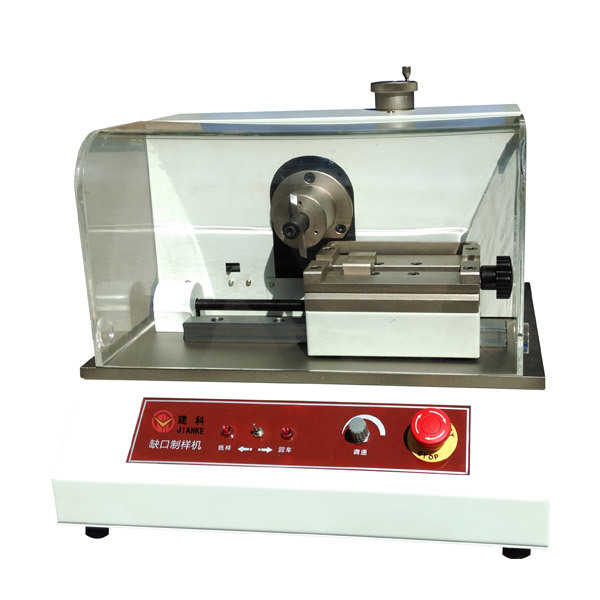

JKANM-II Notch Prototyping Machine

Used for manufacturing notched specimens for Izod and Charpy impact tests.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used for manufacturing notched specimens for Izod and Charpy impact tests.

Standards Compliance:

GB/T 1043 Determination of Charpy Impact Properties of Plastics;

GB/T 1843 Plastics - Determination of Izod Impact Strength;

ISO 179 Plastics - Determination of Charpy Impact Strength;

ISO 180 Plastics - Determination of Izod Impact Strength;

Product Features:

Safety protection devices: Left and right limit protection with anti-collision limit switches to ensure the feeding device moves within the limited range. Equipped with a protective cover, and the cutting motor can only start when the protective cover is closed, further ensuring the safety of test personnel;

Product Parameters:

Serial Number	Item	Parameters
1	Rotating motor speed	240r/min
2	Tool stroke	20mm
3	Notch depth	0～2.5mm (adjustable)
4	Worktable stroke	＞90mm
5	Number of specimens clamped at one time	20 pieces
6	Type A tool size and accuracy	45°±1°，r=0.25±0.05（mm）
7	Type B tool size and accuracy	45°±1°，r=1.0±0.05（mm）
8	Type C tool size and accuracy	45°±1°，r=0.1±0.02（mm）
9	Power supply voltage	220V±10% 50Hz

Product Configuration (Subject to final order):

Serial Number	Name	Model/Origin	Quantity
1	Main machine	Jianke	1 set
2	Cutting tools	Type A, Type B, Type C	1 piece each
3	Power cord		1 piece
4	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
