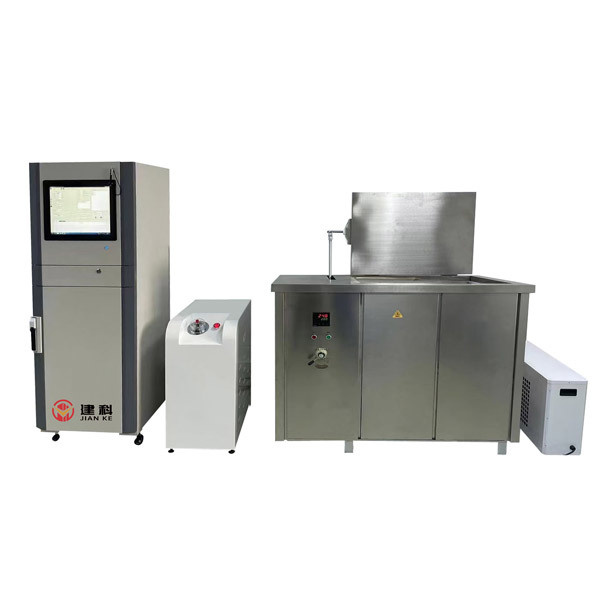

JKGCZJ-10C Pipe Hydrostatic Testing Machine

Used for determining the hydraulic instantaneous burst and long-term constant pressure resistance time of thermoplastic pipes for various fluid-conveying plastic pipes. It is an essential testing instrument for research institutes, quality inspection departments, and pipe manufacturers.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 6111 Test Method for Internal Pressure Resistance of Thermoplastic Pipes for Fluid Conveyance;

GB/T 15560 Hydraulic Instantaneous Burst and Pressure Resistance Test Methods for Plastic Pipes for Fluid Conveyance;

ISO 1167;

ASTM D1598;

ASTM D1599;

Product Features:

Multi-functional: Can perform both long-term hydrostatic tests and burst tests on pipes, as well as thermal stability tests of thermoplastic pipes under hydrostatic conditions;

Key components: Imported pump head, German solenoid valve, British GEMS sensor, ensuring high reliability and stability during long-term operation;

Wide pressure control range: Each station's pressure can be arbitrarily set within the range of 0.4-16MPa;

High reliability guarantee: All electrical, mechanical, and software components are equipped with safety protection measures;

Heating and temperature control system: Built-in heating system in the water tank with high heat exchange efficiency, stainless steel horizontal hot water pump with horizontal installation, large flow rate of 1200L/hour. The hot water pump draws hot water from below and sprays it from above, ensuring uniform temperature in the tank. No need to shut down when maintaining the heater;

Refrigeration and temperature control system: External high-power industrial chiller with good refrigeration effect;

Tank cover opening method: Pneumatic cylinder opening, with adjustable opening angle (size) that can be stopped at any position;

Tank cover sealing method: Silicone rubber strip sealing, no air leakage at high temperatures;

Hydrostatic water tank and pipes: Overall 304 stainless steel material, inner tank fully insulated for fast heating and energy saving. The outer tank remains close to room temperature even when the water temperature is 95℃. Circulating spray system pipes, overall pipe system made of 304 stainless steel;

The inner wall of the water tank is equipped with high-pressure interfaces, each of which can be equipped with quick connectors and high-pressure hoses;

Protection functions: Automatic water replenishment, water shortage shutdown protection, overflow, etc.;

Humanized design: Has an option for automatic time extension, can also manually extend time, which can be used to compensate for intermediate invalid time, and can also change test pressure midway;

Product Parameters:

Main Machine Parameters:
Serial Number	Item		JKGCZJ-10C-3			JKGCZJ-10C-6			JKGCZJ-10C-9
1	Test pipe diameter range		D16～D630, customizable
2	Maximum test pressure		16MPa
3	Maximum number of test stations		3 channels			6 channels			9 channels
			Customizable
4	Control method		Computer control
5	Data storage		Each channel has power-off data protection function, can be restored upon startup
6	Timing range		0～9999 hours 59 minutes
7	Timing accuracy		±0.1%
8	Time resolution		1s
9	Minimum setting unit		min
10	Pressure control range		0.4～16MPa
11	Pressure control accuracy		-1%～+2%
12	Pressure display resolution		0.001MPa
13	Measurement range		4%～100%FS
14	Limit of permissible error of indication		Within 1% of indication
Constant Temperature Medium Water Tank Parameters:
Serial Number	Item	JKGCSX-200D		JKGCSX-250D	JKGCSX-315D		JKGCSX-450D	JKGCSX-630D		JKGCSX-1000D
1	Maximum test pipe diameter	200mm		250mm	315mm		450mm	630mm		1000mm
		Customizable
2	Maximum number of test stations	Regular 3/6/9 channels, customizable
3	Tank inner container size	800×600×1000mm		1000×800×1200mm	1900×700×800mm		1900×800×1000mm	1900×1100×1200mm		3750×1600×1450mm
		Customizable
4	Test temperature	15～95℃
5	Temperature control accuracy	±0.5℃
6	Temperature field uniformity	±0.5℃ or ±1℃
7	Inner container material	Stainless steel
8	Refrigeration method	Industrial chiller, compressor refrigeration
9	Tank cover opening method	Pneumatic cylinder opening

Product Configuration (Subject to final order):

Serial Number	Name	Origin and Model	Quantity
Main Machine Part
1	Solenoid valve	Imported	Number of stations × 2
2	Pressure transmitter	British GEMS	Number of stations × 1
3	Electric contact pressure gauge	Domestic	1
4	High-pressure plunger pump	Imported	1
5	Single-station accumulator	Domestic	Number of stations × 1
6	Pressure station accumulator	Domestic	1
7	Long high-pressure hose	(Temperature resistant 100℃, pressure resistant 63MPa)	Number of stations × 1
Constant Temperature Medium Water Tank Part
1	Tank body	Stainless steel	1
2	Short high-pressure hose	(Temperature resistant 100℃, pressure resistant 63MPa)	Number of stations × 1
3	Temperature control system	Jianke	1
4	Chiller	Domestic	1
5	Heating tube	Domestic	3
6	Pneumatic cylinder	Taiwan, Airtac	2
7	Tank opening rotating handle	Taiwan, Airtac	1
8	Circulation pump	Nanfang Pump Industry, stainless steel horizontal hot water pump 1200L/hour	1
Others
1	Computer	Brand	1
2	Equipment files	Instruction manual, certificate of conformity, packing list	1
Optional
1	Stainless steel fixtures	Φ16～Φ1200mm	Selected as needed
