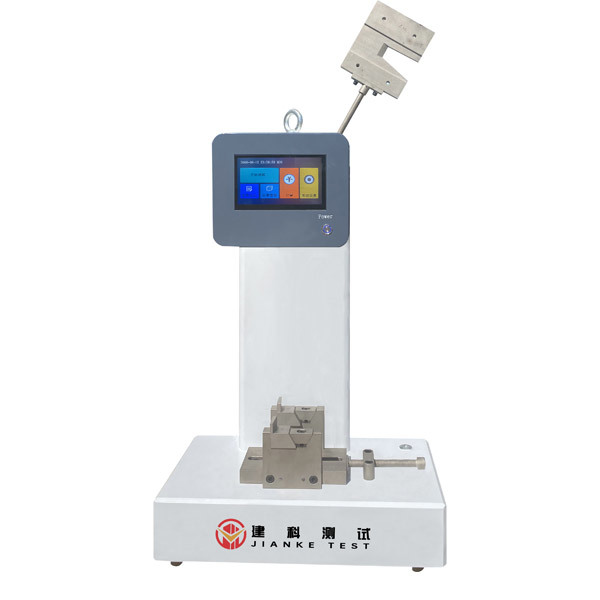

JKJJ-50GA Simple Supported Beam Impact Testing Machine

Used for the simply supported beam impact test of homopolymer and copolymer polypropylene (PP-H, PP-B, PP-R) pipes, unplasticized polyvinyl chloride (PVC-U) pipes, modified high-impact polyvinyl chloride (PVC-Hi) pipes, chlorinated polyvinyl chloride (PVC-C) pipes, and acrylonitrile-butadiene-styrene and acrylonitrile-styrene-acrylic (ABS, ASA) pipes.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 18743 Test Method for Simply Supported Simply Supported Beam of Thermoplastic Thermoplastic Pipes for Fluid Conveyance;

ISO 9854;

Product Features:

Adopts high-hardness and high-precision bearings, and uses a shaftless photoelectric sensor, fundamentally eliminating losses caused by friction, ensuring that friction energy loss is much lower than standard requirements;

Software interface: Includes parameter setting interface, result query interface, measurement interface, and system setting interface. Each operation has clear user prompts. It can record 10 test records, support selection between domestic and international standards, and switch between Chinese and English;

Accurate measurement: Fully in accordance with new standards, energy loss is calculated after 10 swing cycles, and each measurement is averaged three times to ensure the accuracy of energy loss;

Product Parameters:

Serial Number	Item	Parameters
1	Impact speed	3.8m/s
2	Impact energy	15.0J/50.0J (optional)
3	Impact pendulum torque	M15.0= 8.03848N·m, M50.0=26.79492N·m
4	Maximum friction loss energy	<0.5%
5	Pendulum pre-lift angle	150°
6	Striking center distance	395 mm
7	Impact blade fillet radius	(R2±0.5) mm
8	Impact blade angle	(30±1)°
9	Jaw fillet radius	(R1.0±0.1) mm
10	Thickness of pendulum impact blade	≤10mm
11	Jaw spacing	20mm, 25mm, 40mm, 70mm, 40mm circumferential, 70mm circumferential, 62H, 62V
12	Discharge port length	8.000±0.025mm
13	Barrel diameter	Φ9.550±0.025mm
14	Barrel length	152±0.1mm
15	Piston rod head diameter	9.475±0.015mm
16	Piston rod head length	6.350±0.100mm
17	Power supply voltage	220V±10% 50Hz 1KW

Types, Sizes and Support Spans of Pipe Samples

Sample Type	Pipe		Longitudinal Sample			Support Span mm
Sample Type	Outer Diameter (de) mm	Wall Thickness (e) mm	Length mm	Width mm	Height mm	Support Span mm
1	de<25	All	100±2	Entire	Pipe	70
2	25	e<4.2	50±1	6±0.2	=e	40
2	25	4.2	120±2	15±0.5	e (max 10.5)	70
3	de>75	e<4.2	50±1	6±0.2	=e	40
3	de>75	4.2	120±2	15±0.5	e (max 10.5)	70

Pipes with outer diameter <25mm can be tested directly after being cut to length;

The length of the sample is the axial length of the pipe, the width is the arc length on the circumference of the pipe, and the height is the wall thickness of the pipe;

For wall thickness >10.5mm, it can be machined to <10.5mm;

Types, sizes and support spans of annular cross-cut samples;

Sample Type	Arc Length mm	Width mm	Thickness mm	Support Span mm
1	50±1	6±0.2	Pipe wall thickness	40
2	120±2	15±0.2	Pipe wall thickness	70

Product Configuration (Subject to final order):

Serial Number	Name	Model/Origin	Quantity
1	Main machine	Jianke	1 set
2	Hammer		1 piece
3	Power cord		1 piece
4	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
