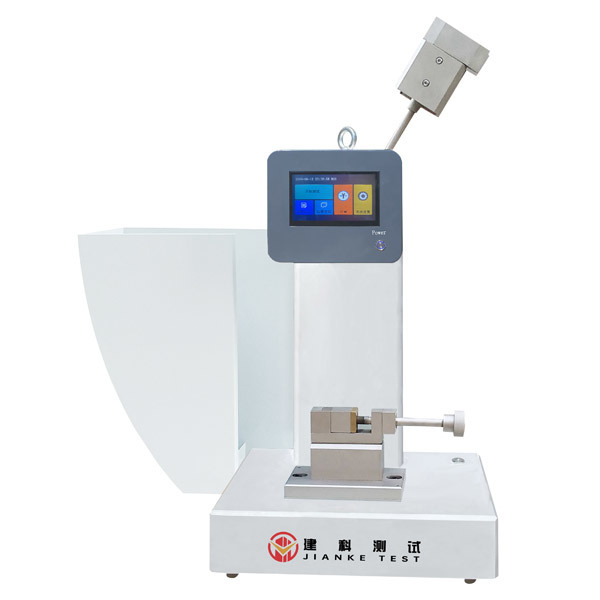

JKJJ-5A Izod impact testing machine

Used for determining the impact toughness of rigid plastics (including plates, pipes, plastic profiles), reinforced nylon, fiberglass, ceramics, cast stone, electrical insulation materials and other non-metallic materials.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 1843 Plastics - Determination of Izod Impact Strength;

JB/T 8761 Plastics Izod Impact Test;

GB/T 2611 General Technical Requirements for Testing Machines;

ISO 180;

Product Features:

The instrument adopts high-hardness and high-precision bearings, and uses shaftless photoelectric sensors, fundamentally eliminating losses caused by friction and ensuring that friction energy loss is far lower than standard requirements;

Intelligently prompts working conditions according to impact conditions, and interacts with experimenters in real-time to ensure the success rate of tests;

Product Parameters:

Serial Number	Item	Parameters
1	Impact speed	3.5m/s
2	Impact energy	2.75J, 5.5J (one hammer with two energy levels)
3	Maximum friction loss energy	<0.5%
4	Energy display accuracy	0.001J (better than 0.05% accuracy)
5	Pendulum pre-lift angle	150±1°
6	Striking center distance	335mm
7	Pendulum torque	T2.75=1.47372Nm, T5.5=2.94744Nm
8	Distance from impact blade to upper surface of jaw	22mm±0.2mm
9	Blade fillet radius	R(0.8±0.2)mm
10	Angle measurement accuracy	1 minute
11	Power supply voltage	220V±10% 50Hz

Product Configuration (Subject to final order):

Serial Number	Name	Model/Origin	Quantity
1	Main machine	Jianke	1 set
2	Hammer		1 piece
3	Power cord		1 piece
4	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
