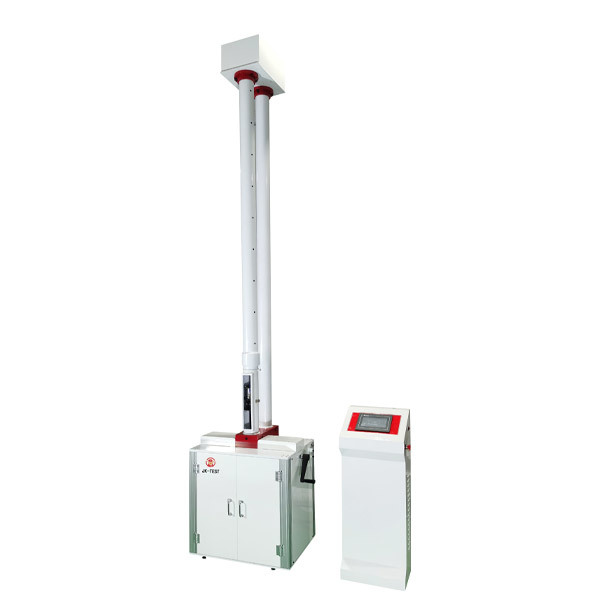

JKLC-315M/JKLC-450M/ JKLC-630M Drop weight impact testing machine

Suitable for determining the impact toughness of pipes such as PVC-U, PVC-C, PP, PE pipes, and plastic pipes for underground communication pipelines.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Suitable for determining the impact toughness of pipes such as PVC-U, PVC-C, PP, PE pipes, and plastic pipes for underground communication pipelines.

Standards Compliance:

ISO 3127

Product Features:

Three-level protection: Chamber door safety protection, observation window safety protection, upper and lower limit safety protection;

Rapid lifting: Equipped with a high-torque stepper motor, the lifting speed can reach 250mm/s, and it can reach 2 meters from zero in as fast as 8 seconds;

Intelligent hovering: This machine adopts a multi-stage speed control program to ensure stable parking of the hammer with no deviation in the control position;

Pneumatic connection and release: Uses a more powerful and non-burning pneumatic structure. The hammer connection uses 300N long-stroke double cylinders with a cowhide rubber plate connection surface, ensuring stable hammer connection without damaging the hammer head. The hammer release also uses a pneumatic structure, fundamentally solving the problem of cable breakage due to long-term bending and electric leakage;

Modular assembly: The mechanical part adopts a standard aluminum alloy profile assembly structure, and the electrical part uses a 7-inch touch screen and Delta PLC, featuring modular installation, lightweight structure, and high strength;

Main components: Airtac cylinders, Delta touch screen and PLC, Mean Well power supply. All electrical, mechanical, and software parts are equipped with safety protection measures;

Product Parameters:

Serial Number	Item	JKLC-315M		JKLC-450M		JKLC-630M
1	Drop weight mass	0.25kg～16kg (combined type)
2	Hammer head specifications	D25mm, D90mm (can be customized by the customer)
3	Maximum pipe diameter	315mm		450mm		630mm
		Customizable
4	Drop height	50mm～2000mm, indication error not exceeding ±2mm
5	Deviation between impact center and fixture center	≤2mm
6	Support plate angle	120°
7	Power supply	220VAC±10% (single-phase three-wire, neutral, live, ground)
8	Host dimensions	700×700×3300mm	730×700×3650mm		950×700×3900mm
9	Control cabinet dimensions	≈500×400×1200mm
10	Net weight	≈260kg	≈300kg		≈360kg

Product Configuration (Subject to final order):

Serial Number	Name	Origin	Quantity
1	Main machine	Jianke	1 set
2	Electric control box	Jianke	1 set
3	Drop weight body	Jianke	1 set
4	Power cord		1 piece
5	V-shaped iron	Jianke	2 pieces
6	Operating tools (wrenches)		1 set
7	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
