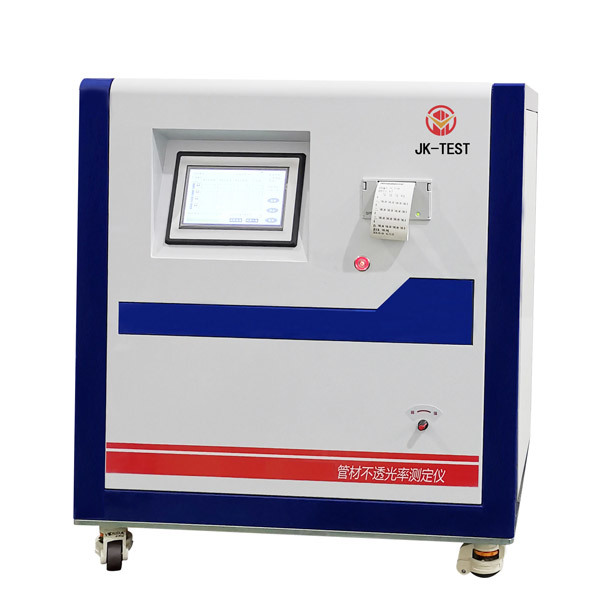

JKTG-40 Pipe opacity tester

The Pipe Opacity Tester is used to determine the opacity of plastic pipes and fittings (with results displayed as a percentage).

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

The Pipe Opacity Tester is used to determine the opacity of plastic pipes and fittings (with results displayed as a percentage).

Standards Compliance:

GB/T 21300 Determination of Opacity of Plastic Pipes and Fittings;

ISO 7686 Determination of Opacity of Plastic Pipes and Fittings;

Product Features:

Can test up to four samples simultaneously; if fewer than four samples are available, testing can be done by selection;

Adopts an industrial-grade touch screen with strong anti-interference capability as the human-machine interface, making the operation process simple and convenient;

The luminous flux collection system uses a high-precision light collector and at least 24-bit analog-to-digital conversion circuit;

Has the function of automatic identification, positioning, tracking, and mobile testing for four samples and 12 measuring points;

Controlled by an industrial touch screen, with functions of automatic analysis, recording, storage, and display;

The instrument has a reasonable structure, stable performance, high efficiency, energy saving, simple operation, and convenient maintenance;

Product Parameters:

Serial Number	Item	Parameters
1	Control method	RM core board control, fully automatic test process, touch screen operation and display
2	Pipe diameter range	Φ16～Φ40mm
3	Luminous flux collection system	Adopts high-precision light collector and 24-bit analog-to-digital conversion circuit
4	Light wavelength	545nm±5nm, using LED energy-saving standard light source
5	Luminous flux resolution	±0.01%
6	Luminous flux measurement error	±0.05%
7	Grating	5 specifications: 16, 20, 25, 32, 40
8	Automatic in/out warehouse speed	384mm/min
9	Automatic in/out warehouse moving distance	160mm±0.5mm
10	Positioning accuracy of sample tracking system	±0.1mm
11	Sample holder	5 pieces, specifications are 16, 20, 25, 32, 40 respectively
12	Positioning function	With automatic sample positioning to ensure that the sample surface is perpendicular to the incident light
13	Power supply voltage	220V±10% 50Hz (must be reliably grounded)
14	Machine power	500W
15	Host dimensions (lengthwidthheight)	≈600x450x700mm
16	Host weight	≈40kg

Product Configuration (Subject to final order):

Serial Number	Name	Origin	Quantity
1	Main machine	Jianke	1 set
2	Power cord		1 piece
3	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
