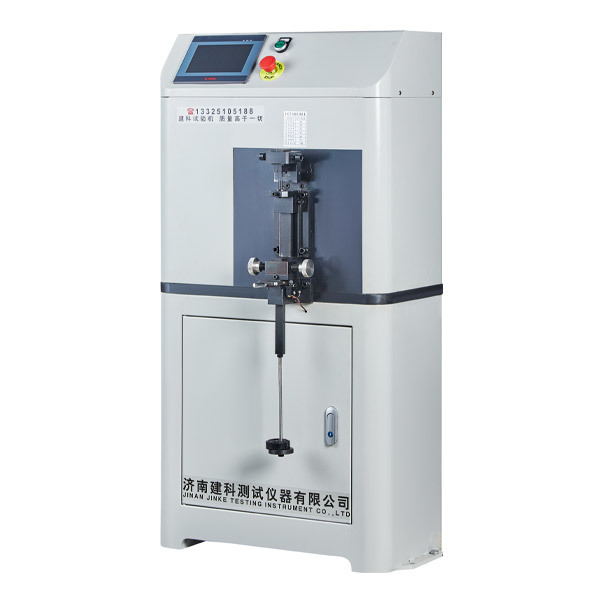

JWJ-10 / JWJ-13 Electric Wire Repeating Bending Machine

Used for repeated bending tests of metal wires to inspect the performance of metal wires in withstanding plastic deformation during repeated bending and the defects displayed.

Classification :

Bending Torsion Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used for repeated bending tests of metal wires to inspect the performance of metal wires in withstanding plastic deformation during repeated bending and the defects displayed.

Standards Compliance:

GB/T 238 Metallic Materials - Wire - Repeated Bending Test Method

Product Features

Equipment structure: All-in-one machine with compact structure and small footprint;

Control mode: Fully automatic with Chinese touch screen, easy to operate;

Number of bends: Arbitrarily set;

Product Parameters:

Serial Number	Item	JWJ-10	JWJ-13
1	Specimen diameter	Φ1-Φ10mm	Φ1-Φ14mm
2	Bending angle	±90°
3	Maximum counting range	999999 times
4	Display mode	Color touch screen
5	Bending speed	≤60rpm
6	Equipment dimensions	6005001200mm
7	Machine weight	≈200Kg
8	Motor power	1.5kW
9	Power supply	220V, 50HZ

Product Configuration (Subject to final order):

Serial Number	Name	JWJ-10	JWJ-13	Quantity
1	Main machine			1 set
2	Working shaft			1 piece
3	Random tools	Hexagon wrenches: 5#, 6#, 10#		1 set
4	Guide sleeves	Φ1-1.5, Φ1.5-2, Φ2-3, Φ3-4, Φ4-6, Φ6-8, Φ8-10	Φ1-1.5, Φ1.5-2, Φ2-3, Φ3-4, Φ4-6, Φ6-8, Φ8-10, Φ10-13	1 set each
5	Jaws	Φ1-1.5, Φ1.5-2, Φ2-3, Φ3-4, Φ4-6, Φ6-8, Φ8-10	Φ1-1.5, Φ1.5-2, Φ2-3, Φ3-4, Φ4-6, Φ6-8, Φ8-10, Φ10-13	1 set each
6	Equipment files	Instruction manual, certificate of conformity, packing list		1 copy

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
