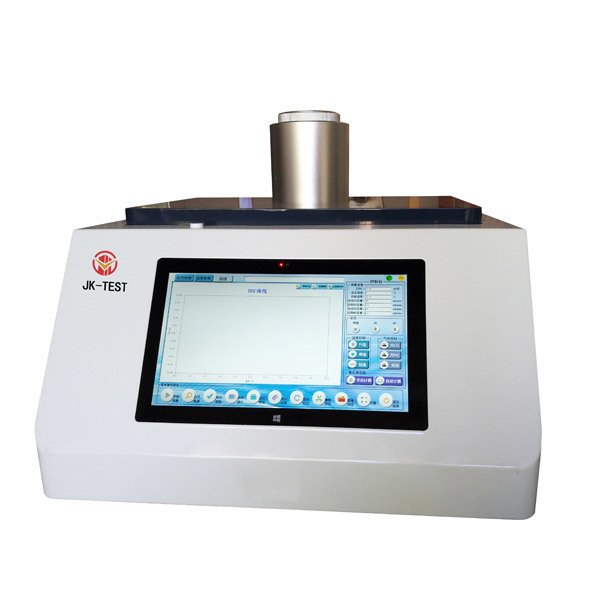

KDSC-500B Differential Scanning Calorimeter

Used for testing and analyzing parameters such as melting point, enthalpy change, glass transition temperature, phase transition temperature, and kinetics. Widely applied in fields including plastics, rubber, coatings, food, pharmaceuticals, biological organisms, inorganic materials, metal materials and composites, as well as plastic pipes.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 19466.2 Plastics - Differential Scanning Calorimetry (DSC) - Part 2;

GB/T 19466.3 Plastics - Differential Scanning Calorimetry (DSC) - Part 3;

ISO 11357-2 Part 2: Determination of glass transition temperature;

ISO 11357-3 Part 3: Determination of melting and crystallization temperatures and enthalpies;

Product Features:

Compact furnace body with fast heating and cooling;

High-resolution data acquisition with high-precision, low-drift signal collection;

Intelligent adaptive single-chip microprocessor temperature control system;

Pt100 platinum resistor used for measurement and temperature control, with constant temperature accuracy up to 0.1℃;

Mass flow meter used for gas flow measurement, with flow accuracy up to 0.1ml/min;

Fast gas switching speed and short stabilization time;

Color liquid crystal display with rich content, showing differential thermal signals, set stability, oxygen flow, nitrogen flow and other information on the same screen;

USB communication interface, with software automatically searching for USB ports, featuring strong operability;

Management software adaptively supports various operating systems such as winxp, win7, win8, win10, including 32-bit and 64-bit versions, with Chinese-English switching function;

Intelligent management software that automatically performs oxidation induction tests and temperature calibration tests, and automatically calculates test results;

Powerful management software capable of calculating parameters such as oxidation induction period, extrapolated onset temperature, glass transition temperature, enthalpy change, and enthalpy change ratio;

Product Parameters:

Serial Number	Item	Parameters
1	Temperature range	Room temperature ~ 500℃
2	Temperature resolution	0.1℃
3	Programmed temperature control rate	1~90℃/min
4	Heating rate	1～30℃/min
5	DSC range	±10, ±20, ±40, ±100, ±160, ±200mW, automatically switchable
6	Differential thermal signal measurement range	-200.00～200.00
7	Differential thermal signal measurement accuracy	0.02mW
8	Gases	Oxygen, nitrogen (provided by customer)
9	Gas flow rate	200ml/min
10	Gas pressure	0.2MPa
11	Gas flow accuracy	0.2ml/min
12	Temperature control mode	Heating, constant temperature (fully automatic program control)
13	Curve scanning	Heating scan
14	Working power supply	AC220V 50Hz

Product Configuration (Subject to final order):

Serial Number	Name	Origin	Quantity
1	Main machine	Jianke	1 set
2	Computer		Provided by customer
3	Software	Jianke	1 set
4	Data cable		1 piece
5	Aluminum crucibles	Φ6.7×2.5mm	100 pieces
6	Power cord		1 piece
7	Connection cable	USB port	1 piece
8	Air pipes		1 set
9	Nitrogen gas and pressure reducing valve		Provided by customer
10	Oxygen gas and pressure reducing valve		Provided by customer
11	Equipment files	Instruction manual, certificate of conformity, packing list	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
