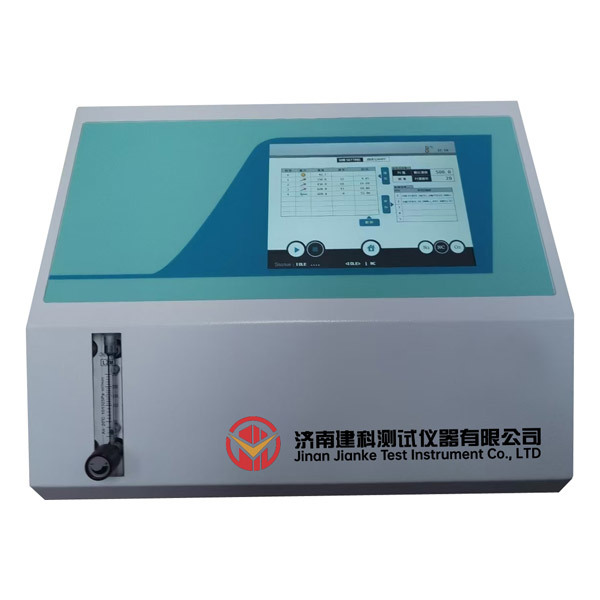

KTH-990A Carbon Black Content Tester

Used for determining the carbon black content in polyethylene, polypropylene, and polybutylene plastics.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used for determining the carbon black content in polyethylene, polypropylene, and polybutylene plastics.

Standards Compliance:

GB/T 2951.41 General Test Methods for Insulating and Sheathing Materials of Cables and Optical Cables;

GB/T 3515 Determination of Carbon Black Content in Rubber - Pyrolysis Method;

GB/T 13021 Determinator for Carbon Black Content in Polyethylene Pipes and Fittings (Thermogravimetric Method);

ASTM D1603 and other related test standards such as General Test Methods for Insulating and Sheathing Materials of Cables and Optical Cables;

Product Features:

Integrated design of heating furnace body and control system, facilitating instrument management for users;

High degree of automation: Simply set the temperature value and heating time, and the instrument will automatically heat up to the set value;

High temperature control accuracy, wide temperature range, and high uniformity of furnace temperature;

Large-screen LCD touch screen display, with intuitive and simple operation;

Excellent constant temperature function, with adjustable constant temperature time and high constant temperature accuracy;

The instrument can set any number of different heating time periods, each with different heating temperatures, heating rates, and constant temperature times;

Comprehensive parameter display: showing the set number of groups, theoretical temperature, actual temperature, heating time (or constant temperature time);

During the operation of the instrument, the set parameters and heating or constant temperature time can be viewed;

Product Parameters:

Serial Number	Item	Parameters
1	Display mode	8-inch capacitive touch screen
2	Furnace size	Φ31×300, ±5mm
3	Heating element	High-temperature alloy wire
4	Heating zone length	200mm
5	Constant temperature zone length	100mm
6	Operating temperature	Room temperature～1200℃
7	Temperature control mode	Intelligent programmable control
8	Sensor sensitivity	0.01℃
9	Gas path control	Two paths
10	Power supply voltage	220V±10%, 50Hz (must be reliably grounded)

Product Configuration (Subject to final order):

Serial Number	Name	Origin	Quantity
1	Main machine	Jianke	1 set
2	Air pipe		1 set
3	Nitrogen gas and pressure reducing valve		Provided by customer
4	Oxygen gas and pressure reducing valve		Provided by customer
5	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
