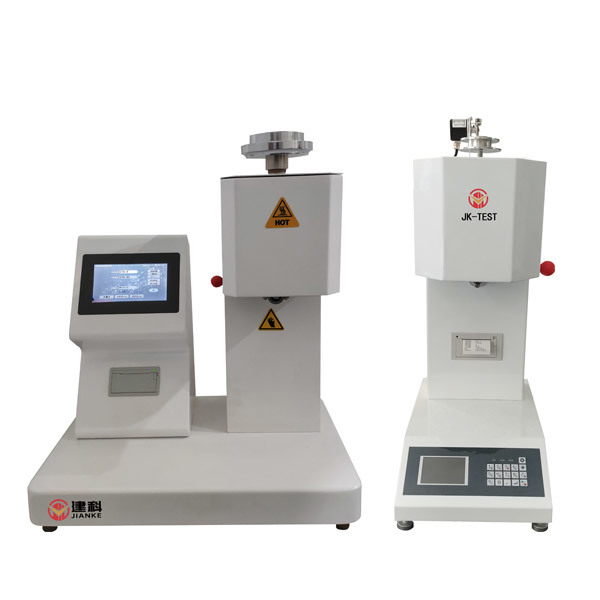

KXNR-400C / KXNR-400B Melt Flow Rate Tester

An instrument used to determine the melt mass flow rate (MFR; unit: g/10min) and melt volume flow rate (MVR; unit: cm³/10min) of thermoplastic plastics.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

An instrument used to determine the melt mass flow rate (MFR; unit: g/10min) and melt volume flow rate (MVR; unit: cm³/10min) of thermoplastic plastics.

Standards Compliance:

GB/T 3682 Determination of Melt Mass Flow Rate and Melt Volume Flow Rate of Thermoplastic Plastics;

GB/T 3682.1 Plastics - Determination of Melt Mass Flow Rate (MFR) and Melt Volume Flow Rate (MVR) of Thermoplastic Plastics;

JB/T 5456 Technical Specification for Melt Flow Rate Testers;

ISO 1133;

Product Features:

Equipped with manual and automatic cutting functions;

The cutter uses spring steel and adopts a straight knife design, ensuring cutting efficiency while enhancing reliability. It eliminates the need for frequent cutter position adjustments during tests and prevents cutter jamming or motor damage;

Allows input of cut-off mass on the printing interface for automatic calculation of melt index;

Enables input of weight mass on the printing interface, ensuring the completeness of future test data;

Comes with a thermal printer for direct output of test data;

Maximum cutting interval up to 999 seconds;

Product Parameters:

Serial Number	Item	KXNR-400C	KXNR-400B
1	Display mode	Touch screen display	LCD display
2	Measurement method	Mass method (MFR)/Volume method (MVR)	Mass method (MFR)
3	Constant temperature range	100～450℃ (any point can be set, with temperature correction function)
4	Temperature display accuracy	0.01℃
5	Temperature control accuracy	±0.2℃
6	Timing range	0.1～999 seconds
7	Timing accuracy	0.1 second
8	Cutting method	Manual and automatic
9	Printing method	Mini printer, capable of printing test reports
10	Die material	Tungsten carbide
11	Die diameter	2.095±0.005 mm
12	Die outlet length	8.000±0.025mm
13	Barrel diameter	Φ9.550±0.025mm
14	Barrel length	152±0.1mm
15	Piston head diameter	9.475±0.015mm
16	Piston head length	6.350±0.100mm
17	Power supply voltage	220V±10% 50Hz 1KW

Product Configuration (Subject to final order):

Serial Number	Name	Model/Origin	Quantity
1	Main machine	Jianke	1 set
2	Weights	0.325kg, 0.875kg, 1.835kg, 2.500kg, 2.915kg, 3.475kg, 4.675kg, 5.000kg	1 piece each
3	Level		1 piece
4	Die	Jianke	1 piece
5	Die cleaning rod		1 piece
6	Barrel cleaning rod	Φ6.7×2.5mm	1 piece
7	Loading rod		1 piece
8	Hopper	USB port	1 piece
9	Sampling tray		1 piece
10	Mini printer		1 piece
11	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
