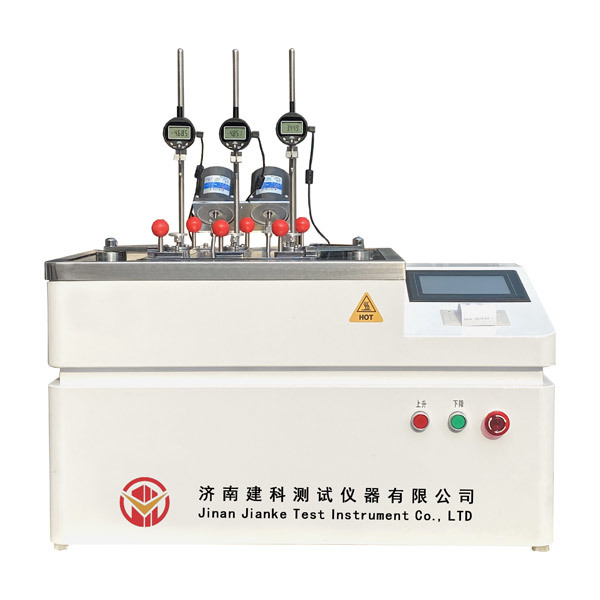

KXRW-300MT Vicat softening temperature tester

Used for determining the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, hard rubber, nylon, electrical insulating materials, long fiber reinforced composites, and high-strength thermosetting laminates.

Classification :

Plastic Pipe Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 1633 Determination of Vicat Softening Temperature (VST) for Thermoplastics;

GB/T 8802 Determination of Vicat Softening Temperature for Thermoplastic Pipes and Fittings;

GB/T 1634 Test Method for Heat Distortion Temperature of Plastics Under Bending Load;

ISO 2507;

ISO 75;

ISO 306;

ASTM D1525;

ASTM D648;

Product Features:

Test frame lifting system: Electric lifting;

Control system: Touch screen control, displaying temperature and displacement, drawing test curves, and capable of printing test curves and test data;

Safety protection: Multiple software and hardware safety designs such as mechanical temperature upper limit protection switch, software temperature upper limit protection, automatic stop after test completion, and administrator operation key, ensuring safe and stable operation of the test;

High-precision measurement and control system: High-performance temperature sensors and capacitive grid digital micrometers for accurate measurement, with heating rate error less than 0.5℃;

Product Parameters:

Serial Number	Item	KXRW-300MT-3	KXRW-300MT-4		KXRW-300MT-6
1	Temperature control range	Room temperature～300℃
2	Maximum temperature error	±0.5℃
3	Maximum number of test stations	3 channels	4 channels		6 channels
		Customizable
4	Heating rate	50℃/h, 120℃/h, or any setting between 50-120℃/h
5	Temperature measurement points	1 point Expandable to 3 points		1 point Expandable to 4 points		1 point Expandable to 6 points
6	Deformation measurement range	0～10mm
7	Maximum deformation error	±0.005mm
8	Deformation resolution	0.001mm
9	Specimen support span	64mm, 100mm
10	Heating power	4KW
11	Test loading and lifting method	Electric lifting
12	Medium used	Methyl silicone oil or transformer oil (provided by user)
13	Cooling method	Natural cooling/tap water cooling External low-temperature water tank water circulation cooling (optional)
14	Power supply	220V

Product Configuration (Subject to final order):

Serial Number	Name	Origin and Purpose	Quantity
1	Main machine	Jianke	1 set
2	Test frame	Jianke	Number of stations × 1
3	Heat distortion indenter	Jianke	Number of stations × 1
4	Vicat indenter	Jianke	Number of stations × 1
5	Embedded touch screen	With built-in software	1 set
6	Power cord	Jianke	1 piece
7	Weights	Jianke	1 set
8	Digital micrometer	Jianke	Number of stations × 1
9	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
