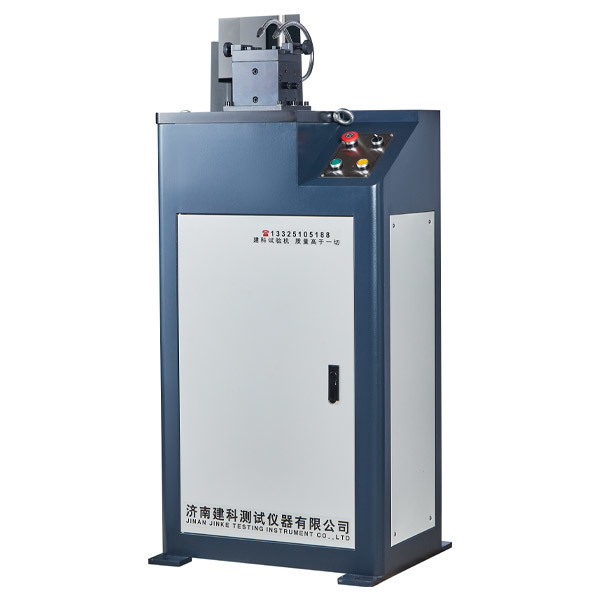

LY71-UV Impact Specimen Broaching Machine

Used for the drawing and forming of V-type and U-type specimens for metal impact tests.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Used for the drawing and forming of V-type and U-type specimens for metal impact tests.

Standards Compliance:

GB/T 229 Metallic Materials - Charpy Notch Impact Test Method

Product Features:

Driven by a hydraulic oil pump, capable of completing the drawing of two impact specimens (both V-type and U-type) in 8 seconds;

The specimen broach is made of W18Cr4V material, featuring high hardness, good wear resistance, and high precision in drawing impact specimens;

Product Parameters:

Serial Number	Item	Technical Indicators
1	Processed specimen notch type	U2 type/V type 2mm (2mm deep)
2	Size of processed specimens	10×10 (7.5, 5, 2.5) ×55 mm
3	Transmission mode	Hydraulic transmission
4	Broach material	W18Cr4V
5	Broaching speed	2.5m/min
6	Working stroke	350mm
7	Power supply	Three-phase four-wire system 380V 50Hz, main motor 0.37KW
8	Weight	≈100kg

Product Configuration (Subject to final order):

Serial Number	Item	Model	Quantity
1	Main machine		1 set
2	Broach	U-type, V-type	1 each
3	Equipment files	Instruction manual, certificate of conformity, packing list	1 set
