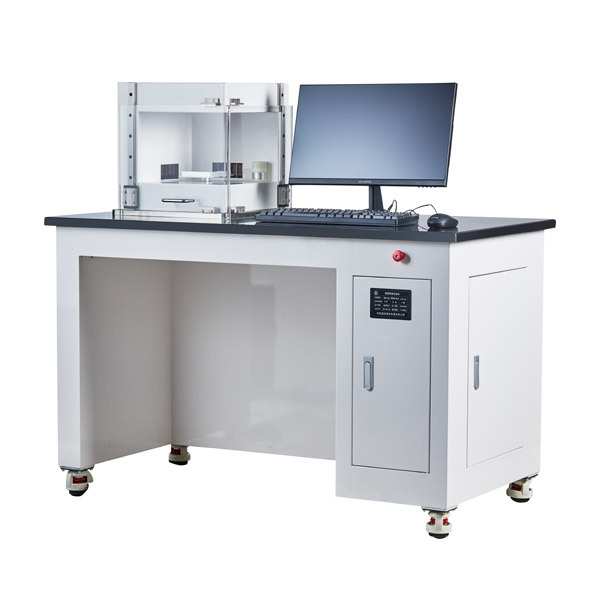

MD-Auto-I Building Materials Apparent Density Testing Machine

Used for determining the apparent density deviation of building materials and other materials (when the test piece is within the measurement range of the sensor). The equipment adopts imported non-contact sensors, electromagnetic force internal calibration weight sensors, and multi-channel automatic collection, which greatly improves detection efficiency.

Classification :

Special Testing Machine Series

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Standards Compliance:

GB/T 6342 Rigid Cellular Plastics and Rubbers - Determination of Linear Dimensions;

GB/T 6343 Rigid Cellular Plastics and Rubbers - Determination of Apparent Density;

GB/T 8810 Rigid Cellular Plastics - Determination of Water Absorption;

GB/T 8813 Rigid Cellular Plastics - Determination of Compressive Properties;

GB/T 10801.1 Rigid Polyurethane Foam for Thermal Insulation;

GB/T 10801.2 Extruded Polystyrene Foam for Thermal Insulation;

Product Features:

With a single click of the mouse, automatic measurement of length (5 measuring points, 3 measurements per point) + width (5 measuring points, 3 measurements per point) + thickness (5 measuring points, 3 measurements per point) + weight and other data is completed;

Industrial computer control for more stable operation;

Industrial-grade electromagnetic force weighing module with functions such as internal calibration, seven-level anti-vibration filtering, overload protection, and temperature compensation;

Imported non-contact laser sensor with high testing accuracy and good repeatability;

Marble tabletop, shockproof and wear-resistant;

Raw data: Measured data can be saved and exported, eliminating the need for manual recording of original records and improving detection efficiency;

Data upload: Measurement data can be connected to the detection management system for automatic upload, realizing digital management;

Sample information: Supports scanning of sample barcodes with a scanner to improve detection efficiency;

Product Advantages:

Serial Number	Traditional Method	This Product
1	Measuring instruments: Vernier caliper + electronic balance	Measuring instrument: Building material apparent density testing machine
2	Measurement method: Manual measurement, manual weighing, manual calculation, manual recording, each done repeatedly	Testing efficiency of this product (5 pieces/group): Set sample information, 5 placements + 5 mouse clicks to complete all measurements, save/print original records, and real-time upload to the detection system.
3	Amount of dimension measurement data (5 pieces/group): 225
4	Median data statistics (5 pieces/group): 75
5	Median average calculations (5 pieces/group): 15
6	Mass + volume + apparent density calculations (5 pieces/group): 15
7	Total original data entries (5 pieces/group): 330
8	Recording method: Manual recording
9	Calculation method: Manual calculation

Product Parameters:

Serial Number	Item	Parameters
1	Number of dimension sensors	15 imported non-contact sensors
2	Dimension sensor detection range	±100mm
3	Dimension sensor full-scale range	200mm
4	Dimension sensor linear accuracy	±0.5% F.S.
5	Dimension sensor measurement repeatability	60um
6	Dimension sensor temperature drift characteristic (reference value)	±0.08% F.S./℃
7	Applicable test piece size	100×100×(10～100)mm
8	Maximum capacity of weight sensor	200g
9	Weight sensor readability	0.001g
10	Weight sensor weighing repeatability	±1%
11	Computer type	Industrial computer (standard with 15 dimension channels + 1 weight channel, expandable)
12	Main machine dimensions	1300×700×1200mm
13	Equipment weight	Approximately 200kg
14	Voltage and power	220V, 0.5KW

Product Configuration:

Name	Content	Remarks
Dimension sensor	Imported original	15 pieces
Weight sensor	Electromagnetic force, industrial grade	1 piece
Industrial computer	Including display, standard with 16 channels	1 set
Keyboard/mouse	Brand	1 set
Mouse pad		1 piece
Main machine	Marble tabletop, Foma wheels	1 set
Protective cover	Plexiglass, installed on the main machine	1 piece
Dimension calibration piece	Stainless steel	1 piece
Weight calibration piece	200g	1 piece
Technical data	Instruction manual, packing list, certificate of conformity	1 set
Testing machine software	Pre-installed in the computer, including encryption dog	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
