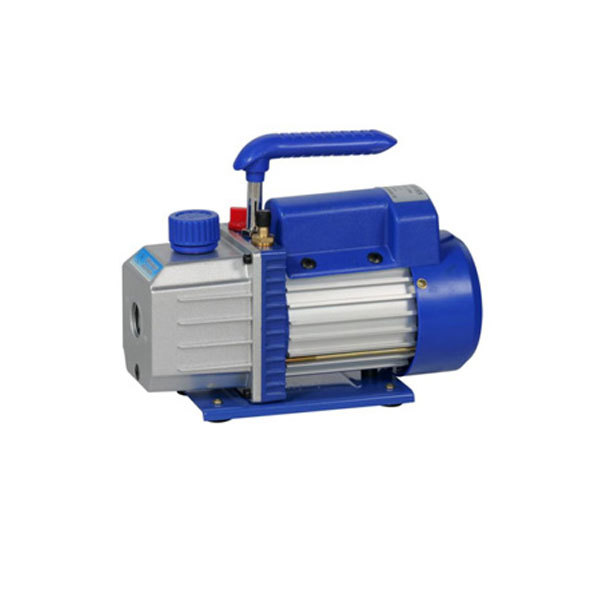

RS single-stage-2RS double-stage vacuum pump

It is suitable for various vacuum pumping applications such as vacuum refrigeration, automobile maintenance, medical equipment, vacuum packaging, gas analysis, and printing machinery.

Classification :

General Electrochemical Instruments

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Overview of Application

It is suitable for various vacuum pumping applications such as vacuum refrigeration, automobile maintenance, medical equipment, vacuum packaging, gas analysis, and printing machinery.

Product Features

Anti-oil return design: The air inlet channel is specially designed to prevent oil backflow from contaminating the evacuated container and pipelines when the pump is stopped.
Eco-friendly design: The oil tank adopts a compartment structure, and an oil-gas separation device is installed at the exhaust port, which eliminates oil injection and reduces oil mist pollution.
Motor with aluminum alloy shell: It has high heat dissipation efficiency, ensuring long-term continuous normal operation, and features good appearance quality.
Integrated design: The motor and pump are integrated, making the product more compact, lightweight and reasonable in structure.
Special design for harsh environments: Tailored for low-temperature and low-voltage environments, ensuring normal startup even under low ambient temperatures in winter.
Shock-absorbing rubber feet: Reduces vibration and noise during operation.

Main Technical Parameters

Single-Stage Series

Model	Voltage	Pumping Speed (CFM)	Ultimate Pressure	Power (W)	Oil Capacity (ml)	Dimensions (mm)	Weight (Kg)	Inlet Thread
RS-1	220V 50HZ	3.6	5Pa	150	220	280122240	6.8	7/16-20, M12×1.25
RS-2	220V 50HZ	7.2	5Pa	250	300	320128260	9	7/16-20, M12×1.25
RS-4	220V 50HZ	14.4	5Pa	550	650	375135280	12	7/16-20, M12×1.25
RS-6	220V 50HZ	21.6	5Pa	750	850	420145330	18	7/16-20, M12×1.25

Two-Stage Series

Model	Voltage	Pumping Speed (CFM)	Ultimate Pressure	Power (W)	Oil Capacity (ml)	Dimensions (mm)	Weight (Kg)
2RS-1	220V 50HZ	2.3	2Pa	120	250	280110215	9.5
2RS-2	220V 50HZ	4.0	2Pa	180	330	290115220	10
2RS-3	220V 50HZ	4.8	2Pa	250	370	360135275	13
2RS-4	220V 50HZ	8.0	2Pa	370	550	430142280	26

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
