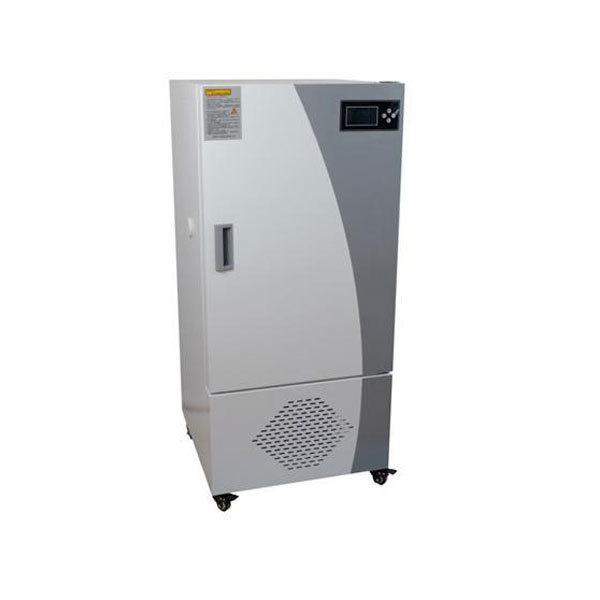

SHX-IV Biochemical Incubator

It is equipped with a two-way temperature regulation system (refrigeration and heating) and controllable temperature function. As an indispensable laboratory equipment for scientific research and teaching departments in botany, biology, microbiology, genetics, virology, environmental protection, etc., it is widely used in constant temperature tests, culture assays, environmental tests, and more.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Application

Product Features

Acrylic panel with 4.5-inch large LCD screen for full-screen operation and display of multiple data. It adopts adaptive temperature control, which automatically determines the on/off temperature points of the compressor, featuring high accuracy and no overshoot at high temperatures. It also has functions including power-off memory, power-off compensation, constant-value operation, timed operation, and automatic stop.
Double-door structure: After opening the outer door, the internal conditions of the working chamber can be observed through the inner glass door without affecting the temperature. An LED tube is built-in for easy sampling at night.
The outer shell is made of high-quality cold-rolled steel plate with electrostatic spraying on the surface. The inner liner is made of stainless steel plate with a circular arc design for easy cleaning.
The shelves in the working chamber can be adjusted to any height.

Main Technical Parameters

Parameter Category	Specific Item	SHX70IV	SHX150IV	SHX250IV	SHX350IV
Model	-	SHX70IV	SHX150IV	SHX250IV	SHX350IV
Air Supply Method	-	All models: Forced convection	All models: Forced convection	All models: Forced convection	All models: Forced convection
Performance	Operating Temperature Range	All models: 5℃-60℃	All models: 5℃-60℃	All models: 5℃-60℃	All models: 5℃-60℃
	Temperature Resolution	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃
	Temperature Fluctuation	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃
	Temperature Uniformity	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃
Structure	Inner Liner Material	All models: Stainless steel plate	All models: Stainless steel plate	All models: Stainless steel plate	All models: Stainless steel plate
	Outer Shell Material	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying
	Insulation Material	All models: Polyurethane	All models: Polyurethane	All models: Polyurethane	All models: Polyurethane
	Heater	All models: Stainless steel heating tube	All models: Stainless steel heating tube	All models: Stainless steel heating tube	All models: Stainless steel heating tube
	Rated Power	640W	740W	860W	960W
	Compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor
	Refrigerant	All models: R134A	All models: R134A	All models: R134A	All models: R134A
	Lamp Tube	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)
Controller	Defrost Structure	All models: Automatic	All models: Automatic	All models: Automatic	All models: Automatic
	Temperature Control Mode	All models: Single-segment LCD, proportional band control	All models: Single-segment LCD, proportional band control	All models: Single-segment LCD, proportional band control	All models: Single-segment LCD, proportional band control
	Temperature Setting Method	All models: Touch key setting	All models: Touch key setting	All models: Touch key setting	All models: Touch key setting
	Temperature Display Method	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)
	Timer	All models: 0-9999 min/h	All models: 0-9999 min/h	All models: 0-9999 min/h	All models: 0-9999 min/h
	Operation Functions	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation
	Program Mode	All models: Standard configuration	All models: Standard configuration	All models: Standard configuration	All models: Standard configuration
	Sensor	All models: Pt100	All models: Pt100	All models: Pt100	All models: Pt100
	Additional Functions	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory
Specification	Internal Dimensions (D×W×H, mm)	340×400×500	400×470×780	500×570×850	560×615×1020
	External Dimensions (D×W×H, mm)	640×590×1110	700×670×1390	800×760×1460	860×800×1630
	Internal Volume	70L	150L	250L	350L
	Shelf Load Capacity	All models: 15Kg per layer	All models: 15Kg per layer	All models: 15Kg per layer	All models: 15Kg per layer
	Number of Shelves	2 pieces	3 pieces	3 pieces	3 pieces
	Power Supply	220V	220V
