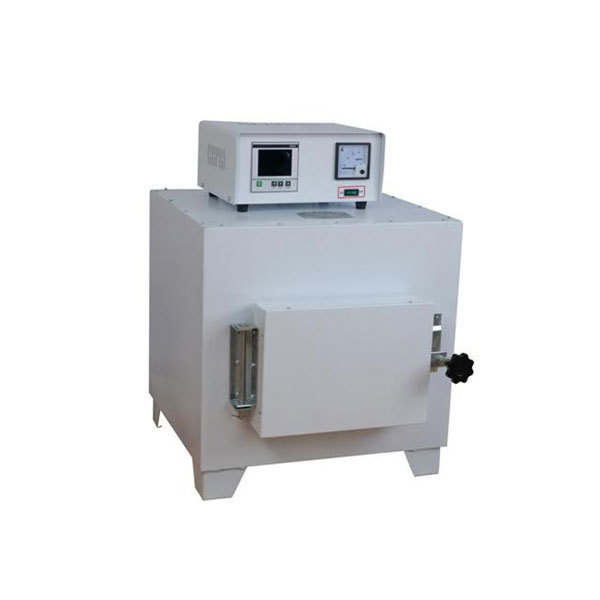

SX Box-type resistance furnace
SX Box-type resistance furnace

SX Box-type resistance furnace

This series of resistance furnaces utilizes a cyclic operation mode and is suitable for use in laboratories, industrial and mining enterprises, and scientific research institutions for elemental analysis and heating for heat treatments such as quenching, annealing, and tempering of small steel parts. It can also be used for medium-temperature heating in the sintering, dissolution, and analysis of metals and ceramics.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

Related Products
Online Message

PRODUCT DETAILS

ApplicationOverview：

This series of resistance furnaces utilizes a cyclic operation mode and is suitable for use in laboratories, industrial and mining enterprises, and scientific research institutions for elemental analysis and heating for heat treatments such as quenching, annealing, and tempering of small steel parts. It can also be used for medium-temperature heating in the sintering, dissolution, and analysis of metals and ceramics.

Product Features：

The housing is welded from high-quality steel plates and electrostatically sprayed.

The furnace chamber is constructed of aluminum silicate refractory material and features lightweight insulation bricks, ensuring efficient heat utilization.

The LCD color screen control and precision sensors perfectly combine to minimize temperature overshoot, achieve faster stabilization, and achieve superior temperature control accuracy.

The furnace door features parallel side-opening and vertical swing-opening designs.

Main technical parameters:

Model   SX-2.5-10 SX-4-10 SX-5-10 SX-8-10 SX-12-10 XL-1 SX-2.5-12 SX-5-12 SX-10-12 SX12-12
Maximum Operating Temperature 1000℃ 1200℃
Performance Temperature Fluctuation ±1%℃
  Heating Method Four-Sided Iron-Chromium Wire Heating
  Furnace Material Aluminum silicate
  Heater Iron chromium wire
  Rated power 2.5KW 4KW 5KW 8KW 12KW 4KW 2.5KW 5KW 10KW 12KW
  Exterior Cold-rolled steel plate
  Temperature control method LCD color screen control
  Program mode Optional
  Temperature Setting Method Four-touch Button Setting
  Temperature Display Measured Temperature Display, 4-digit upper display, Set Temperature Display, 4-digit lower display
  Timer 0-9999 (minutes)
  Operation Function Fixed value operation, timed operation, automatic stop
  Additional Functions Deviation correction, menu button lock, power outage compensation, power outage memory
  Sensor K type

  Inner dimensions (depth*width*height)mm 200*120 *80 300*200 *120 300*200 *120 400*250 *160 500*300 *200 325*200 *125 200*120 *80 300*200 *120 400*250 *160 500*300 *200
  External dimensions (depth*width*height) mm 400*580 *530 510*690 *530 510*690 *530 550*780 *580 640*1000 *740 545*670 *470 400*580*530 510*690*530 550*780*580 640*1000*740
Additional Configurations Available XL-1 Programmable LCD Temperature Controller with Exhaust Port
