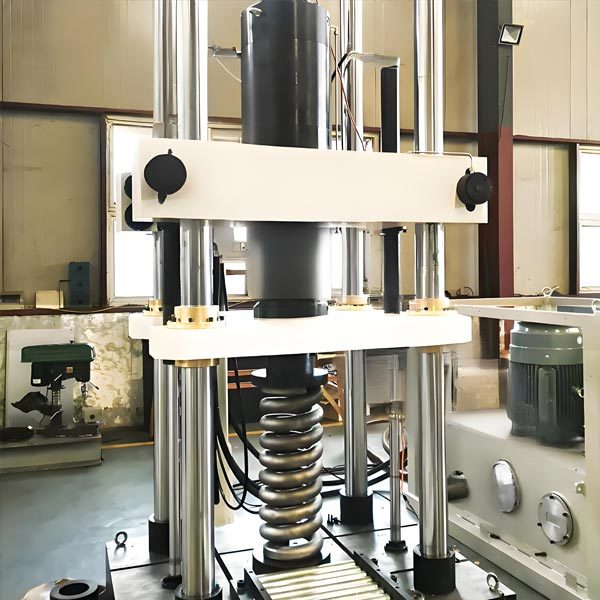

Spring Fatigue Testing Machine

The spring fatigue testing machine is mainly applicable to tests on static mechanical properties, dynamic mechanical properties, and various conventional fracture mechanical properties of metallic and non-metallic materials. By replacing fixtures, it can complete experimental research on tension, compression, high-cycle fatigue, low-cycle fatigue, fatigue cracks, etc., for materials and components.

Classification :

Fatigue Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Functions:

Specifications and Technical Parameters:

Parameter	Specification
Model	Spring Fatigue Testing Machine
Maximum test force (kN)	500kN
Test force measurement range (kN)	2%～100% FS (no range division throughout the entire process)
Test force indication accuracy	Static: <±1%, Dynamic: <±2%
Deformation measurement resolution (mm)	0.001
Maximum piston stroke (mm)	±150
Maximum tensile test space (mm) (including piston stroke)	1000
Maximum working pressure (MPa)	28
Deformation measurement accuracy	Within ±0.5% of indicated value
Tooling configuration	Centering pressure plate, rigid pressure plate
Pressure plate diameter (mm)	Φ320
Number of columns	4
Effective distance between columns (mm)	900*760mm
Sample installation method	Automatic transportation by oil cylinder
Host overall dimensions (mm)	Approximately 1520×1220×3100 (length×width×height)
Total power (kW)	Dual 37KW
Host weight (kg)	Approximately 8966KG
Hydraulic power unit weight (kg)	4216KG

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine
