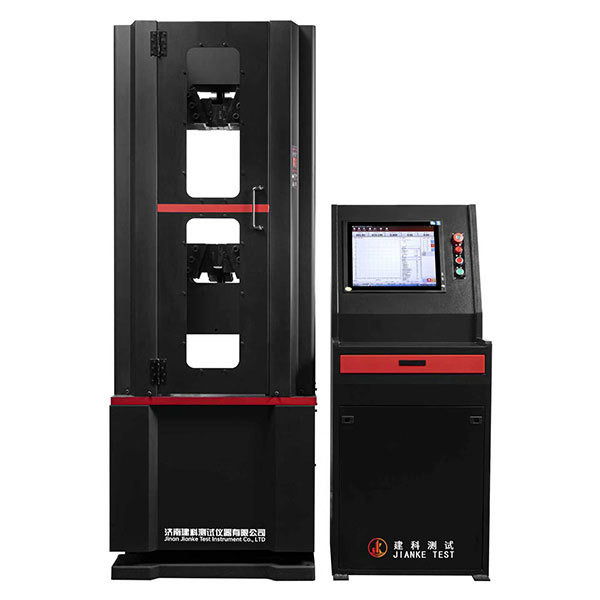

WAW-B Electro-hydraulic servo hydraulic universal testing machine
Classification :
PRODUCT DETAILS
Product Functions
This testing machine is mainly used for tensile, compression, bending, shear and other tests of metal materials. With corresponding fixtures, it can also perform tensile, compression, bending, shear, flexural and other tests for other types of specimens.
Referenced Standards
GB/T 2611 General Technical Requirements for Testing Machines
GB/T 16826 Electro-Hydraulic Servo Universal Testing Machines
JJG 1063 Verification Regulation for Electro-Hydraulic Servo Universal Testing Machines
GB/T 228 Standard for Tensile Testing Methods of Metallic Materials
GB/T 228 Metallic Materials - Tensile Testing at Room Temperature
GB 1499.2 Steel for Reinforced Concrete - Part 2: Hot-Rolled Ribbed Steel Bars
GB 1499.1 Hot-Rolled Plain Steel Bars for Reinforced Concrete
JGJ 107 Technical Specification for Mechanical Splices of Reinforcing Bars
JGJ/T 27 Test Method Standard for Welded Joints of Reinforcing Bars
Additional standards can be added as needed (not listed in detail).
Product Features
- Overall Structure: Split design of main machine, servo oil source and measurement & control computer.
- Measurement & Control System: Composed of oil tank, oil pump, motor, control valve group, sensor, servo controller, control software and computer, with high control precision and reliability.
- Space Adjustment: Adopts trapezoidal lead screws on both sides to achieve lifting and lowering through motor forward/reverse rotation, featuring a simple structure.
- Crossbeam Structure: Fully open crossbeam design for easy dust cleaning.
- Test Accuracy: Main machine structural parts are processed by precision machining centers. The servo hydraulic control system distributes flow, and high-precision spoke-type sensors measure force, ensuring the overall test accuracy of the machine.
- Specimen Clamping Mode: Hydraulic fixtures for easy operation.
- Safety Protection: Protective nets are installed in tensile and compression spaces, ensuring safety without compromising aesthetics.
Product Parameters
| Model | WAW-100B | WAW-300B | WAW-600B | WAW-1000B |
| Maximum Load (kN) | 100 | 300 | 600 | 1000 |
| Effective Measuring Range | 4%-100%F·S (No range division for full scale) | |||
| Testing Machine Accuracy Class | Class 1 | |||
| Number of Columns | 4 columns + 2 lead screws | |||
| Total Motor Power | 1.5kW | |||
| Relative Error of Indication | ±1％ | |||
| Lifting Speed of Lower Jaw (mm/min) | 300 | |||
| Maximum Tensile Space (mm) | 650 | 650 | 680 | 700 |
| Maximum Clamping Width for Flat Specimens (mm) | 75mm | 75mm | 80mm | 90mm |
| Clamping Thickness for Flat Specimens (mm) | 0-15mm | 0-15mm | 0-20mm | 0-40mm |
| Clamping Diameter for Round Specimens (mm) | Φ6-20mm | Φ10-28mm | Φ13-26mm | Φ14-40mm |
| Maximum Distance Between Bending Supports (mm) | 300mm | 300mm | 300mm | 300mm |
| Maximum Stroke of Cylinder Piston (mm) | 200mm | 200mm | 200mm | 200mm |
| Effective Space Between Two Columns (mm) | 350mm | 400mm | 450mm | 490mm |
| Control Cabinet Dimensions (L*W*H) (mm) | 650*600*1400mm | |||
| Control Cabinet Weight (kg) | 300 | |||
| Main Machine Dimensions (L*W*H) (mm) | 580x440x1700 | 630x460x1800 | 700x510x2000 | 780x540x2120 |
| Total Net Weight of Machine (kg) | 1100 | 1300 | 1600 | 2100 |
Product Configuration (Subject to Final Order)
| Item | Specification | Quantity/Remarks |
| Main Machine | Including protective net, spoke-type sensor, displacement sensor | 1 set |
| Servo Control Oil Source | Including embedded industrial computer | 1 set |
| Electronic Extensometer | YYU-100 | 1 piece |
| Round Jaws | - | 2 pairs |
| Flat Jaws | - | 1 pair |
| Pressure Plates | - | 1 pair |
| Technical Documents | Instruction manual, packing list, certificate of conformity | 1 set |
| Testing Machine Software | Pre-installed on the computer | 1 set |
Delivery Time
20 working days after the contract takes effect.
Warranty Period
1 year after acceptance of the equipment.
After-Sales Service
- Dispatch professional personnel to the site for free commissioning and operator training.
- The warranty period starts after successful acceptance, covering 1 year of free maintenance.
- Lifetime maintenance service (only charging for materials, labor, travel and other cost).
- Provide problem solutions on the same day; arrange on-site service within 24-72 hours if required.
- Free software upgrade services for life.
Customer Preparation Requirements
- Clarify the detailed test method standards referenced for the tests as much as possible.
- Provide specimens to be tested on this machine for product testing or factory inspection.
- Be responsible for receiving, storing, transporting and positioning the product.
- Contact the local metrology department for equipment calibration (preferably immediately after installation and commissioning).
- Provide the required space and power supply (380V) for equipment installation.
- Prepare 40L of 46# anti-wear hydraulic oil.
