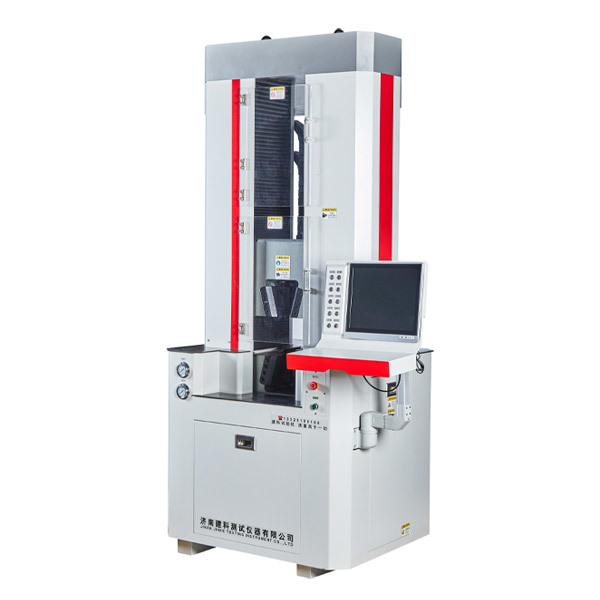

WAW Series Hydraulic Universal Testing Machine
Classification :
PRODUCT DETAILS
This testing machine is mainly used for tensile, compression, bending, shear and other tests on metal materials. It can be used for tensile, compression, bending, shear and flexural tests on other types of specimens when equipped with corresponding fixtures.
Based on standards:
ISO 6362-2；ISO 6892-2；ASTM E21-05；ASTM E8M-08；ASTM E9-89a(2000)；BS EN10002-5；BS EN10002-1
Product Features:
Overall Structure: The main unit, servo oil source, and measurement and control computer are integrated into a single design. Small footprint;
Measurement and control system: Consists of a fuel tank, servo oil pump, control valve assembly, sensors, servo controller, control software, and a computer, ensuring high control accuracy and reliability;
Shock Isolation System: The equipment is equipped with a powerful shock-absorbing system, requiring no foundation or mounting. This eliminates vibration after the specimen is broken, eliminating the need for laboratory reconstruction.
Test Accuracy: The mainframe's structural components are machined using a precision machining center. A servo-hydraulic control system distributes flow, and a high-precision spoke-type sensor measures force, ensuring a Class 0.5 test accuracy for the entire machine, exceeding national standards.
Specimen Clamping: Hydraulic clamping for easy operation;
Safety Protection: High-toughness protective netting is installed in the tension and compression spaces, ensuring both safety and aesthetics.
Equipment Positioning: A forklift compartment is provided at the bottom of the equipment, facilitating positioning and subsequent adjustments. The upper crossbeam can be lowered, allowing the equipment to easily pass through the 2-meter height limit.
Equipment Maintenance: The open crossbeam jaws provide easy maintenance. An oil drain port is located at the bottom of the equipment, allowing for easy replacement of hydraulic oil. A high-powered industrial-grade vacuum cleaner is included as standard, allowing for cleaning after testing.
Product Specifications:
| Serial Number | Specification Model | WAW-100 | WAW-300 | WAW-600 | WAW-1000 | WAW-2000 |
| 1 | Maximum Test Force (kN) | 100 | 300 | 600 | 1000 | 2000 |
| 2 | Force/Displacement/Deformation Measurement Range | 1%-100%FS | ||||
| 3 | Force/Displacement/Deformation Resolution | 1/500000FS | ||||
| 4 | Force/Displacement/Deformation Indication Accuracy | ≤±0.5% | ||||
| 5 | Force Constant Rate Control Range (FS/s) | 0.01%～3% FS | ||||
| 6 | Constant velocity displacement control range (mm/min) | 0.5～400 | 0.5～400 | 0.5～350 | ||
| 7 | Constant strain rate control range (/s) | 0.00003-0.0005 | ||||
| 8 | Speed control accuracy | ≤±2% of set value | ||||
| 9 | Maximum Ascent Speed (mm/min) | 400 | 400 | 350 | 250 | 350 |
| 10 | Maximum Descent Speed (mm/min) | 700 | 700 | 650 | 650 | |
| 11 | Tensile Test Space (mm) | 50-650 | 50-650 | 100-650 | 200-800 | 250-1050 |
| 12 | Compression Test Space (mm) | 10-610 | 10-610 | 10-610 | 10-610 | 5-805 |
| 13 | Tension Specimen Clamping Method | Hydraulic | ||||
| 14 | Flat Specimen Clamping Thickness (mm) | 0-20 | 0-30 | 0-50 | ||
| 15 | Circular Specimen Clamping Diameter (mm) | ￠6-￠22 | ￠10-￠30 | ￠13-￠40 | ￠16-￠60 | ￠20-￠70 |
| 16 | Spacing Between Supports (mm) | 375 | 375 | 375 | 375 | 420 |
| 17 | Complete voltage | AC220V±10% | 380V | |||
| 18 | Motor power (kW) | 2.3 | 2.3 | 3 | 3 | 5 |
| 19 | Mainframe Length and Width Dimensions (mm) | 910 x 700 | 1040 x 770 | 1250 x 880 | 1610 x 1170 | |
| 20 | Mainframe Height (mm) | 2080 | 2080 | 2100 | 2300 | 2940 |
| 21 | Mainframe Weight (kg) | 1400 | 1400 | 1700 | 2500 | 5100 |
ProductConfiguration (Subject to final order):
| Serial Number | Name | Contents | Quantity |
| 1 | Main unit | Universal machine main unit with hydraulic jaws | 1 unit |
| 2 | Controller | Electro-hydraulic servo universal testing machine measurement and control system | 1 set |
| 3 | Servo oil source | AC servo pump station, servo and reversing valve assembly | 1 set |
| 4 | Load sensor | High-precision Column Type | 1 set |
| 5 | Displacement Sensor | 1000mm Wire-type Displacement Sensor | 1 unit |
| 6 | Electronic Extensometer | YYU-100 | 1 unit |
| 7 | Tensile Attachment | 3 pairs of jaws (1 flat, 2 round) | 3 pairs |
| 8 | Compression Platen | Upper and Lower Pressure Plates | 1 pair |
| 9 | Measurement and Control Software | Electro-Hydraulic Servo Universal Testing Machine Measurement and Control Software | 1 set |
| 10 | Computer | Industrial Touchscreen Computer with Computer Mounting Bracket | 1 unit |
| 11 | Vacuum Cleaner | High Power | 1 set |
| 12 | Supplied Accessories | Includes tool kit and documentation (certificate of conformity, instruction manual, etc.) | 1 set |
