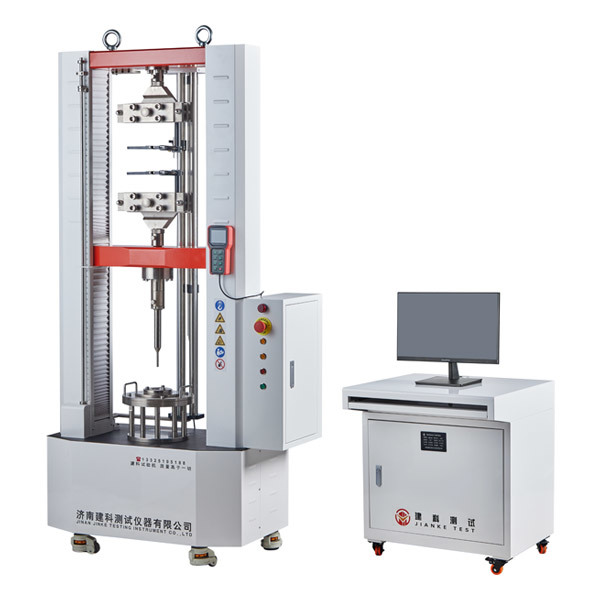

WDW Geotextile, Geomembrane, Geogrid Universal Testing Machine
Classification :
PRODUCT DETAILS
Product Functions:
This solution is applicable for testing the mechanical properties of various geosynthetic materials such as geotextiles, geomembranes, geogrids, etc. It can perform tests including: wide-width tensile test of geosynthetic joints/seams, strip tensile test, ultimate peel force test of bonding points, trapezoidal tear strength test, CBR puncture strength test, puncture strength test, breaking force test, tensile strength test, top pressure test, top breaking strength test, displacement test, top breaking displacement test, pre-load elongation rate test, maximum load elongation rate test, 2% elongation test, 5% elongation test, nominal elongation test, secant modulus test, average value and variation coefficient test, tensile creep test, and tensile creep rupture test.
Standards Compliance:
- GB/T 16491 Electronic Universal Testing Machine
- GB/T 2611 General Technical Requirements for Testing Machines
- JJG 139 Tension, Compression and Universal Testing Machines
- JJG 475 Electronic Universal Testing Machines
- GB/T 15788 Test Method for Wide Width Tensile Properties of Geosynthetics
- GB/T 17638 Geosynthetics - Short Fiber Needled Nonwoven Geotextiles
- GB/T 17641 Geosynthetics - Split Film Yarn Woven Geotextiles
- JT/T 992.1 Highway Engineering Geosynthetics - Polypropylene Short Fiber Needled Nonwoven Geotextiles
- JT/T 992.2 Highway Engineering Geosynthetics - Polyester Glass Fiber Nonwoven Geotextiles
- JT/T 925.1 Highway Engineering Geosynthetics - Steel-Plastic Geogrids
- JT/T 1087.1 Highway Engineering Geosynthetics Drainage Materials - Composite Drainage Nets
- JT/T 1124.1 Highway Engineering Geosynthetics Waterproof Materials - Plastic Waterstops
- JT/T 736 Permeable Formwork Cloth for Concrete Engineering
- GB/T 50290 Technical Specification for Application of Geosynthetics
- GB/T 16989 Test Method for Wide Width Tensile Properties of Geosynthetic Joints/Seams
- GB/T 35752 Warp-Knitted Composite Geotextiles
- GB/T 13763 Determination of Trapezoidal Tear Strength of Geosynthetics
- GB/T 17643 Geosynthetics - Polyethylene Geomembranes
- GB/T 14800 Static Puncture Test (CBR Method) for Geosynthetics
- GB/T 19470 Geosynthetics - Plastic Geonets
- GB/T 17690 Geosynthetics - Plastic Flat Yarn Woven Geotextiles
- GB/T 21825 Glass Fiber Geogrids
- GB/T 17689 Geosynthetics - Plastic Geogrids
- SL235 Testing Regulations for Geosynthetics
- JTG E50 Test Regulations for Geosynthetics in Highway Engineering
- JTG E51 Test Regulations for Inorganic Binder Stabilized Materials in Highway Engineering
- JT/T 776.3 Highway Engineering Basalt Fibers and Their Products - Basalt Fiber Geogrids
- JT/T 818 Tensile Fixtures for Glass Fiber Geogrids
- JTJ 239 Technical Specification for Application of Geosynthetics in Hydraulic Engineering
- JT/T 513 Highway Engineering Geosynthetics - Geonets
(Not listed in detail; can be added as needed)
Product Features:
- High-strength optical axes fix the upper crossbeam and worktable, forming a high-rigidity gantry-type frame main machine.
- Transmission structure consisting of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw, enabling the crossbeam to move up and down, with the test process controlled by measurement and control software.
- High-precision spoke-type/S-type load cell with a force measurement accuracy of 0.5 class.
- A variety of complete test fixtures, connected by bolts + simple nut locking, ensuring easy operation.
- Equipped with extensometers, displacement meters, and large deformation measuring instruments for accurate measurement of material deformation data.
- Powerful full-digital closed-loop, multi-channel measurement and control system with built-in various testing method standards, enabling automatic control of the test process. Data can be saved, exported, and networked with multiple companies.
- The bottom of the main machine is designed with Foma wheels/adjustable leveling feet, facilitating equipment positioning and later adjustment.
- Modular electrical control box for easy troubleshooting.
- Equipped with test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator lights for operation status prompts, voice operation prompts, and an emergency stop switch.
Product Parameters:
| No. | Parameter | Specification |
|---|---|---|
| 1 | Maximum test force | 20kN or 50kN |
| 2 | Testing machine class | 0.5 class |
| 3 | Load measurement range | 0.4%～100%FS |
| 4 | Relative error of indication | ±0.5% |
| 5 | Test force resolution | 1/±500000FS (constant resolution throughout the range) |
| 6 | Deformation measurement range | 0.2%～100% |
| 7 | Force control rate adjustment range | 0.005%～5%FS/S |
| 8 | Force control rate accuracy | When rate < 0.05%FS, within ±1% of the set value; When rate ≥ 0.05%FS, within ±0.5% of the set value |
| 9 | Deformation rate adjustment range | 0.005～5%FS/s |
| 10 | Deformation rate control accuracy | When rate < 0.05%FS/s, within ±1% of the set value; When rate ≥ 0.05%FS/s, within ±0.5% of the set value |
| 11 | Displacement rate adjustment range | 0.01～600mm/min |
| 12 | Displacement rate control accuracy | Within ±0.2% of the set value |
| 13 | Control range for constant force, constant deformation, constant displacement | 0.5%～100%FS |
| 14 | Control accuracy for constant force, constant deformation, constant displacement | When set value ≥ 10%FS, within ±0.5% of the set value; When set value < 10%FS, within ±1% of the set value |
| 15 | Maximum distance between columns | 450mm |
| 16 | Maximum moving distance of crossbeam | 800mm |
| 17 | Large deformation measurement range | 10-800mm |
| 18 | Power supply voltage | ～220V±10% 50Hz (must be reliably grounded) |
| 19 | Machine power | 750W |
| 20 | Main machine dimensions (LWH) | ≈760x450x1800mm |
| 21 | Control cabinet dimensions (LWH) | ≈350kg |
| 22 | Control cabinet weight | ≈30kg |
Product Configuration (Subject to final order):
| Name | Content | Remarks |
|---|---|---|
| Load frame | High rigidity (4 columns + 2 lead screws), high stability, double space, gantry-type load frame | 1 set |
| Drive system | AC servo speed-regulating motor and driver | 1 set |
| Measurement and control system | Full-digital closed-loop, multi-channel, multi-functional, easy to operate | 1 set |
| Load cell | 20kN or 50kN, spoke type | 1 piece |
| Handheld controller | Wired, LCD display | 1 piece |
| Geotextile large deformation extensometer | Precision type, dual encoders | 1 set |
| Geotextile wide-width tensile fixture | Nickel-plated surface, overall heat-treated | 1 set |

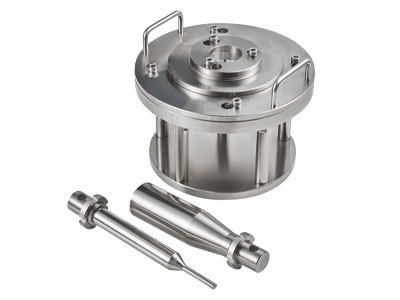

| Geotextile puncture and piercing fixture | Nickel-plated surface, heat-treated connectors | 1 set |
| Pressure plate | ф120mm, heat-treated, nickel-plated surface | 1 set |
| Computer | Branded | 1 set |
| Technical data | Instruction manual, packing list, certificate of conformity | 1 set |
| Testing machine software | Chinese/English version (optional) | 1 set |
Photos of fixtures (select as needed):
 |
 |
 |
||

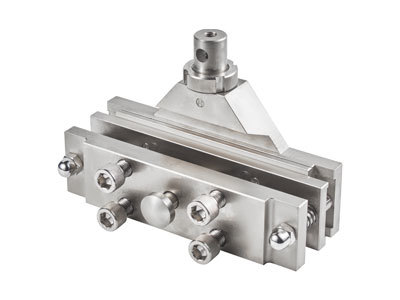

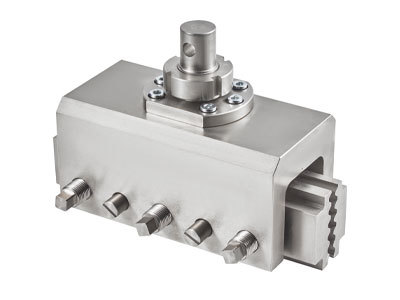

| Geotextile tensile fixture (50 kN specimen, sample width 200 mm) | Geogrid Tensile Grip (50 kN specimen, sample width 250 mm) | Geotextile and Geomembrane Burst/Punch Grip | ||
 |
 |
 |
||

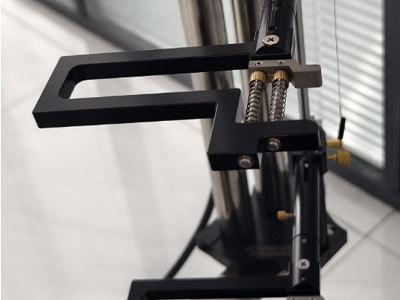

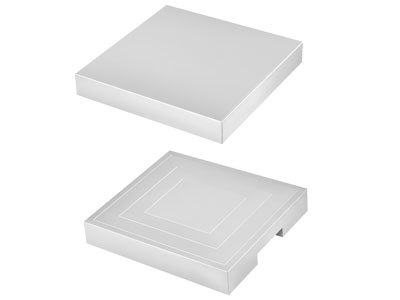

| Material Weld Point Peeling Grip | Extensometer (Elongation within gauge length for sheet specimens) | Compression Plate (Specimen compression strength or equipment calibration) | ||
Design and R&D
The overall design of the universal testing machine includes systematic designs such as the mechanical framework, sensor selection, control system architecture, electrical system, software functions, and the overall appearance of the machine.
Host:
The core components of the mainframe, such as the force-bearing frame and the tooling fixtures, are precisely processed through procedures like machining centers, milling, planing, and grinding. Special parts undergo quenching and tempering treatment to ensure that the structural performance of each mainframe meets the design requirements.
Component Heat Treatment
Sheet Metal Processing:
Sheet metal processing: The sheet metal parts for the testing machine are processed through laser cutting, bending, stamping, welding, grinding, and powder coating procedures.
Quality inspection of processed parts:
The quality of each component directly affects the performance of the entire machine. Before use, each component undergoes a series of quality inspection procedures. Usually, its size, tolerance, hardness, surface treatment, etc. are inspected.
Workshop assembly:
The mainframe components, drive motor, transmission mechanism, sensors, tooling fixtures, sheet metal, etc. are strictly assembled in accordance with the company's assembly procedures, and the corresponding data are archived for easy future reference.
Debugging Phase:
Conduct various standard tests, including load accuracy, displacement accuracy, force stability, control precision, and other related calibrations.
Machine inspection and file archiving:
Overall equipment inspection: Cleanliness inspection, impact inspection, rust prevention inspection, safety label inspection, completeness of configuration, etc.
File archiving: After the overall equipment inspection is completed, record the equipment number, configuration information of tooling and fixtures, sensor configuration information, equipment parameter settings information, etc. Both paper and electronic versions are archived for easy future reference.
| Factory inspection procedures | |||
| serial number | item | explain | "√" or "/" |
| 1 | Fixture appearance | The surface is clean, free of bumps and scratches. | |
| 2 | Appearance of the mainframe | The entire surface of the machine is clean, the paint finish is free of scratches, and the crossbeam has peeling paint. | |
| 3 | Equipment label | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 4 | Host company logo sticker | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 5 | Computer monitoring and control cabinet company logo sticker | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 6 | Workbench rubber pad | Placed on the mainframe | |
| 7 | Computer control cabinet rubber pad | Placed inside the control and measurement cabinet | |
| 8 | Data cable label | Motor wires, encoder wires, power wires, sensor wires, board card wires, etc. | |
| 9 | Data cable winding | The board card cables are tangled with the RS232 cables, and the motor cables are tangled with the encoder cables. | |
| 10 | Force sensor connector | Each S-type sensor is equipped with a connector. | |
| 11 | Pin specification and quantity | 20KN model: φ12, 3 pieces; with S-type sensor: φ12, 4 pieces | |
| 12 | Overall inspection of the box panel fastening screws | ||
| 13 | Overall inspection of the fastening screws of the distribution box | ||
| 14 | Cleaning inside of the distribution cabinet and computer cabinet | Strictly prohibit any remaining connection terminals or similar items. | |
| 15 | Computer and Accessories Configuration | Computer, monitor, keyboard, mouse, mouse pad | |
| 16 | Appearance of computer accessories | ||
| 17 | Packing list verification | ||
| 18 | Attached is the packaging. | Pack properly and protect from surface scratches | |
| 19 | Computer packaging | Clean and undamaged | |
| 20 | Mainframe packaging | Safety Loading and Unloading Sign | |
| Inspector (Signature): | |||
| Date： | |||
| Form filling instructions: Mark "√" for "Pass Inspection", mark "√" for "Pass Inspection of Accessories" on the packing list, leave blank if no such item exists, and submit it to the warehouse for filing after self-inspection is completed. | |||
