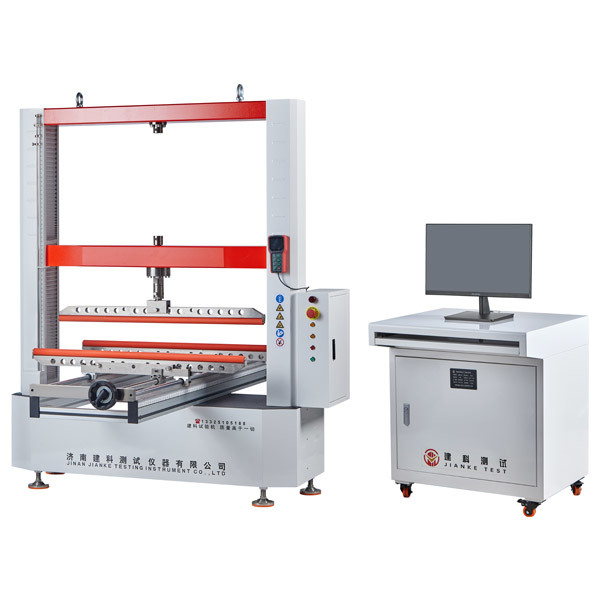

WDW Universal Testing Machine for Ceramic Tile, Stone Tile, Gypsum Board, and Wallboard
Classification :
PRODUCT DETAILS
This scheme is applicable tothe testing and research of the flexural and bending resistance of various non-metallic composite panels such as various ceramic tiles, stones, tiles, cement fiber flat panels, gypsum boards, wall bricks, gypsum blocks, aerated blocks, partition boards, and thermal insulation integrated panels.
Based on standards:
Standards ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Product Features:
High-strength optical axis secures the upper crossbeam and work surface, creating a highly rigid portal frame mainframe:
A servo motor + reducer + timing belt + pulley + precision, backlash-free ball screw transmission structure enables the vertical movement of the crossbeam. The test process is controlled by measurement and control software:
High-precision spoke-type/S-shaped force sensor with a force measurement accuracy of 0.5.
A variety of comprehensive test fixtures with pin connections and simple nut locking for easy operation;
Additional extensometers, displacement gauges, and large deformation gauges for precise material deformation measurement;
Powerful, fully digital, closed-loop, multi-channel measurement and control system with built-in testing methods and standards, automated test process control, data storage and export capabilities, and connectivity with multiple networked companies;
The bottom of the main unit is designed with wheel bearings and adjustable leveling feet for easy positioning and subsequent adjustments;
The modular electrical control box facilitates troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light and voice prompts, and emergency stop switch;
Product Parameters:
| 1 | Maximum test force | 10kN/20kN, select one |
| 2 | Testing machine level | Level 0.5 |
| 3 | Load measurement range | 0.4%～100%FS |
| 4 | Relative error of indication | Within ±0.5% |
| 5 | Test force resolution | 1/±500000FS |
| 6 | Deformation Measurement Range | 0.2%～100% |
| 7 | Force Control Rate Adjustment Range | 0.005%～5%FS/S |
| 8 | Force Control Rate Control Accuracy | Within ±1% of the set value when the rate is <0.05%FS; within ±0.5% of the set value when the rate is ≥0.05%FS |
| 9 | Deformation Rate Adjustment Range | 0.005 to 5% FS/s; |
| 10 | Deformation Rate Control Accuracy | Within ±1% of the set value when the rate is <0.05% FS/s;Within ±0.5% of the set value when the rate is ±0.05% FS/s. |
| 11 | Maximum displacement rate | 500mm/min |
| 12 | Displacement rate control accuracy | Within ±0.2% of the set value. |
| 13 | Constant force, constant deformation, and constant displacement control range | 0.5% to 100% FS |
| 14 | Constant force, constant deformation, and constant displacement control accuracy | When the setting value is ≥10%FS, the value is within ±0.5% of the setting value. When the setting value is <10%FS, the value is within ±1% of the setting value. |
| 15 | Maximum column spacing | 1100mm |
| 16 | Maximum beam travel distance | 800mm |
| 17 | Power supply voltage | 220V±10%±50Hz (must be reliably grounded) |
| 18 | Machine Power | 750W |
| 19 | Main Unit Dimensions (L*W*H) | 1450x450x1800mm |
| 20 | Measurement and Control Cabinet Dimensions (L*W*H) | 700x600x750mm |
| 21 | Machine Weight | ≈700kg |
| 22 | Control Cabinet Weight | ≈30kg |
Product Configuration (Subject to final order):
| Name | Brand/Specifications | Remarks |
| Load Frame | High-rigidity (4 columns + 2 screws), dual-space, portal load frame | 1 unit |
| Drive system | AC servo motor and driver | 1 set |
| Measurement and control system | Fully digital closed-loop, multi-channel, multi-function, easy to operate | 1 set |
| Load cell | 10kN/20kN, spoke-type | Any one |
| Handheld controller | Wired, LCD display | 1 unit |
| Tile Anti-Bending Attachment | 18≤Tile Length <48mm, Rolled Glue, Nickel-Plated Surface, Heat-Treated Connectors | 1 Set |
| Tile Anti-Bending Attachment | 48≤Tile Length <95mm, Rolled Glue, Nickel-Plated Surface, Heat-Treated Connectors | 1 Set |
| Tile Anti-Bending Attachment | Tile Length >95mm, Rolled Glue, Nickel-Plated Surface, Heat-Treated Connectors | 1 Set |

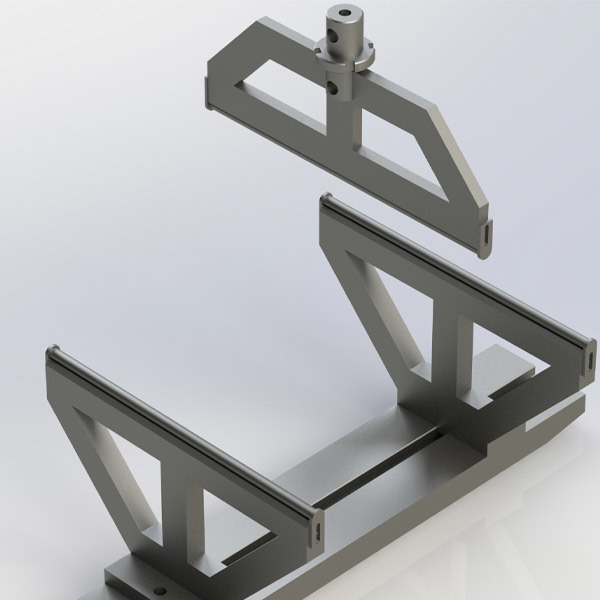

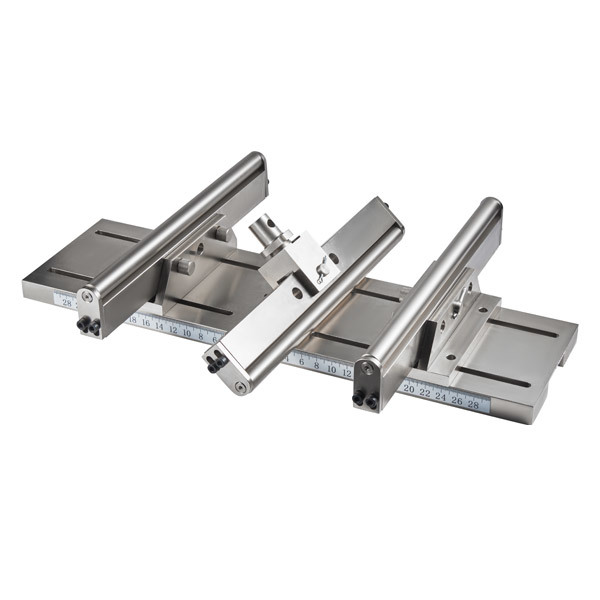

| Stone Bending Attachment | GB/T 9966.2 Figure 1 JC/T 989 Figure 3 Four-Point Bending φ25mm Nickel-plated surface, heat-treated connectors | 1 set |

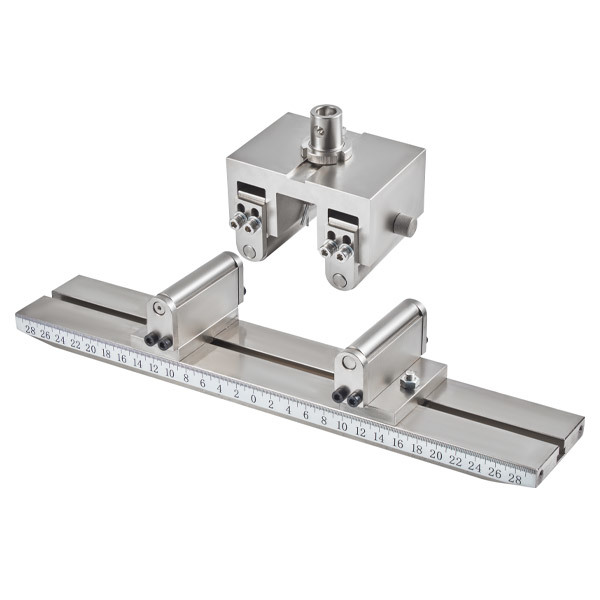

| Stone bending attachment | GB/T 9966.2 Figure 2, JC/T 2087 Figure 2 Three-point bending, φ25mm, nickel-plated surface, heat-treated connectors | 1 set |

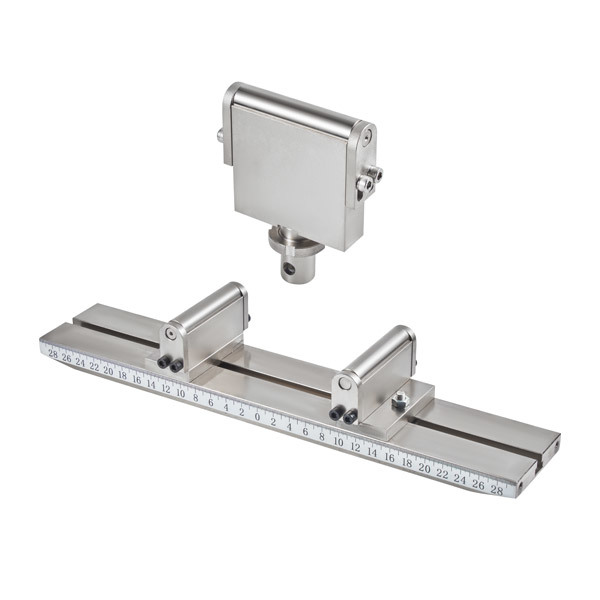

| Tile bending attachment | GB/T 36584, GB/T 21149, GB/T 30100, φ25mm, nickel-plated surface, heat-treated connectors | 1 set |
| Tile anti-bending attachment | JC/T 746, GB/T 30100, φ20mm Nickel-plated surface, heat-treated connectors | 1 set |

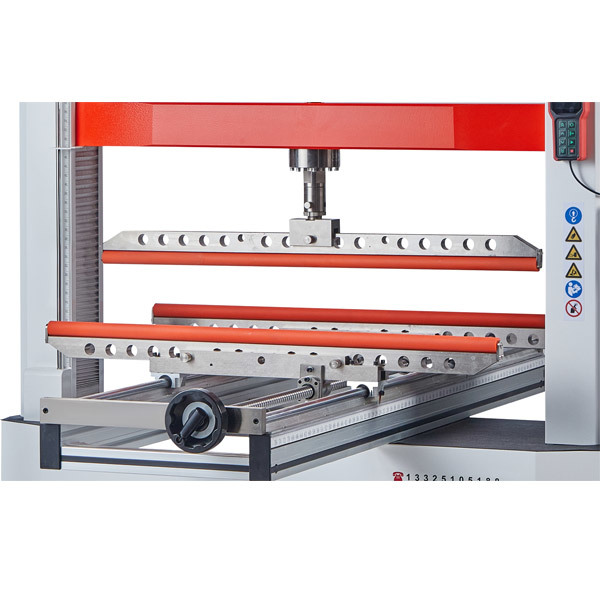

| Gypsum board fracture load tester, attachment | JC/T 799, JC/T 997, specimen size 600*600mm, nickel-plated surface, heat-treated connectors | 1 set |

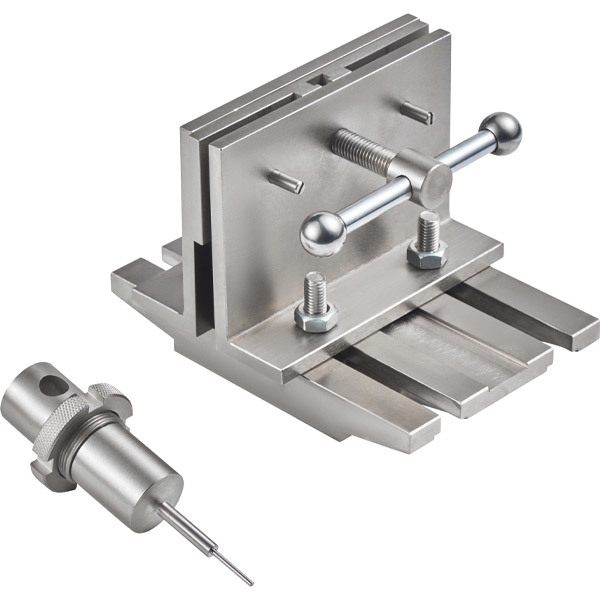

| Gypsum board hardness tester, attachment | GB/T 9775, with steel pin and lower fixing fixture, nickel-plated surface, heat-treated connectors | 1 set |
| Anti-flexure device for paving bricks and fly ash bricks | GB 28635, JC/T 239, GB/T 2542, JC/T 698 GB/T 5486 φ30*310mm, Nickel-plated, Heat-treated connectors | 1 set |
| Brick Block Permeable Pavement Panel Anti-Flexural Device | JG/T 376, GB/T 4111, GB/T 25993, JC/T 446, GB 28635, JC/T 698, JC/T 641, φ40*310mm, Nickel-plated, Heat-treated connectors | 1 set |

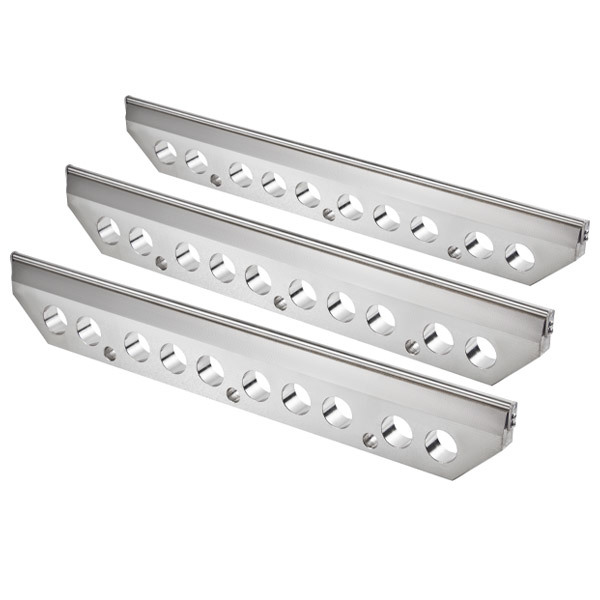

| Plates Bending Load Device Adapter | Flexural and Compression Test for Widened Models, Nickel-plated, Heat-treated connectors | 1 set |

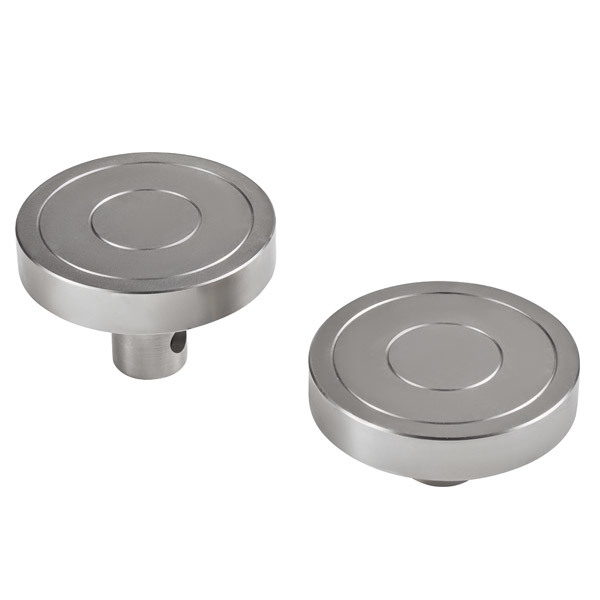

| Compression fixture | 100mm, heat-treated, nickel-plated surface | 1 set |
| Measurement and control cabinet | Two layers (upper and lower) (the cabinet can accommodate a computer, fixtures, etc.) | 1 unit |
| Computer | Brand | 1 unit |
| Technical information | Instruction manual, packing list, certificate of conformity | 1 set |
| Testing machine software | Chinese version/English version (optional) | 1 set |
Photos of fixtures (select as needed):
 |
 |
 |
 |
 |
| Tile anti-flexure clamp | Insulation integrated board anti-flexure clamp | Brick and tile anti-flexure clamp | Gypsum Board and Fiber Cement Board Flexural Jig | Gypsum Board End Hardness Jig |
 |
 |
 |
 |
 |

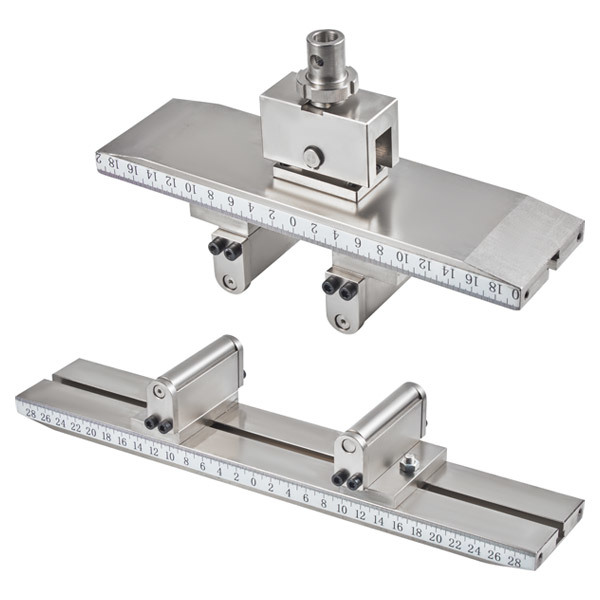

| Stone Bending Jig (Three-Point Method) | Stone Bending Jig (Four-Point Method) | Aerated Block Flexural Jig | Bond Strength Jig | Compression Platen (Specimen Compression Strength or Equipment Calibration) |
Design and R&D
The overall design of the universal testing machine includes systematic designs such as the mechanical framework, sensor selection, control system architecture, electrical system, software functions, and the overall appearance of the machine.
Host:
The core components of the mainframe, such as the force-bearing frame and the tooling fixtures, are precisely processed through procedures like machining centers, milling, planing, and grinding. Special parts undergo quenching and tempering treatment to ensure that the structural performance of each mainframe meets the design requirements.
Component Heat Treatment
Sheet Metal Processing:
Sheet metal processing: The sheet metal parts for the testing machine are processed through laser cutting, bending, stamping, welding, grinding, and powder coating procedures.
Quality inspection of processed parts:
The quality of each component directly affects the performance of the entire machine. Before use, each component undergoes a series of quality inspection procedures. Usually, its size, tolerance, hardness, surface treatment, etc. are inspected.
Workshop assembly:
The mainframe components, drive motor, transmission mechanism, sensors, tooling fixtures, sheet metal, etc. are strictly assembled in accordance with the company's assembly procedures, and the corresponding data are archived for easy future reference.
Debugging Phase:
Conduct various standard tests, including load accuracy, displacement accuracy, force stability, control precision, and other related calibrations.
Machine inspection and file archiving:
Overall equipment inspection: Cleanliness inspection, impact inspection, rust prevention inspection, safety label inspection, completeness of configuration, etc.
File archiving: After the overall equipment inspection is completed, record the equipment number, configuration information of tooling and fixtures, sensor configuration information, equipment parameter settings information, etc. Both paper and electronic versions are archived for easy future reference.
| Factory inspection procedures | |||
| serial number | item | explain | "√" or "/" |
| 1 | Fixture appearance | The surface is clean, free of bumps and scratches. | |
| 2 | Appearance of the mainframe | The entire surface of the machine is clean, the paint finish is free of scratches, and the crossbeam has peeling paint. | |
| 3 | Equipment label | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 4 | Host company logo sticker | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 5 | Computer monitoring and control cabinet company logo sticker | According to the order (strictly prohibiting any contamination during the pasting process) | |
| 6 | Workbench rubber pad | Placed on the mainframe | |
| 7 | Computer control cabinet rubber pad | Placed inside the control and measurement cabinet | |
| 8 | Data cable label | Motor wires, encoder wires, power wires, sensor wires, board card wires, etc. | |
| 9 | Data cable winding | The board card cables are tangled with the RS232 cables, and the motor cables are tangled with the encoder cables. | |
| 10 | Force sensor connector | Each S-type sensor is equipped with a connector. | |
| 11 | Pin specification and quantity | 20KN model: φ12, 3 pieces; with S-type sensor: φ12, 4 pieces | |
| 12 | Overall inspection of the box panel fastening screws | ||
| 13 | Overall inspection of the fastening screws of the distribution box | ||
| 14 | Cleaning inside of the distribution cabinet and computer cabinet | Strictly prohibit any remaining connection terminals or similar items. | |
| 15 | Computer and Accessories Configuration | Computer, monitor, keyboard, mouse, mouse pad | |
| 16 | Appearance of computer accessories | ||
| 17 | Packing list verification | ||
| 18 | Attached is the packaging. | Pack properly and protect from surface scratches | |
| 19 | Computer packaging | Clean and undamaged | |
| 20 | Mainframe packaging | Safety Loading and Unloading Sign | |
| Inspector (Signature): | |||
| Date： | |||
| Form filling instructions: Mark "√" for "Pass Inspection", mark "√" for "Pass Inspection of Accessories" on the packing list, leave blank if no such item exists, and submit it to the warehouse for filing after self-inspection is completed. | |||
